| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DTN |
| Minimum Order Quantity: | 1 |
| Price: | USD3000-USD5000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |

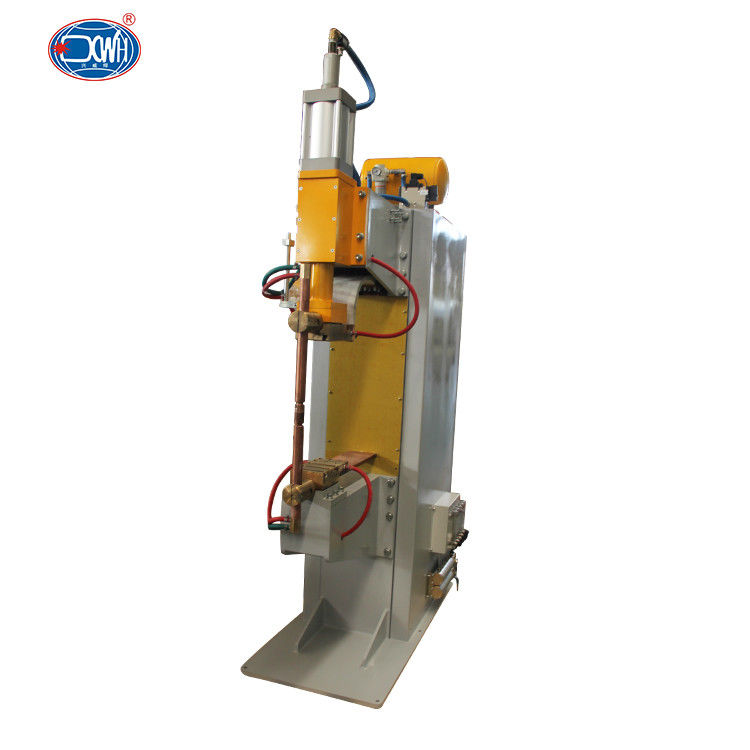

| Product Name: | Pneumatic AC Manul Spot Welder Long Arm Welding Machine | Welding Material: | Stainless Steel , Galvanized Steel , Iron |
|---|---|---|---|
| Throat: | Customized | Frequency: | 50HZ/60HZ |
| Rated Capacity: | 100KVA | Control System: | Microcomputer |
| Power: | 100 Kva | Usage: | Sheet Metal Welding |
| High Light: | 10000N manual spot welder,10000N stationary spot welding machine,AC380V stationary spot welding machine |
||
Product
Stationary type carbon steel resistance ac spot welding machine utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.
We are a professional carbon steel resistance ac spot welding machine manufacturer, the power of the stationary type carbon steel resistance AC spot welding machine and 50k carbon steel ac spot welding machine that we produce is from 25KVA to 800KVA. It can be used to weld 10mm of iron and metals like stainless steel. Low cost 50k ac spot welding machine applicable to all kinds of hardware.
|
MODEL
Item |
Unit
|
DN-40
|
DN-63
|
D(T)N-80
|
D(T)N-100
|
D(T)N-125
|
D(T)N-160
|
D(T)N-200
|
|
Rated power At 50%
|
KVA
|
40
|
63
|
80
|
100
|
125
|
160
|
200
|
|
Rated primary power
|
V
|
380
|
380
|
380
|
380
|
380
|
380
|
380
|
|
Secondary Voltage
|
V
|
5.2
|
6.7
|
7.9
|
8.3
|
8.6
|
9.1
|
10.6
|
|
Rated frequency
|
HZ
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
|
Max.Short Circuit Current
|
KA
|
14
|
15
|
16
|
18
|
20
|
28
|
34
|
|
Max. weld power
|
KVA
|
62
|
86
|
170
|
280
|
300
|
330
|
410
|
|
Throat
|
MM
|
500
|
500
|
630
|
630
|
630
|
630
|
630
|
|
Max.Froce at electrodes
|
N
|
6000
|
6000
|
10000
|
10000
|
10000
|
12000
|
12000
|
|
Working stroke
|
MM
|
20
|
20
|
30
|
40
|
40
|
50
|
50
|
|
Cooling Water Consumpion 2.5bar
|
L/min
|
6
|
6
|
8
|
8
|
8
|
10
|
10
|
|
Electrodes tlp
|
MM
|
Φ13*45
|
Φ13*45
|
Φ16*45
|
Φ16*45
|
Φ16*45
|
Φ20*45
|
Φ20*45
|
|
Arms
|
MM
|
Φ50*150
|
Φ50*150
|
Φ80*220
|
Φ80*220
|
Φ80*220
|
Φ80*220
|
Φ80*220
|
|
Projection Clamping Plate
|
MM
|
125*125
|
125*125
|
200*200
|
200*200
|
200*200
|
200*200
|
200*200
|
|
Max.Welding Capaciry
|
MM
|
2.5+2.5
|
3+3
|
4+4
|
4.5+4.5
|
5+5
|
5+5
|
6+6
|
