| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE, ISO |
| Model Number: | DNB |
| Minimum Order Quantity: | 1 |
| Price: | USD5000-USD8000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |

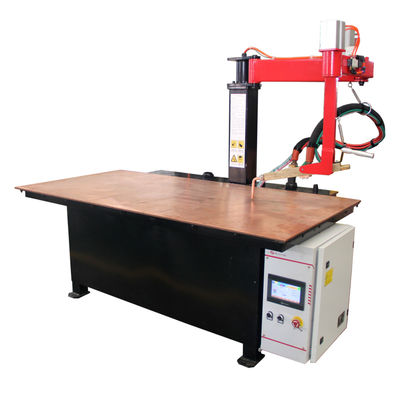

| Product Name: | 130KVA Resistance C Type Crank Arm Table Spot Welding Machine | Voltage: | 220V/380V/415V/440V |
|---|---|---|---|
| Frequency: | 50HZ/60HZ | Table: | Customized |
| Dimensions: | Customized | Rated Duty Cycle: | 50% |
| Max. Welding Thickness: | 3mm+3mm | Weight: | 800kg |
| High Light: | 130KVA resistance spot welding equipment,3500N resistance spot welding equipment,3500N table top spot welding machine |
||
|
Models Item
|
DN(B)-60
|
DN(B)-80
|
DN(B)-100
|
DN2-130
|
|
Power at 50% KVA
|
60
|
80
|
100
|
130
|
|
Maximum short circuit current KA
|
10
|
12
|
14
|
14
|
|
Secondary unload voltage V
|
8.9
|
8.9
|
8.9
|
8.9
|
|
Voltage at 50Hz/60Hz V
|
3φ380
|
3φ380
|
3φ380
|
3φ380
|
|
Distance between the arms mm
|
120-280
|
120-280
|
120-280
|
100-300
|
|
Max. strength at electrodes N
|
3500
|
3500
|
3500
|
3500
|
|
Working stroke mm
|
15-45
|
15-45
|
15-45
|
15-25
|
|
Max. stroke mm
|
50-120
|
50-120
|
50-120
|
60/100/140
|
|
Arm length mm
|
240-500
|
240-600
|
240-600
|
200-500
|
|
Compressed Air supply MPa
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Max.thickness of mild steel sheet with min. length s arm mm
|
3+3
|
4+4
|
5+5
|
5+5
|
|
With 500mm arms mm
|
2+2
|
3+3
|
3+3
|
3+3
|
|
With maximum length arms mm
|
1.2+2
|
2+2
|
2.0+2.0
|
2.0+2.0
|
|
Cross wire maximum mm
|
14+14
|
16+16
|
20+20
|
20+20
|
|
Cooling water pressure drop MPa
|
0.05
|
0.05
|
0.05
|
0.05
|
|
Cooling water flow L/min
|
8
|
8
|
8
|
8
|
