| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | XW |
| Minimum Order Quantity: | 5 |
| Price: | USD300-USD350 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets/month |
| Product Name: | Kickless Cable | Application: | Industrial Welding |
|---|---|---|---|
| Usage: | Welding Accessroies | Conductor Material: | Red Copper |
| Standard Diameter: | 300mm²/400mm² | Standard Length: | 2m-3.5m |
| Feature: | High Temperature Resistance/High Insulation | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | Certification: | CE, ISO |
| High Light: | steel automatic seam welding machine,4.3m/min automatic seam welding machine |
||

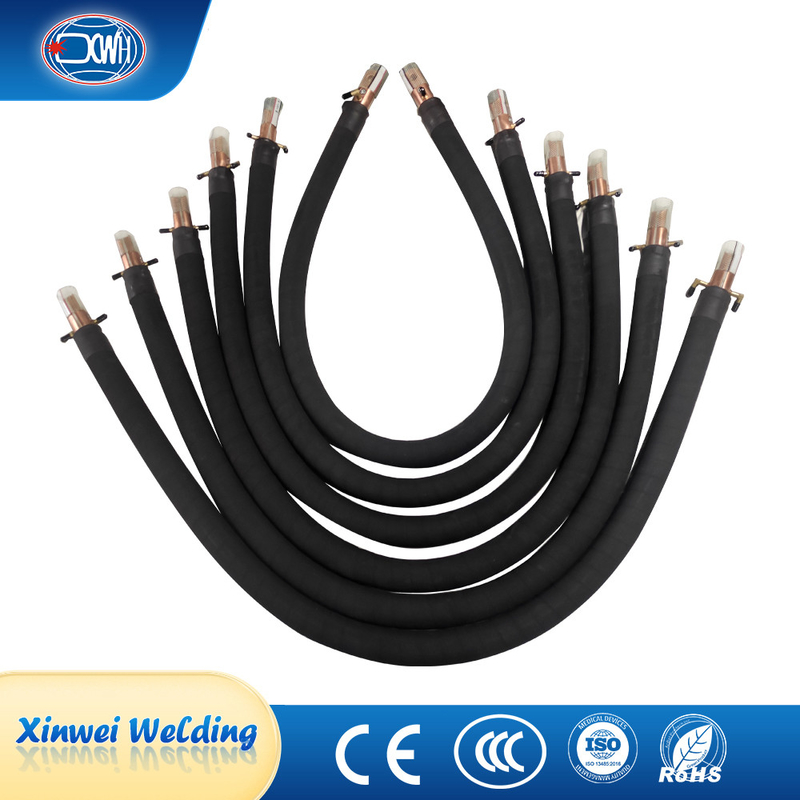

Water Cooled Copper Cables Kickless Cable For Suspension Spot Welding Machine Gun
Parameter
| Item Specifiction | 300mm² | 400mm² | Note | |
| Impedance | 2.0M | 480±15μΩ | 358±15μΩ | |
| 2.4M | 593±15μΩ | 445±15μΩ | ||
| Dc impedance value | 2.0M | 475μΩ | 355μΩ | |
| 2.4M | 587μΩ | 440μΩ | ||
| Resistance | 2.0M | 78μΩ | 74μΩ | Calculated Value |
| 2.4M | 82μΩ | 88μΩ | ||
| Power | =0.99 | =0.99 | ||
| Cooling water capacity | 7.0L/MIN | 7.0L/MIN | Pressure Loss of 0.7KG/cm | |
| Temperature rise characteristic | 2.0M | 45℃/5900A | 45℃/6800A | |
| 2.4M | 45℃/5400A | 45℃/6200A | ||
| Weight | 2.0M | 10.4KG | 13.2KG | Average Value |
| 2.4M | 12.2KG | 15.3KG | ||
Features
1. High-purity red copper hinge cables, having higher conductivity and lowering impedance between the transformer output and the welding gun
2. Excellent rubber sleeves and plum blossom rubber cores, having good pressure resistance, heat resistance, wear resistance, and bending performance
3. High resistance to repeating kicks and bending caused by electro-magnetic force induced by welding current and welding operation, and accordingly long life and good economy.
4. Minimal water pressure drop for excellent cooling effect
5. Convenient cable replacement and minimal downtime
Cross Section 300mm²
Cross Section 400mm²
Besides standard models, we can customized according to your requirements. More details, please contact!
Raw Materials: Pure Red Copper
Application
