M4 220V 0.4MPa Square Nut Feeder Machine CE Certification

M4 220V 0.4MPa Square Nut Feeder Machine CE Certification

Brand Name: XWH
Model Number: XW
MOQ: 1
Price: $1,000.00 - $5,000.00
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Customized Machinery M4/M8/M12 Nut Feeder
Size:
M4-M12, 7/16
Voltage:
220V
Core Components:
PLC, Motor
Bowl Size:
260mm, 350mm
Main Function:
Automatic Form
Usage:
Auto Feeding Nuts And Bolts
Air Pressure:
0.25-0.4MPa
Packaging Details:
Wooden Case
Supply Ability:
1000 sets/month
Highlight:

M4 nut feeder machine

,

0.4MPa nut feeder machine

Product Description

Customized Machinery M4/M8/M12 Nut Feeder





Power supply
AC220V, 50Hz / 60Hz
Max 250 - 400VA
Nut shapes
Square, round. Hexagon, T, dome, with cover, with rib, collar etc.
Air pressure
0.25 - 0.4MPa
Sizes
M4 - M12, 7/16
Bowl size
φ260mm, φ350mm
Hopper capacity
9L (10,000 pcs for M6 nut)
Supply capacity
40 - 60pcs/min
Supply chute length
2m
Angle
0° - 90°
 Weight
50kg
M4 220V 0.4MPa Square Nut Feeder Machine CE Certification 0

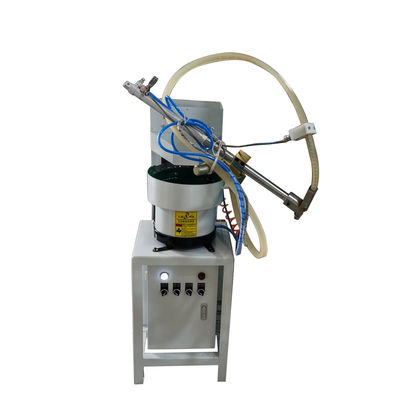

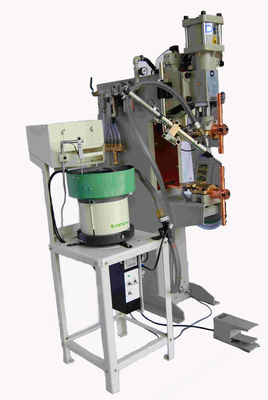

Nut feeder
This nut feeder system is used for nut supply to the welding equipment. In order to improve productivity and prevent security
risks, it can conveyor the nuts quickly and accurately , which is a good solution for manual operate. Just wire nuts conveyor to
the welding controllers, its working is fast and safe, which has been widely used in many of the automobile industry.
Detailed Images
M4 220V 0.4MPa Square Nut Feeder Machine CE Certification 1
M4 220V 0.4MPa Square Nut Feeder Machine CE Certification 2
M4 220V 0.4MPa Square Nut Feeder Machine CE Certification 3
