| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 Set |
| Price: | $3,000.00-$5,000.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Week |

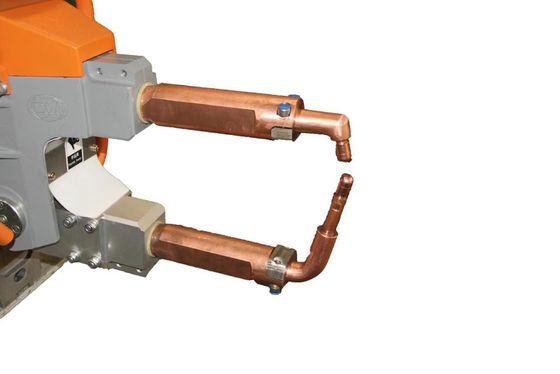

| Product Name: | X Type Gun/ Portable Spot Welding Machine For Car Body | Machine Type: | Auto Repair Tools |
|---|---|---|---|
| Rated Capacity: | 45KVA | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maint |
| Weight (KG): | 60 KG | Max. Welding Thickness: | 3.5+3.5mm |
| Rated Duty Cycle: | 50% | Voltage: | 380V |
| Highlight: | 45KVA portable spot welding machine,portable spot welding machine 60Hz,45KVA car body spot welder |
||
Features
| Item/models | Unit | DN2-35X | DN2-35C | DN2-45X | DN2-45C | DN2-65X | DN2-65C |
| power at 50% | KVA | 35 | 35 | 45 | 45 | 65 | 65 |
| Maximum short circuit current | KVA | 15 | 15 | 16 | 16 | 46 | 46 |
| Secondary unload voltage | V | 5.7 | 5.7 | 6.3 | 6.3 | 8 | 8 |
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM |
120-280
|
100 | 120-330 | 100 | 160-430 | 100 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Arm length | MM | 240-600 | 200-500 | 300-800 | 200-500 | 400-1100 | 200-500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 12 | 12 | 12 | 12 | 12 | 12 |
Resistance welding is a type of welding method that uses resistance heat as the energy source, including electroslag welding that uses slag resistance heat as the energy source and resistance welding that uses solid resistance heat as the energy source.
Resistance welding is generally a welding method in which the workpiece is placed under a certain electrode pressure and the contact surface between the two workpieces is melted by the resistance heat generated when the current passes through the workpiece to realize the connection. Generally, a larger current is used. To prevent arcing on the contact surfaces and to forge the weld metal, pressure must always be applied during the welding process. When performing this type of resistance welding, the surface quality of the welded workpiece is of paramount importance for obtaining stable welding quality. Therefore, the contact surface between the electrode and the workpiece and between the workpiece and the workpiece must be cleaned before welding.
