| Product Name: | Capacitor Spot Welder | Application: | Welding Electronic Components |
|---|---|---|---|
| Capacitance: | 4500uf | Electrode Stroke: | 50mm |
| Input Heat: | 800J | Machine Type: | Machine Type |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Capacitor Discharge Spot Welding Machine,Storage Energy Capacitor Spot Welder,CE Capacitor Discharge Spot Welder |
||

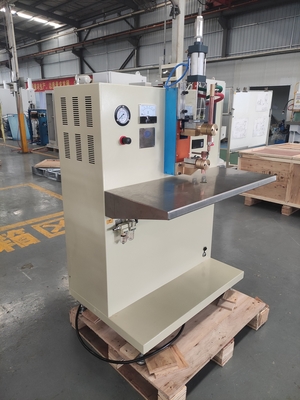

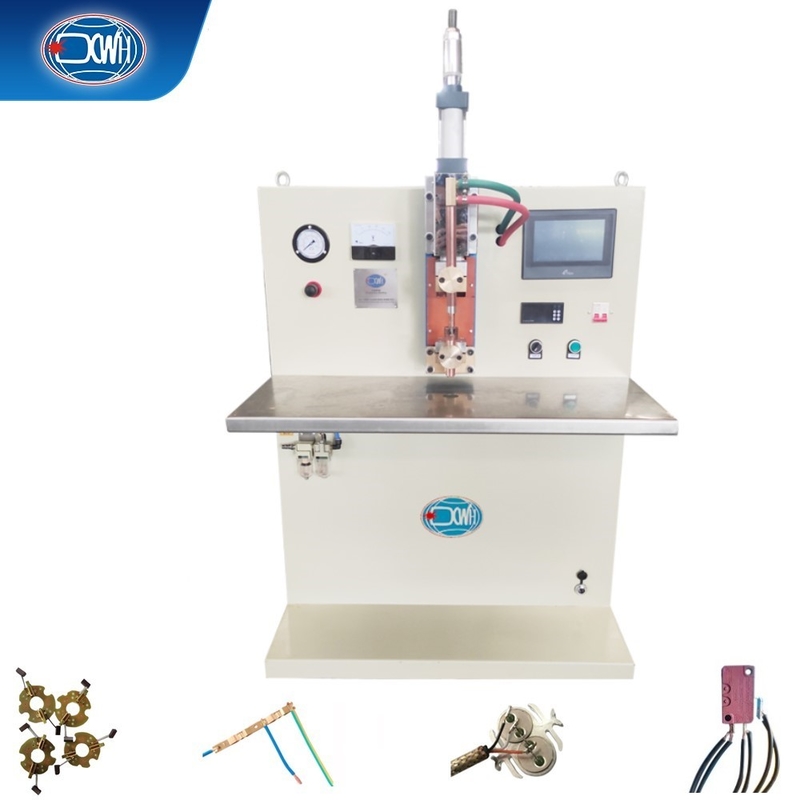

Spot Welder Storage Energy Capacitive Capacitor Discharge Spot Welding Machine
Product Introduction:
Capacitive energy storage point projection welding machine uses capacitors to store energy. When welding, the capacitors discharge instantaneously, and the released energy can melt and weld small areas of solder joints. Compared with other resistance welding methods such as AC spot welding machines, using it from the power grid has lower instantaneous power, balanced load in all phases, high power factor, and can provide concentrated energy to the welding area. It can obtain welded parts with good surface quality and small deformation, and can weld some difficult to weld colored metals with good thermal conductivity.
Advantages:
1. Fast charging and discharging circuit, stable voltage, high charging and discharging frequency.
2. The fast logic circuit can ensure that the welder will not discharge until the capacitor is charged to the preset voltage. (It can ensure that the capacitor does not discharge when the voltage is below the preset value during fast welding) so as to ensure the welding quality.
3. Digital regulator can adjust the voltage at both ends of the capacitor from 40V to 1V accuracy 400 v.
4. Accurate digital circuit can control the voltage fluctuation error within 0.5%.
Technical Parameters:
| Model | Input voltage | Capacitance | Energy Storage | Electrode Pressure | The Max. welding Ihickness | Weigh |
| DTN-500J | 220V | 4500μF | 500j | 1000N | 1+1MM | 200KG |
| DTN-800J | 220V | 8000μF | 800j | 3900N | 1.2+1.2MM | 450KG |
Details:
Easy to operate
Capacitive discharge welding, short time solder joints, small deformation, easy to operate.
High welding quality
Fully functional, good performance, stable voltage, good qualitative analysis and high welding quality.
Different electrodes
Scene Images:
Application:
