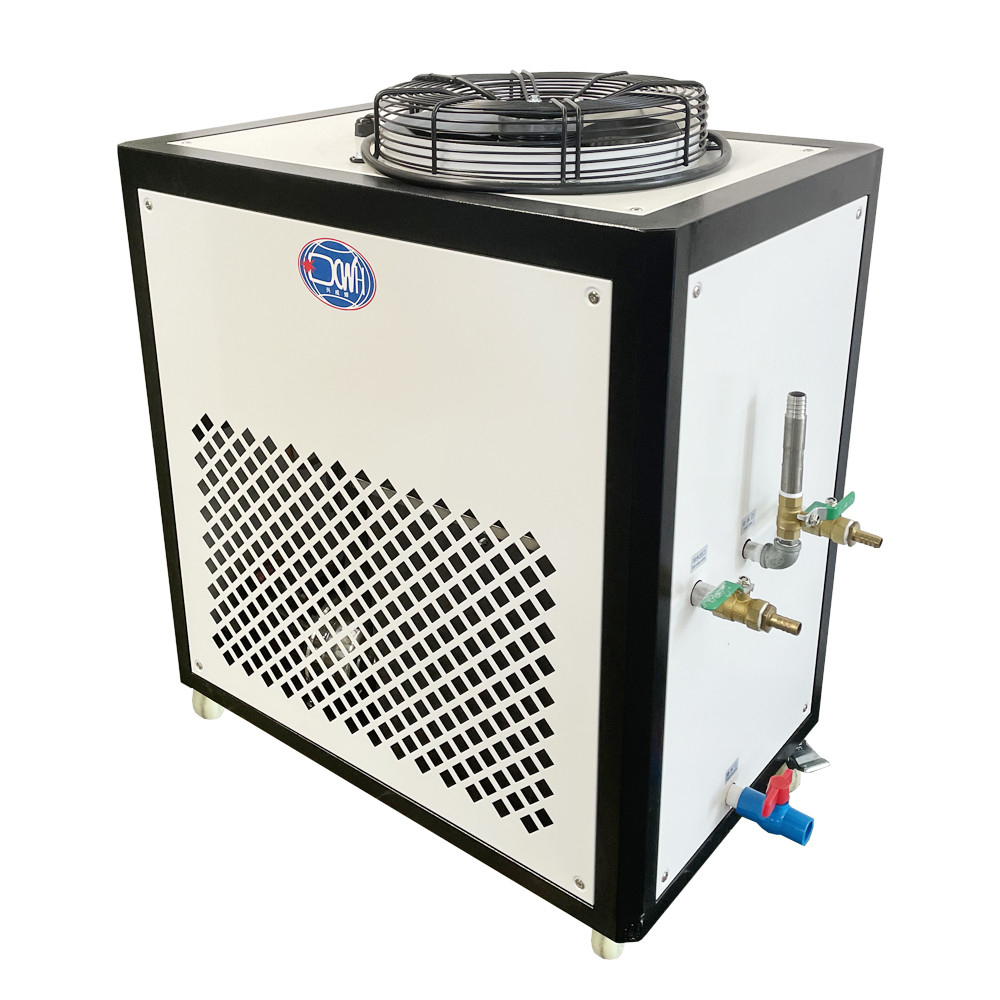

Ice Bath Cw 5000 Centrifugal Cold Industrial Water Chiller Water Cooled 5 Ton

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE, ISO
Model Number: XW-2HP, XW-3HP, XW-5HP
Minimum Order Quantity: 1
Price: USD1300-USD2000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Industrial Water Chiller Application: Industriy
MOQ: 1 Set Cooling Type: Air Cooled Condenser Chiller
Production Time: 15-20 Days Usage: Injection Molding Cooling Machine
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

Centrifugal Cold Industrial Water Chiller

,

5Ton Industrial Water Chiller

,

Ice Bath Cw 5000 Water Chiller


Product Description

Ice Bath Cw 5000 5 Ton Water Cooled Centrifugal Cold Industrial Water Chiller





Product Description



Industrial water chiller is mainly suitable for plastic and mechanical processing. It can accurately control the temperature of plastic’s forming mold to shorten the molding cycle and speed up the product shaping; this series uses the principle of cold and heat exchange for cooling, which can be cooled quickly and the temperature control is stable. And not affected by environmental factors, it is an indispensable configuration equipment in modern industry.





Technical Parameters



Item/Model XW-2HP XW-3HP XW-5HP
Total Power 1.9KW 2.625KW 4.485KW
Input Voltage 220V/3PH/60Hz 380V/3PH/50HZ 380V/5PH/50HZ
Cooling Capacity 4128KCAL/HR/4.8KW 7713KCAL/HR/9KW 12900KCAL/HR/15KW
cooling Fans Number 1 set 2 sets 2 sets
Tank Capacity 35L 67L 60L
Pump Flow Rate 100L(min) 100L(min) 50L/min
Temperature Control Range 5℃-35℃ 5℃-35℃ 5℃-35℃
Refrigerant R22 R22 R22
Weight 120KG 140KG 160KG
Dimension 850*520*1020mm 1230*500*1120mm 1400*570*1220mm





Features



1. High efficiency foil aluminum fin condenser.

2. Tank coil evaporator (copper tube).

3. Using Stainless steel water tank.

4. Complete protection functions (phase loss, reverse phase, over temperature, high and low pressure, overload).

5. Using high quality computer board, the temperature is accurate to ±1℃.

6. Using Germany Schneider AC contactor and phase sequence relay.

7. Using ALCO filters.

8. Using American YK306F pressure controller.





Solutions for Insufficient Refrigerant and Low Pressure



A. When the water temperature is above 5°C and the pressure of the low pressure gauge is lower than 2kg/cm2, it means that the refrigerant is insufficient. First, the leaking refrigerant should be repaired, and then the filter drier should be replaced to re-evacuate and refill with proper refrigerant.



B. When the leaking refrigerant is found to be immersed in water, please stop the operation of the freezer immediately, remove the water in the water tank as soon as possible, and notify the distributor/manufacturer to deal with and repair as soon as possible, so as to prevent the compressor from sucking water into the system and causing more serious damage.





Installation Diagram of Air-cooled Chiller

Ice Bath Cw 5000 Centrifugal Cold Industrial Water Chiller Water Cooled 5 Ton 0





Frequently Asked Questions


1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.



Ice Bath Cw 5000 Centrifugal Cold Industrial Water Chiller Water Cooled 5 Ton 1
Ice Bath Cw 5000 Centrifugal Cold Industrial Water Chiller Water Cooled 5 Ton 2
Ice Bath Cw 5000 Centrifugal Cold Industrial Water Chiller Water Cooled 5 Ton 3
Ice Bath Cw 5000 Centrifugal Cold Industrial Water Chiller Water Cooled 5 Ton 4

Ice Bath Cw 5000 Centrifugal Cold Industrial Water Chiller Water Cooled 5 Ton 5
