| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 Set |
| Price: | $6000 - $6500.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Week |
| Product Name: | Small Portable Welding Machine | Function: | Resistance Spot Welding |
|---|---|---|---|
| Machine Type: | Mobile Spot Welding Machine | Application: | Automotive Industry |
| Feature: | Easy Operation | Max. Welding Thickness: | 5+5 Mm |
| Rated Capacity: | 60KVA, 80KVA, 100KVA, | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | Certification: | Certification |
| Highlight: | Aluminum Mobile Portable Spot Welder,Industrial Mobile Portable Spot Welder,Certified Portable Spot Welding Machine |
||
Product Description

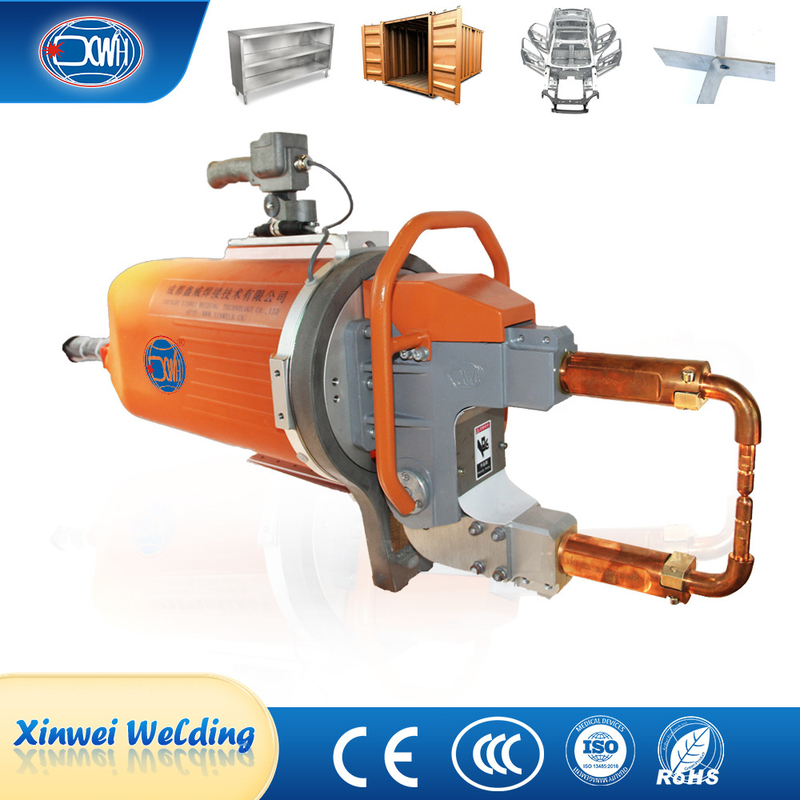

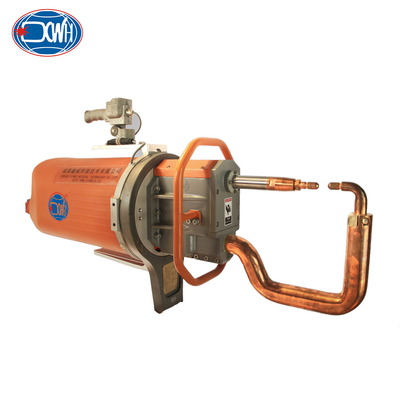

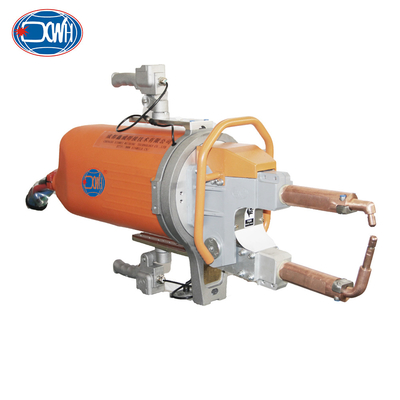

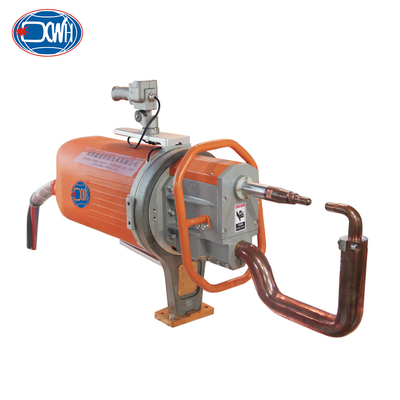

The portable spot welding machine adopts a modular design, integrating welding transformers, cylinders, solenoid valves, water and gas distributors, rotating rings and suspension rods, balance systems, and control handles and other related devices into one. The main electrical circuit adopts a three-phase AC 380V/50HZ input, which passes through the controllable silicon in the controller and then to the transformer. After being reduced in voltage by the transformer, the secondary output is low voltage (4.75-10V) and large current (12-20KA) between the electrodes. The controller adjusts the conduction angle of the controllable silicon to adjust the output current of the transformer to meet the requirements of welding specifications.
| Item/models | Unit | DN2-60X | DN2-60C | DN2-80X | DN2-80C | DN2-100X | DN2-100C |
| power at 50 | KVA | 60 | 60 | 80 | 80 | 100 | 100 |
| Maximum short circuit current | KVA | 10 | 10 | 12 | 12 | 14 | 14 |
| Secondary unload voltage | V | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
| Voltage at 50Hz/60Hz | V | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 |
| Distance between the arms | MM |
120-280 |
100-300 | 120-128 | 100-300 | 120-280 | 100-300 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Max. arm length | MM | 500 | 500 | 600 | 500 | 600 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 8 | 8 | 8 | 8 | 8 | 8 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1. Three-phase power input, high operating frequency, low transformer loss, and significant energy saving effect.
2. The transformer can be up to 300kva, the transformer secondary tube brand is ABB.
3. Can weld high-strength plate, aluminum, galvanized metal and other materials, having a good welding effect.
4. More reliable process: DC welding is better for most metals that apply resistance welding.
5. Improve power factor and reduce production costs.
6. Energy saving: Compared to using low frequency, it can reduce the consumption of electric energy. A transformer with the same weight can output more energy, which can be easily used with large automatic welding tongs. Suitable for welding thick workpieces and highly conductive metals. Such as aluminum and all galvanized steel plates. Generally speaking, small and lightweight systems can accelerate movement and shorten work cycles, making them the best matching solution for welding machines/robots.
Application:
The portable spot welding machine is widely used in the automobile, motorcycle, aviation, sheet metal structural components, medical equipment, light industrial machinery, household appliances and other fields. And it can welding carbon steel sheet, coated steel sheet, stainless steel sheet, aluminum sheet metal.
General Structures
Mutiple Electrode Arms
Use & Installation
Product Application
