| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 Set |
| Price: | $6000 - $6500.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Week |
| Product Name: | Portable Spot Welding Machine | Function: | Portable Welder |
|---|---|---|---|
| Machine Type: | Resistance Welding Machine | Application: | Car Body Industry |
| Type: | Manual Handheld Welder | Max. Welding Thickness: | 5+5 Mm |
| Rated Capacity: | 60KVA, 80KVA, 100KVA | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | Certification: | Certification |
| Highlight: | 80KVA Portable Welding Machine,Ac Manual Handheld Welder,Auto Ac Portable Welding Machine |
||
Product Description

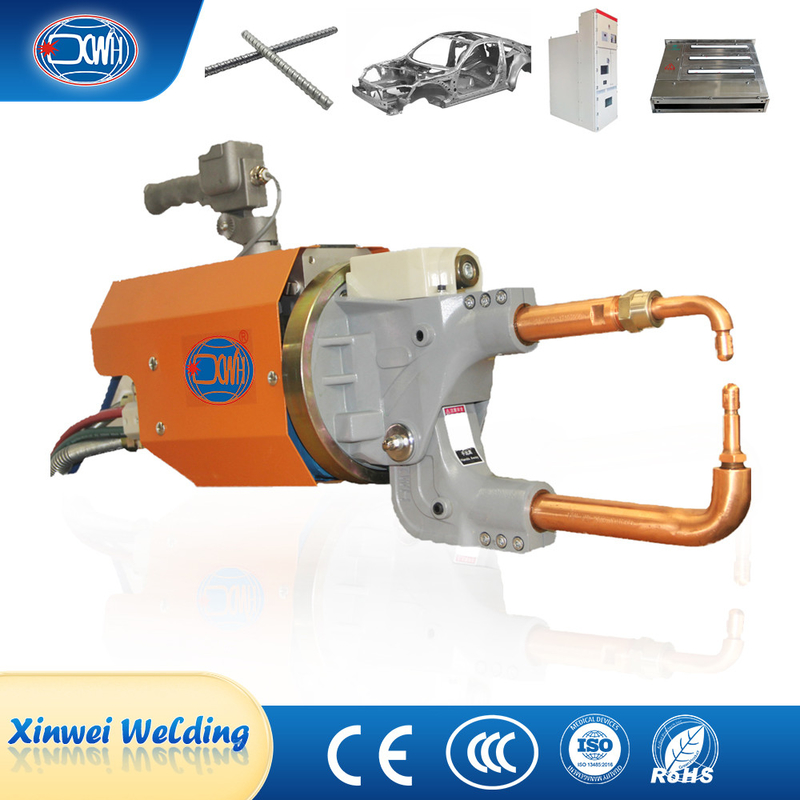

The portable spot welding machine uses the resistance heat generated by the current flowing through the weldment as a heat source for welding under pressure. Mainly used for spot welding of low-carbon steel parts of thin plate structures.
| Item/models | Unit | DN2-31X | DN2-31C | DN2-40X | DN2-40C | DN2-63X | DN2-63C |
| power at 50% | KVA | 31 | 31 | 40 | 40 | 63 | 63 |
| Maximum short circuit current | KVA | 14 | 14 | 18 | 18 | 20 | 20 |
| Secondary unload voltage | V | 5.58 | 5.58 | 6.8 | 6.8 | 7.9 | 7.9 |
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM |
168-288 |
100 | 168-328 | 100 | 168-428 | 100 |
| Max.strength at electrodes | N | 3000 | 3000 | 3500 | 3000 | 3500 | 3000 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke of cylinder | MM | 70 | 50 | 100 | 50 | 100 | 50 |
| Max. arm length | MM | 750 | 350 | 1000 | 450 | 1100 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 |
| Cooling water flow | L/MIN | 4 | 4 | 4 | 4 | 4 | 4 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1. Convenient operation and power-saving.
2. The cylinder is a customized pressurized cylinder, the brand is (SMC).
3. The portable spot welders can rotate 360°as the turntable is configured with bearings.
4. Customized welding tongs, the longest welding arm is 1300mm and the shortest is 220mm.
5. Different specifications can be set (workpieces with different thicknesses can be welded) welding thickness 0.3mm+0.3mm∽5+5mm.
Application:
The portable spot welding machine is widely used in automobile manufacturing, maintenance, household appliances, doors and Windows, agriculture, construction steel and other metal manufacturing industries.
General Structures

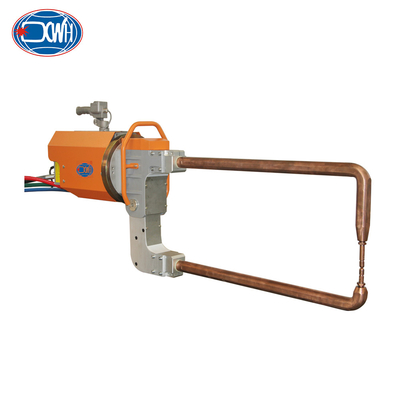

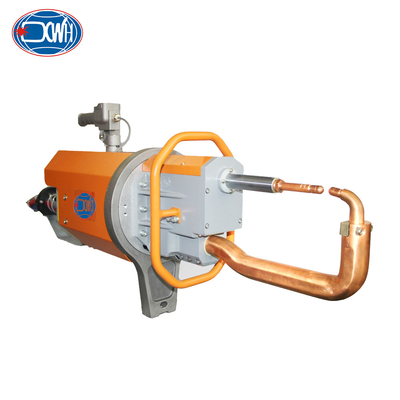

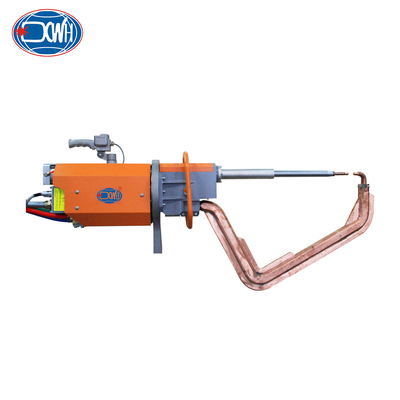

Mutiple Electrode Arms
Power Frequency Controller
1. The welding process achieves closed-loop control, ensuring constant welding current in the event of voltage fluctuations in the power grid and changes in welding load.
2. The control methods include constant current mode and constant voltage mode.
3. During the welding cycle, the duration of various processes such as pressure delay, pressure increase, welding, cooling, holding, and rest is set by the program without error.
4. It has single point and continuous point welding functions, and has three pulse (preheating, welding, tempering) functions for double-sided galvanized plate welding.
Use & Installation
Images
