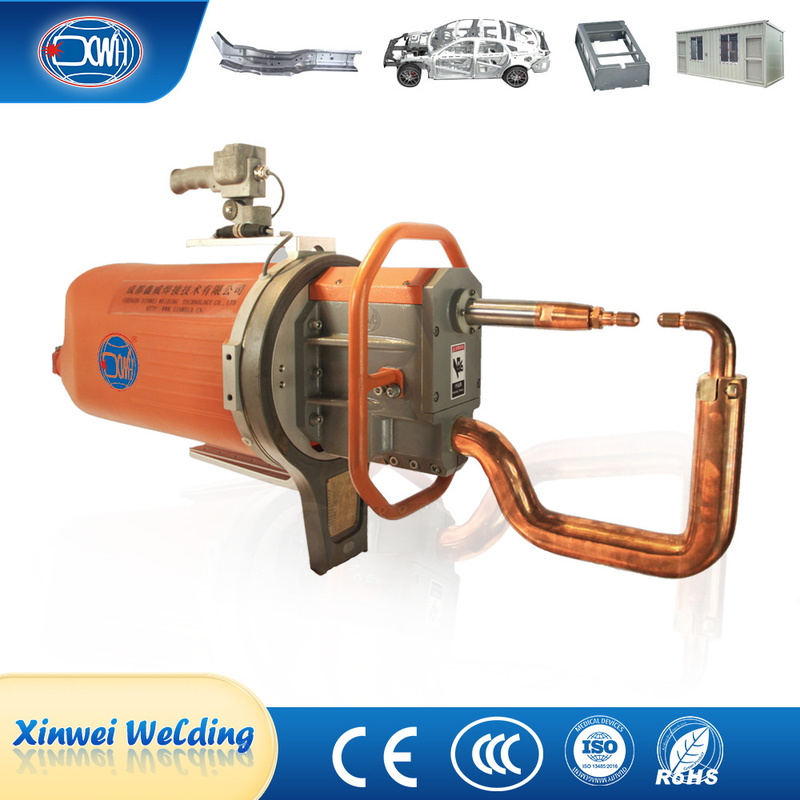

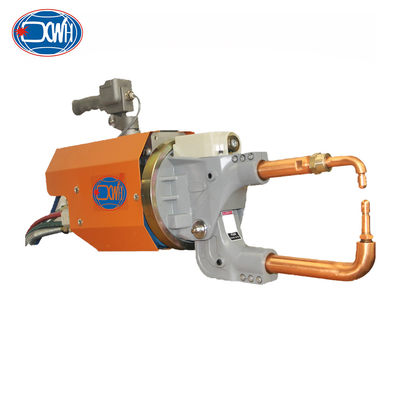

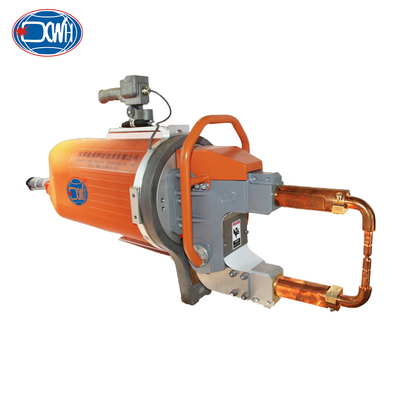

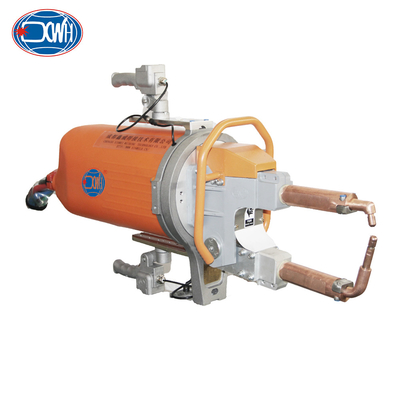

| Product Name: | Portable Welding Gun | Function: | Resistance Spot Welding Machine |
|---|---|---|---|
| Machine Type: | Handheld Welder | Application: | Automotive Industry |
| Feature: | High Efficiency | Max. Welding Thickness: | 5+5 Mm |
| Rated Capacity: | 60KVA, 80KVA, 100KVA | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | Certification: | Certification |
| Highlight: | Steel Portable Spot Welding Machine,Resistance Handheld Spot Welding Machine,Aluminum Portable Spot Welders |
||
Product Description
The portable spot welding machine adopts a modular design, integrating welding transformers, cylinders, solenoid valves, water and gas distributors, rotating rings and suspension rods, balance systems, and control handles and other related devices into one. The main electrical circuit adopts a three-phase AC 380V/50HZ input, which passes through the controllable silicon in the controller and then to the transformer. After being reduced in voltage by the transformer, the secondary output is low voltage (4.75-10V) and large current (12-20KA) between the electrodes. The controller adjusts the conduction angle of the controllable silicon to adjust the output current of the transformer to meet the requirements of welding specifications.
| Item/models | Unit | DN2-60X | DN2-60C | DN2-80X | DN2-80C | DN2-100X | DN2-100C |
| power at 50 | KVA | 60 | 60 | 80 | 80 | 100 | 100 |
| Maximum short circuit current | KVA | 10 | 10 | 12 | 12 | 14 | 14 |
| Secondary unload voltage | V | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
| Voltage at 50Hz/60Hz | V | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 |
| Distance between the arms | MM |
120-280 |
100-300 | 120-128 | 100-300 | 120-280 | 100-300 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Max. arm length | MM | 500 | 500 | 600 | 500 | 600 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 8 | 8 | 8 | 8 | 8 | 8 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1) The spatter in the welding process is greatly reduced, improving the welding quality and purifying the welding environment.
2) Integrated modular design, the welding control system has stable performance, high reliability, and low welding failure rate.
3) The transformer adopts medium frequency type, which meets international standards. The product technology is advanced, with F-level insulation and IP65 high protection level. Equipped with overheating protection function, high efficiency, low magnetic loss, high output power, and high grid utilization rate.
4) Adopting a proportional valve to control the pressure of the welding clamp cylinder, ensuring precise control.
5) Widely used in welding high-strength plate, aluminum, galvanized metal and other metal materials.
Application:
The portable spot welding machine is widely used in automobile manufacturing, maintenance, household appliances, doors and Windows, agriculture, construction steel and other metal manufacturing industries.
