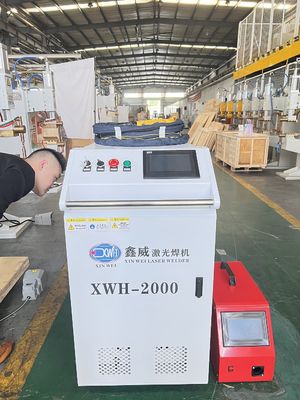

Manual Cnc Portable Stainless Steel Fiber Laser Cutting Welding Machine Handheld

Manual Cnc Portable Stainless Steel Fiber Laser Cutting Welding Machine Handheld

Brand Name: XWH
Model Number: XW-1000W, XW-1500W, XW-2000W, XW-3000W
MOQ: 1
Price: USD3100-USD6000
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Handheld Laser Beam Welder
Welding Material:
Aluminum, Stainless Steel, Metal Steel
Feature:
Stable Welding Current
Application:
Laser Welding And Cutting Machine
Cooling System:
Build-In Water Cooling
Function:
Laser Welding, Cutting And Rusts Removal
After Warranty Service:
Video Technical Support, Online Support And Spare Parts
After-sales Service Provided:
Free Spare Parts, Field Installation, Commissioning And Training
Laser Type:
Fiber Laser Source
Warranty:
One Year
Packaging Details:
Wooden Case
Supply Ability:
500 sets/month
Highlight:

Cnc Fiber Laser Welding Machine

,

SS Fiber Laser Welding Machine

,

ISO Handheld Laser Welder Machine

Product Description

China Manual Best Cnc Stainless Steel Hand Handheld Fiber Laser Welding Machine





Product Introduction:

Portable laser welding machine is a new type of welding, is also one of the important aspects of the application of laser material processing technology. Laser welding is mainly for the welding of thin-walled materials and precision parts. The welding process belongs to the heat conduction type, that is, laser radiation heats workpiece surface and surface heat diffuses to the interior through heat conduction. By controlling the parameters of laser pulse width, energy, peak power and repetition rate, the workpiece is melted to form a specific molten pool. The laser welder is not only for laser welding, but also for rusts removal and cutting.





 Technical Parameters:



Items/ Models XW-1000W XW-1500W XW-2000W XW-3000W
Laser Power 1000W 1500 2000W 3000W
Laser Length Customized Customized Customized Customized
Total Power ≤6KW ≤7KW ≤9KW ≤9.5KW
Conduction Types Optical Fiber Optical Fiber Optical Fiber Optical Fiber
Output Mode Standard QBH Standard QBH Standard QBH Standard QBH
Laser Line 1080±nm 1080±nm 1080±nm 1080±nm
Power Supply 220V±10% AC 220V±10% AC 220V±10% AC 380V±10% AC
Working Humidity <70% No Condensation <70% No Condensation <70% No Condensation <70% No Condensation
Working Temperature -10℃-45℃ -10℃-45℃ -10℃-45℃ -10℃-45℃
Cooling System Equipped with water chiller Equipped with water chiller Equipped with water chiller Equipped with water chiller
Welding speed 0.7-2.0m/min 0.7-2.0m/min 0.7-2.0m/min 0.7-2.0m/min
Operation System Hand-held Welding Hand-held Welding Hand-held Welding Hand-held Welding
Weight ≤185KG ≤185KG ≤185KG ≤185KG
Power Source 380V/50Hz/40A 380V/50Hz 380V/50Hz 380V/50Hz
homing position Red light indicator Red light indicator Red light indicator Red light indicator
Dimension 1000*600*1200mm 1000*600*1200mm 1000*600*1200mm 1000*600*1200mm






Features:



1. Handheld welding gun head: portable and flexible, flexibly welding at any angle.



2. Full automatic wire feeder: speed is adjustable and welding wire is compatible (0.8mm/1.0mm 1.2mm/1.6mm).



3. Touch screen: clear functions, easy to operate.



4. Constant temperature water chiller: built-in water chiller to avoid wire bondage, with good dust-proof and anti condensation effect.



5. It is mainly used for the welding of aluminum sheet, iron sheet, stainless steel sheet, copper sheet and other metal sheets of the same material, as well as the mixed welding of aluminum copper, stainless steel copper and other materials.







Product Show:



Manual Cnc Portable Stainless Steel Fiber Laser Cutting Welding Machine Handheld 0

Manual Cnc Portable Stainless Steel Fiber Laser Cutting Welding Machine Handheld 1







Details:



Manual Cnc Portable Stainless Steel Fiber Laser Cutting Welding Machine Handheld 2

Handheld welding gun head





Manual Cnc Portable Stainless Steel Fiber Laser Cutting Welding Machine Handheld 3

Full automatic wire feeder





Manual Cnc Portable Stainless Steel Fiber Laser Cutting Welding Machine Handheld 4

Touch screen





Manual Cnc Portable Stainless Steel Fiber Laser Cutting Welding Machine Handheld 5

Constant temperature water chiller







Environmental Requirements:



Vibration prevention: because the optical components of the laser welding machine are very accurate, if there is vibration at the working site of the laser welding machine, it is easy to cause the alignment of the optical equipment, resulting in weak laser output, reduced spot quality, or even no laser. Therefore, in the working site of the laser equipment, please pay special attention to the installation position of the equipment, not near the roadside, bridge, or near the drilling machine, milling machine, lathe planer and other heavy processing equipment, If necessary, in such an environment, it is necessary to take adequate anti vibration measures to reduce vibration.






Application:



Manual Cnc Portable Stainless Steel Fiber Laser Cutting Welding Machine Handheld 6
Frequently Asked Questions:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
