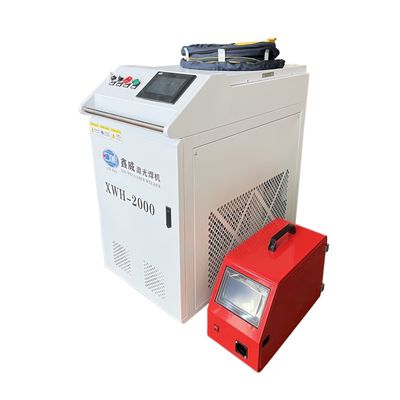

Coherent Manual Cutting Steel Handheld Fibre Laser Beam Welder 1000w For Metal

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE, ISO
Model Number: XW-1000W, XW-1500W, XW-2000W, XW-3000W
Minimum Order Quantity: 1
Price: USD3500-USD7500
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Handheld Fiber Laser Welding Machine Welding Material: Aluminum, Stainless Steel, Metal Steel
MOQ: 1 Set Application: Fiber Laser Welding, Cutting And Rusts Removal
Cooling System: Build-In Water Cooling Function: Laser Welding, Cutting And Rusts Removal
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

Handheld Fibre Laser Beam Welder

,

Coherent Fibre Laser Beam Welder

,

1000w Laser Welder Machine


Product Description



Coherent Manual Cutting Steel 1000w Handheld Fibre Laser Beam Welder For Metal



Product Description

Portable laser welding machine is a new type of welding, is also one of the important aspects of the application of laser material processing technology. Laser welding is mainly for the welding of thin-walled materials and precision parts. The welding process belongs to the heat conduction type, that is, laser radiation heats workpiece surface and surface heat diffuses to the interior through heat conduction. By controlling the parameters of laser pulse width, energy, peak power and repetition rate, the workpiece is melted to form a specific molten pool. The laser welder is not only for laser welding, but also for rusts removal and cutting.



 Technical Parameters



Items/ Models XW-1000W XW-1500W XW-2000W XW-3000W
Laser Power 1000W 1500 2000W 3000W
Laser Length Customized Customized Customized Customized
Total Power ≤6KW ≤7KW ≤9KW ≤9.5KW
Conduction Types Optical Fiber Optical Fiber Optical Fiber Optical Fiber
Output Mode Standard QBH Standard QBH Standard QBH Standard QBH
Laser Line 1080±nm 1080±nm 1080±nm 1080±nm
Power Supply 220V±10% AC 220V±10% AC 220V±10% AC 380V±10% AC
Working Humidity <70% No Condensation <70% No Condensation <70% No Condensation <70% No Condensation
Working Temperature -10℃-45℃ -10℃-45℃ -10℃-45℃ -10℃-45℃
Cooling System Equipped with water chiller Equipped with water chiller Equipped with water chiller Equipped with water chiller
Welding speed 0.7-2.0m/min 0.7-2.0m/min 0.7-2.0m/min 0.7-2.0m/min
Operation System Hand-held Welding Hand-held Welding Hand-held Welding Hand-held Welding
Weight ≤185KG ≤185KG ≤185KG ≤185KG
Power Source 380V/50Hz/40A 380V/50Hz 380V/50Hz 380V/50Hz
homing position Red light indicator Red light indicator Red light indicator Red light indicator
Dimension 1000*600*1200mm 1000*600*1200mm 1000*600*1200mm 1000*600*1200mm




Advantages

1. The welded joint is beautiful and smooth.
2. The welding work surface is not distorted, the welding is firm, and there is no need for subsequent polishing procedures, which saves time and price.
3. Faster welds can be 2 to 10 times faster than conventional welds.

4. Easy to operate, no training required.

5. The welding joint is smooth and beautiful, which can save your time.

6. No distortion or welding marks on the work surface.

7. Laser welding less consumables, long service life. It's safer and greener.





Schematic Diagram of Product Structure



Coherent Manual Cutting Steel Handheld Fibre Laser Beam Welder 1000w For Metal 0





①Hand held welding joint                                                                             ②Consumable accessories kit

③Control Panel④Optical Master⑤Wire Feeder                                          ⑥Consumable accessories kit

⑦Emergency Stop Switch, Key Switch, Power Button                                 ⑧Conducting Wire




Details



Coherent Manual Cutting Steel Handheld Fibre Laser Beam Welder 1000w For Metal 1



Coherent Manual Cutting Steel Handheld Fibre Laser Beam Welder 1000w For Metal 2



Coherent Manual Cutting Steel Handheld Fibre Laser Beam Welder 1000w For Metal 3



Coherent Manual Cutting Steel Handheld Fibre Laser Beam Welder 1000w For Metal 4





Environmental requirements:



Ambient temperature: 4 ° C – 32 ° C. When the equipment is running, the ambient temperature cannot exceed 32 ℃, because the power of the laser power supply is very high, and some power devices need to use up heat. However, excessive ambient temperature will lead to abnormal heat dissipation, which will lead to unstable operation of the entire system, or even damage. In winter, it is necessary to strictly prevent the cooling water from freezing, because the cavities of laser crystals, xenon lamps and spotlights are full of water, which will directly lead to the damage of these devices. In winter, for example, when not working for a long time, the cavity will be emptied. For example, before turning on the machine again, add water and turn on the power air switch. First, the main engine is not turned on. Only after the water machine has been empty for 10 minutes, can the water temperature return to above 4 ℃, and then turn on the main engine. (It is strongly requested that the equipment not be placed outdoors or used for freezing at low temperature, otherwise the equipment may be easily damaged).





Application



Coherent Manual Cutting Steel Handheld Fibre Laser Beam Welder 1000w For Metal 5

Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Coherent Manual Cutting Steel Handheld Fibre Laser Beam Welder 1000w For Metal 6
Coherent Manual Cutting Steel Handheld Fibre Laser Beam Welder 1000w For Metal 7
Coherent Manual Cutting Steel Handheld Fibre Laser Beam Welder 1000w For Metal 8
Coherent Manual Cutting Steel Handheld Fibre Laser Beam Welder 1000w For Metal 9

Coherent Manual Cutting Steel Handheld Fibre Laser Beam Welder 1000w For Metal 10
