| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | D(N)B--100，D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity: | 1 |
| Price: | USD7500-USD9500 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Auto Body Spot Welding Machine | Application: | Automotive Industry |
|---|---|---|---|
| Function: | Sheet Metal Welding | Machine Type: | Resistance Welding Machine |
| Feature: | Stationary Welding Machine | Welding Material: | Alloy Metal Aluminum Stainless Steel |
| Max. Welding Capacity: | 6+6mm | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | Certification: | CE |
| High Light: | Pneumatic Projection Stationary Spot Welder,Auto Stationary Spot Welding Machine,Metal Stationary Spot Welding Machine |
||

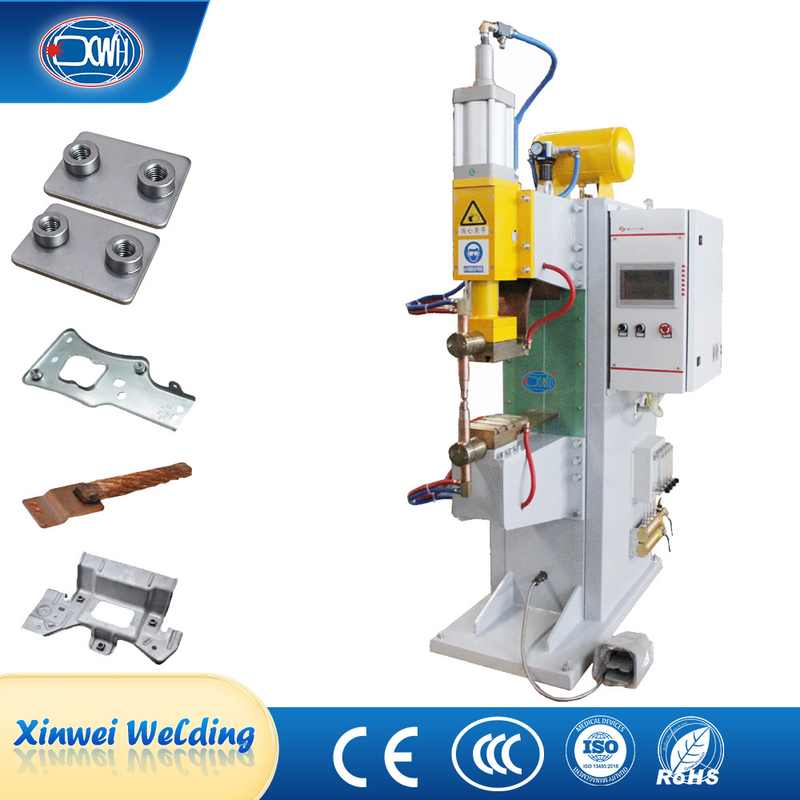

Medium Frequency Metal Auto Pneumatic Projection Stationary Spot Welding Machine
Product Description
DN (B) series medium frequency fixed point projection spot welding machine is mainly used for welding plates of low-carbon steel, stainless steel, aluminum alloy and some non-ferrous metals, as well as projection welding between plates and nuts and bolts. The equipment adopts an intermediate frequency transformer and an intermediate frequency inverter controller to improve welding quality. The intermediate frequency transformer adopts two turn ratios and can be manually switched.
Technical Parameters
| Items Models | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current (KA) | 30 | 35 | 40 | 45 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Max. force(N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length( MM) | 450 | 450 | 450 | 500 |
| Working stroke( MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max. welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Features
1. Stable machine structure upside and downside of electrodes apply the pressure mode with assistant stroke. The welding efficiency is much higher.
2. The transformer of welding machine adopts the special resistance welding machine, the silicon steel slice is featured of high magnetic: the inner water- cooled by force; stronger power and high duty ratio.
3. Controlled by micro-computer and can saved at most 16 sets of welding settings, which is quite convenient for different kinds of welding sheets.
4. Widely applicable to automobile manufacturing, production of house applications,hardware fittings and so on.
Product Structure
Compared With Ordinary AC Resistance Welding Machine, The MF Spot Welder Has The Following Advantages:
①Under the same conditions, the volume of the intermediate frequency transformer is greatly reduced; Due to its high working frequency, low losses, and high efficiency.
②The welding current of the intermediate frequency welding machine is continuous DC, without zero current crossing effect, with very concentrated heat and stable welding heat input. The welding time can be shortened, and the energy-saving effect is significant; No AC peak current impact, low welding spatter, and also prolongs the service life of the electrode; The inductance of its secondary circuit has almost no effect on the DC welding current, and there is no secondary circuit reactance loss.

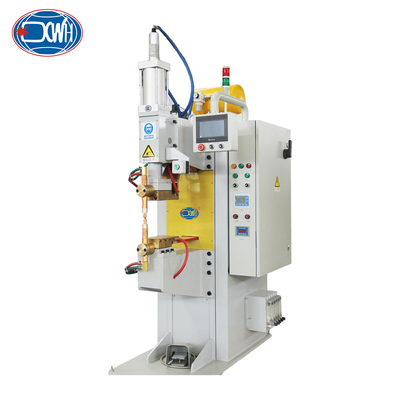

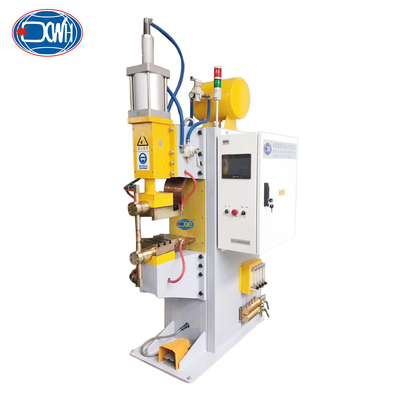

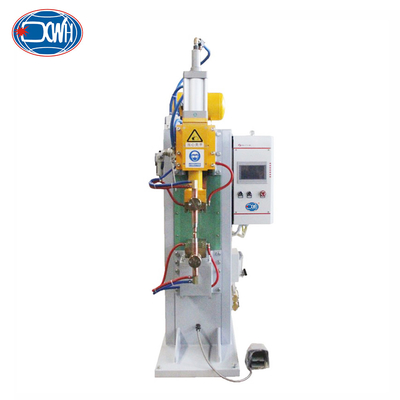

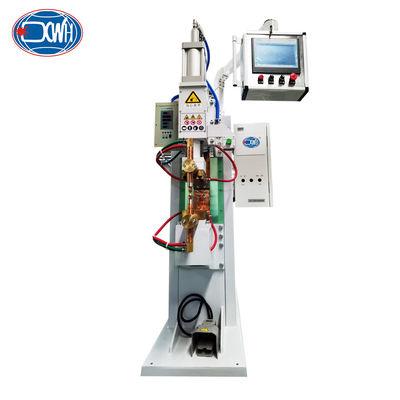

Images
Application
| Items Models | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current (KA) | 30 | 35 | 40 | 45 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Max. force(N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length( MM) | 450 | 450 | 450 | 500 |
| Working stroke( MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max. welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
