| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Model Number: | XW |
| Minimum Order Quantity: | 100 |
| Price: | USD1-USD5 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets/month |
| Certification: | CE | Product Name: | Spot Welding Cap Tip |
|---|---|---|---|
| Application: | Resistance Welding | Usage: | Welding Accessroies |
| Material: | CuCrZr, CuBe2, Or According To Requirements | Feature: | Long Working Life |
| Diameter: | 13, 16 | Model: | Can Be Customized |
| After-salAfter Warranty Servicees Service Provided: | Free Spare PVideo Technical Support, Online Support And Spare Partsarts, Field Installation, Commissioning And Training | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Resistance Projection Welding Electrodes,Welding Electrodes Accessory Caps |
||

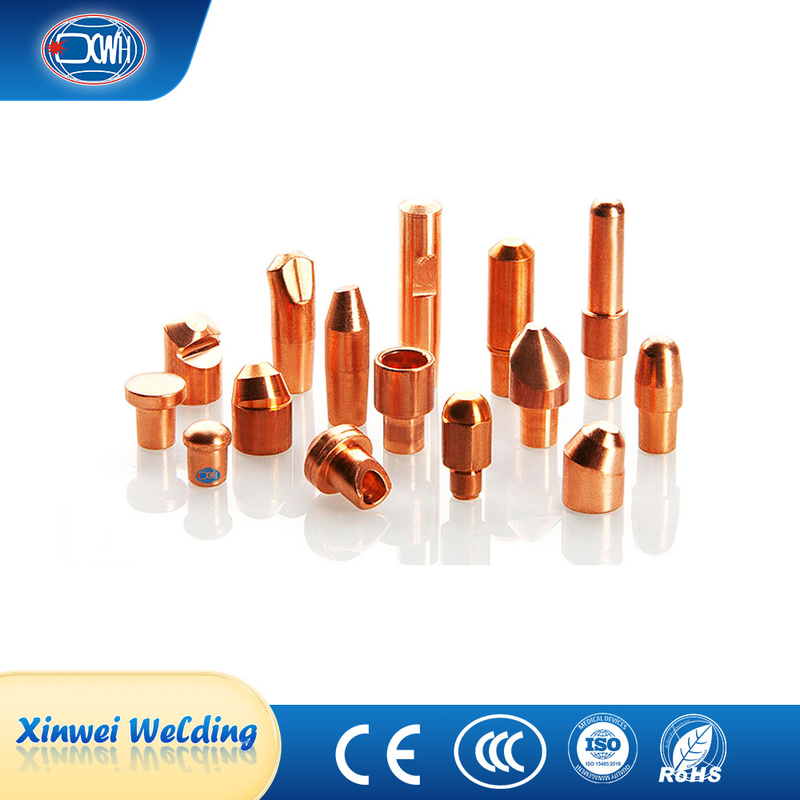

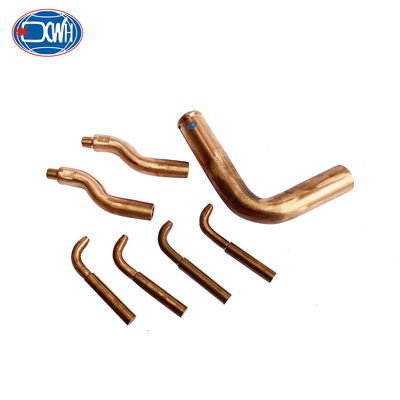

The electrode head includes an electrode cap, a straight electrode, a curved electrode, and a universal electrode.
The electrode head belongs to a type of resistance welding electrode used for welding resistance welding equipment. The commonly used electrode materials include chromium zirconium copper, beryllium copper, aluminum oxide copper, etc. Their conductivity, heat transfer, hardness, and other performance can meet the customer's usage needs.
The straight electrode is usually made of chromium zirconium copper material, which has good conductivity and thermal conductivity, and is suitable for spot welding and projection welding of carbon steel plates, stainless steel plates, coated plates and other parts. When using chromium zirconium copper material for welding, the electrode loss is minimal and the welding speed is fast.
|
Product Name
|
Spot Welding Copper Electrodes Cap
|
|||
|
Samples
|
Provided, please contact us. |
|||
|
OEM
|
Accept Customized
|
|||
|
Material
|
CuCrZr, CuBe2, or According to requirements
|
|||
|
Material no. UNS (ASTM)
|
C18150, C17200, or According to requirements
|
|||
|
Material description
|
Age hardenable Cu alloy with high electrical and thermal conductivity under a high degree of hardness and strength.
|
|||
|
Size
|
According to customer's requirements
|
|||
|
Application
|
Spot Welding
|
|||
Advantages
1) The chromium zirconium copper electrode achieves a good balance among the four performance indicators of the welding electrode:
Excellent conductivity - ensures low impedance of the welding circuit and achieves excellent welding quality
High temperature mechanical properties - High softening temperature ensures the performance and lifespan of electrode materials in high-temperature welding environments
Wear resistance - electrodes are not easily worn, extending their lifespan and reducing costs
High hardness and strength - ensuring that the electrode head works under a certain pressure and is not easily deformed or crushed, ensuring welding quality
2) Electrodes are a type of consumables used in industrial production, with a relatively large amount of consumption. Therefore, their price and cost are also important factors to consider. Compared to their excellent performance, chromium zirconium copper electrodes are relatively cheap and can meet production needs.
3) Chromium zirconium copper electrode is suitable for spot welding and projection welding of carbon steel plate, stainless steel plate, coated plate and other parts. Chromium zirconium copper material is suitable for manufacturing electrode caps, electrode connecting rods, electrode heads, electrode holding rods, projection welding special electrodes, rolling welding wheels, conductive nozzles and other electrode parts.
Different Types of Electrodes
General Types
Images
Please note: the electrode cap tip can be custom-made according to your requirements.
