| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Model Number: | FN-80-H, FN-100-H, FN-160-H, FN-100-E, FN-160-E |
| Minimum Order Quantity: | 1 Set |
| Price: | $6000.00 - $7000.00 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Features: | High Efficiency | Certification: | CE |
|---|---|---|---|
| Product Name: | Seam Welding Machine | Application: | Resistance Seam Welder |
| Function: | Seam Welder Machine | Machine Type: | Side Seam Welding Machine |
| Welding Material: | Alloy Metal Aluminum Stainless Steel | Type: | Resistance Seam Welding Machine |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Manual Resistance Seam Welder,Cnc Resistance Seam Welder,Cnc Resistance Seam Welding Machine |
||
There are two types of seam welding machines, longitudinal welding and transverse welding, depending on the welding structure. The longitudinal straight seam welding machine can weld the straight seam of the barrel body of circular workpieces, and the length and diameter of the weld seam are limited by the length of the electrode arm and the diameter of the electrode wheel. The transverse circumferential seam rolling welding machine can weld the circumferential seams of the barrel body interface and the sealing welding of the bottom cover, as well as the edge sealing straight seams and circumferential edge sealing of flat workpieces. The circumferential seam welding of circular workpieces is limited by the diameter size of the welding wheel, and the selection process should be based on the minimum diameter of the cylinder. The length of the seam welding for plate edge sealing straight seams is not limited. It can meet various welding needs of users. Randomly equipped with high-performance and highly reliable seam welding microcomputer controllers, it can achieve four welding program processes: compression, welding, maintenance, and rest. Continuous seam welding or pulse seam welding can be freely selected according to the needs of the workpiece.
|
Model Item
|
Unit
|
FN-80-H
|
FN-100-H
|
FN-160-H
|
FN-100-E
|
FN-160-E
|
|
Rated power |
KVA
|
80
|
100
|
160
|
100
|
160
|
|
Voltage input
|
V
|
380
|
380
|
380
|
380
|
380
|
|
Frequency
|
Hz
|
50
|
50
|
50
|
50
|
50
|
|
Max. short circuit current
|
KA
|
26
|
30
|
40
|
30
|
40
|
|
Working stroke |
mm |
100 |
100
|
100 |
100 |
100
|
|
Welding efficiency
|
m/min
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
|
Max. force
|
N
|
6000
|
6000
|
7800
|
6000
|
7800
|
|
Max. welding capacity
|
mm
|
1.2+1.2
|
1.5+1.5
|
2.0+2.0
|
1.5+1.5
|
2.0+2.0
|
|
Motor Power |
W
|
550
|
750
|
750
|
750
|
400
|
|
Cooling consumption
|
L/min
|
8
|
8
|
10
|
8
|
10
|
|
Weight
|
Kg
|
380
|
510
|
630
|
530
|
700
|
Advantages
1. The seam welding machine has the characteristics of reasonable equipment structure, simple operation, high automation, wide adjustment range, high accuracy, and stable speed.
2. PLC controls the operation of the entire machine, ensuring accurate and reliable control, as well as simple and convenient operation. AC frequency converter speed regulation achieves infinitely adjustable welding speed, convenient and reliable adjustment, large adjustment range, high precision, stable and reliable operation, and convenient setting of various welding process parameters.
3. High precision and high rigidity structural design ensures long-term accuracy and good stability of the equipment. Adopting precision accessories, it has high performance and stability.
4. Mainly suitable for seam welding of carbon steel, stainless steel, and other metal workpieces.

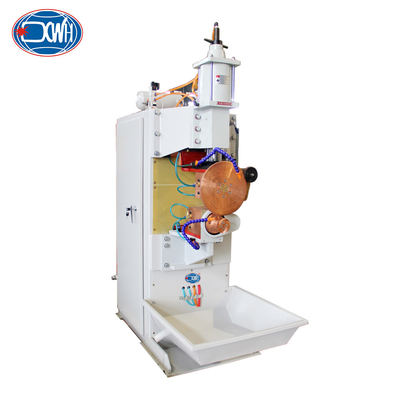

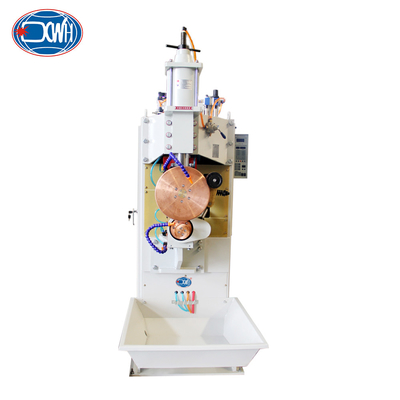

Detail Images
Images

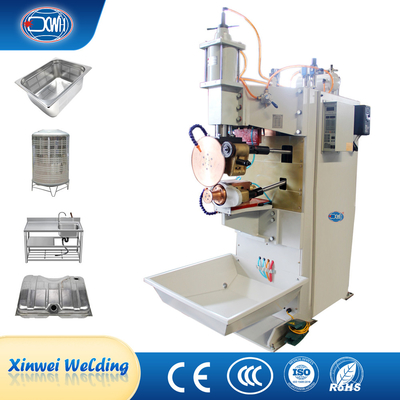

Application
Please note: the welding machine can be custom-made according to your requirements.
