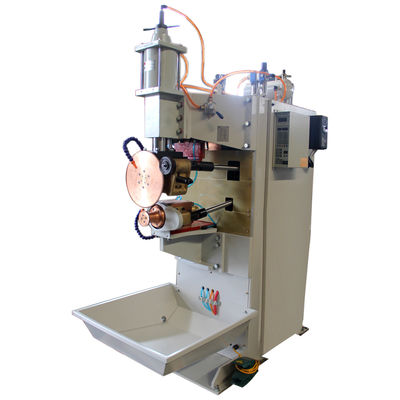

Automatic 200KVA Longitudinal Seam Welding Machine For Aluminum

working principle

During the seam welding joint formation process (intermittent) seam welding, each welding spot also has to go through three stages of pre-compression, electric heating and cooling and crystallization. However, due to the rapid change of the relative position between the roller electrode and the weldment during seam welding, these three stages are not as obvious as the distinction during spot welding. It can be considered that:

1) Under the direct compression of the roller electrode, the metal being heated by energization is in the "heating stage of energization".

2) The adjacent metal that is about to enter under the roller electrode is subjected to certain preheating and partial pressure of the roller electrode, and it is in the "pre-compression stage".

3) The adjacent metal that has just come out from under the roller electrode, on the one hand, begins to cool, and is at the same time under the pressure of the roller electrode, and it is in the "cooling crystallization stage".

Parameter

models Item	额定容量Rated power	输入电压Voltage input	额定频率Frequency	最大短路电流Max short circuit current	电极行程Working stroke	焊接速度Welding efficiency	电极压力Max force	焊接能力Max welding capacity	电动机功率Motor power
Unit	KVA	V	Hz	KA	MM	0.7-3.9	N	MM	W
FN-80-H	80	380	50	26	100	0.7-3.9	6000	1.2+1.2	550
FN-100-H	100	380	50	30	100	0.7-3.9	6000	1.5+1.5	750
FN-160-H	160	380	50	40	100	0.7-3.9	7800	2.0+2.0	750
FN-100-E	100	380	50	30	100	0.7-3.9	6000	1.5+1.5	750
FN-160-E	160	380	50	40	100	0.7-3.9	7800	2.0+2.0	400











Company Profie

Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in 2003 and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
