Low Carbon Steel 300mm Longitudinal Seam Welder For Tank Bowl

Low Carbon Steel 300mm Longitudinal Seam Welder For Tank Bowl

Brand Name: XWH
Model Number: XW
MOQ: 1
Price: $4,000.00 - $7,000.00
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Alternating Current Circuit Seam Welder For Tank Bowl
Power:
200KVA
Warranty:
1 Year
Welding Material:
Aluminum
Voltage::
380v, 220V/380V/440V/480V
Welding Mode:
Vertical And Horizontal
Welding Length:
300-2500mm
Type::
Arc Welding
Packaging Details:
Wooden Case
Supply Ability:
100 sets/month
Highlight:

300mm longitudinal seam welder

,

low carbon steel longitudinal seam welder

Product Description

Alternating Current circuit Seam Welder for Tank Bowl



Product Description


models Item
Rated power
Voltage input
Frequency
Max short circuit current
Working stroke
Welding efficiency
Max force
Max welding capacity
Motor power
Unit
KVA
V
Hz
KA
MM
0.7-3.9
N
MM
W
FN-80-H
80
380
50
26
100
0.7-3.9
6000
1.2+1.2
550
FN-100-H
100
380
50
30
100
0.7-3.9
6000
1.5+1.5
750
FN-160-H
160
380
50
40
100
0.7-3.9
7800
2.0+2.0
750
FN-100-E
100
380
50
30
100
0.7-3.9
6000
1.5+1.5
750
FN-160-E
160
380
50
40
100
0.7-3.9
7800
2.0+2.0
400

Features

The welding process is stable and easy to adjust
Internal cooling in welder, external cooling in welding wheel
High conductivity and rotation flexibility
Two welding modes: horizontal and vertical
Welding low carbon steel

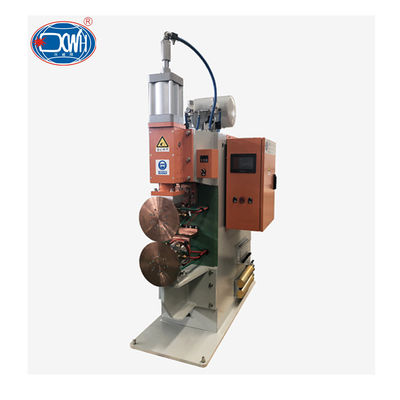

Low Carbon Steel 300mm Longitudinal Seam Welder For Tank Bowl 0

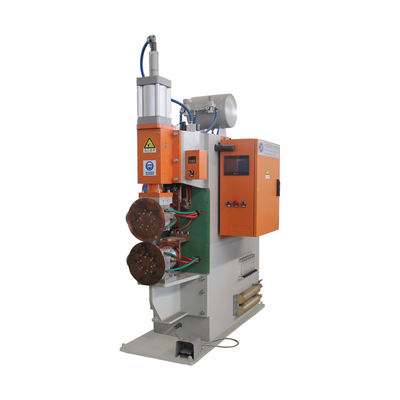

Low Carbon Steel 300mm Longitudinal Seam Welder For Tank Bowl 1
Low Carbon Steel 300mm Longitudinal Seam Welder For Tank Bowl 2
Low Carbon Steel 300mm Longitudinal Seam Welder For Tank Bowl 3
Low Carbon Steel 300mm Longitudinal Seam Welder For Tank Bowl 4



Company Profie
Low Carbon Steel 300mm Longitudinal Seam Welder For Tank Bowl 5
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in 2003 and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
