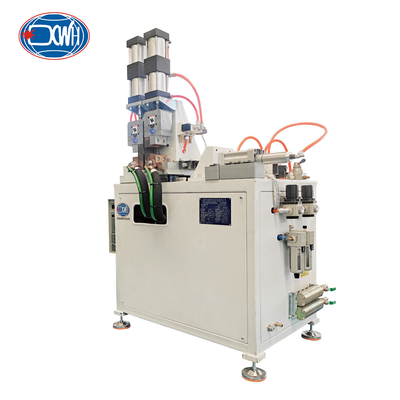

8mm Copper Ring Making Wire Forming Steel Angle Resistance Butt Welding Machine for Metal Material

8mm Copper Ring Making Wire Forming Steel Angle Resistance Butt Welding Machine for Metal Material

Brand Name:	Xingweihan
Model Number:	DN-40, DN-63, D(T)N-80, D(T)N-100, D(T)N-125, D(T)N-125, D(T)N-200
MOQ:	1
Price:	USD2800-USD3000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHs

Product Name:

Copper Wire Butt Welding Machine For Steel Bar

Application:

Rebar Butt Welding Machine Manufacturer

Function:

Pneumatic Butt Welding Machine

Machine Type:

Iron Rebar Butt Welding Machine

Keyword:

Flash Steel Butt Welding Machine

Welding Material:

Metal Aluminum Stainless Steel

Feature:

Flash Butt Welding Machine For Steel Ring

Warranty:

12 Months Guarantee

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Highlight:

Steel Angle Resistance Butt Welding Machine

8mm Butt Welding Machine

Metal Material Butt Welding Machine

Product Description

Ring Making Wire Forming Steel Angle Resistance 8Mm Copper Butt Welding Machine

Product Introduction:

The butt welding machine heats the workpiece to be welded through resistance heating. When the current passes through the contact surface of the workpiece, the contact surface rapidly heats up due to the presence of contact resistance, reaching the temperature required for welding. Subsequently, a certain amount of pressure is applied to force the contact surfaces of the two workpieces to come into close contact, causing plastic deformation or partial melting of the material, filling the gaps between the interfaces, and forming a firm welded joint. Finally, the welding area begins to cool and solidify while or after applying pressure. After a certain period of cooling and solidification, the two workpieces are firmly welded together.

Features:

1. Pneumatic or hydraulic pressurization is used: with high clamping force, it does not slip during forging and welding of the workpiece, and the welding performance is stable.

2. Dual guide rail guidance: anti-wear, smooth and stable movement, high alignment of workpiece interfaces.

3. Top forging mechanism: Adopting a paint mixed top forging mechanism, it works smoothly, has high top forging force, and high efficiency.

4. Mold electrode: Chromium zirconium copper, excellent material, not afraid of high temperature wear, good conductivity.

Technical Parameters:

Item/Model		DN-40	DN-63	D(T)N-80	D(T)N-100	D(T)N-125	D(T)N-160	D(T)N-200
Rated power At 50%	KVA	40	63	80	100	125	160	200
Rated primary power	V	380	380	380	380	380	380	380
Secondary Voltage	V	5.2	6.7	7.9	8.3	8.6	9.1	10.6
Rated frequency	HZ	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Max.Short Circuit Current	KA	14	15	16	18	20	28	34
Max. weld power	KVA	62	86	170	280	300	330	410
Throat	MM	500	500	630	630	630	630	630
Max.Froce at electrodes	N	6000	6000	10000	10000	10000	12000	12000
Working stroke	MM	20	20	30	40	40	50	50
Cooling Water Consumpion 2.5bar	L/min	6	6	8	8	8	10	10
Electrodes tlp	MM	Φ13*45	Φ13*45	Φ16*45	Φ16*45	Φ16*45	Φ20*45	Φ20*45
Arms	MM	Φ50*150	Φ50*150	Φ80*220	Φ80*220	Φ80*220	Φ80*220	Φ80*220
Projection Clamping Plate	MM	125*125	125*125	200*200	200*200	200*200	200*200	200*200
Max.Welding Capaciry A3 steel	MM	2.5+2.5	3+3	4+4	4.5+4.5	5+5	5+5	6+6

Detailed Images:

Stable Pressure Application

8mm Copper Ring Making Wire Forming Steel Angle Resistance Butt Welding Machine for Metal Material 0

The direct pressure integrated pressure application mechanism has good follow-up and does not slip during workpiece welding, with stable speed.

Easy To Operate

Using a microcomputer controller, it can analyze, adjust and control the welding process parameters of the welding machine, and the operation is simple.

Copper Alloy Electrode

8mm Copper Ring Making Wire Forming Steel Angle Resistance Butt Welding Machine for Metal Material 2

Made of high-quality materials such as chromium zirconium copper, it has good conductivity and can be used with confidence.

Scence Images:

8mm Copper Ring Making Wire Forming Steel Angle Resistance Butt Welding Machine for Metal Material 3

Application:

8mm Copper Ring Making Wire Forming Steel Angle Resistance Butt Welding Machine for Metal Material 4

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
