| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DTN |
| Minimum Order Quantity: | 1 |
| Price: | USD3000-USD5000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |

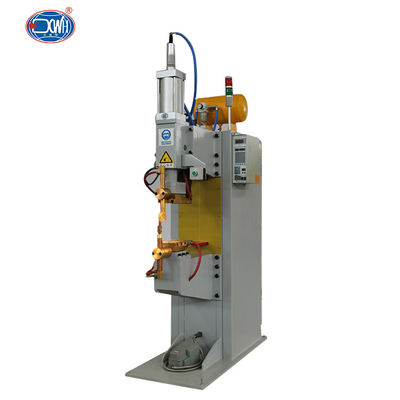

| Product Name: | 100 Kva Stationary Resistance Nut Projection Spot Welding Machine | MOQ: | 1 Set |
|---|---|---|---|
| Throat: | Customized | Frequency: | 50HZ/60HZ |
| Voltage: | 220V/380V/415V/440V | Control System: | Microcomputer |
| Power: | 100 Kva | Machine Type: | Resistant Spot Welding Machine |
| High Light: | 100Kva projection nut welding machine,100Kva stationary spot welding machine,OEM stationary spot welding machine |
||
Advantages:
1. Transformer is made of copper and epoxy resins with cooling water and low resistance,low loss and high output, good seismic performance, high power factor, transformer can be replaced without charge in five yeas because of quality defects.
2. Microcomputer constant pressure/current controller, three sections discharging,can control each welding time and welding current accurately,easy to operate.
3. The upper and lower arms are entire plate and " C " structure, which make the machine body having good rigidity. The main axis of the cylinder is designed with big and small axis, fall down fast and reduce shock. These designd promise the high and steadily welding quality.
4. Reasonable secondary circuit structure, high quality conductive material, which reduces circuit impedance greatly and makes sure high efficiency and saving energy welding.
|
MODEL
Item |
Unit
|
DN-40
|
DN-63
|
D(T)N-80
|
D(T)N-100
|
D(T)N-125
|
D(T)N-160
|
D(T)N-200
|
|
Rated power At 50%
|
KVA
|
40
|
63
|
80
|
100
|
125
|
160
|
200
|
|
Rated primary power
|
V
|
380
|
380
|
380
|
380
|
380
|
380
|
380
|
|
Secondary Voltage
|
V
|
5.2
|
6.7
|
7.9
|
8.3
|
8.6
|
9.1
|
10.6
|
|
Rated frequency
|
HZ
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
|
Max.Short Circuit Current
|
KA
|
14
|
15
|
16
|
18
|
20
|
28
|
34
|
|
Max. weld power
|
KVA
|
62
|
86
|
170
|
280
|
300
|
330
|
410
|
|
Throat
|
MM
|
500
|
500
|
630
|
630
|
630
|
630
|
630
|
|
Max.Froce at electrodes
|
N
|
6000
|
6000
|
10000
|
10000
|
10000
|
12000
|
12000
|
|
Working stroke
|
MM
|
20
|
20
|
30
|
40
|
40
|
50
|
50
|
|
Cooling Water Consumpion 2.5bar
|
L/min
|
6
|
6
|
8
|
8
|
8
|
10
|
10
|
|
Electrodes tlp
|
MM
|
Φ13*45
|
Φ13*45
|
Φ16*45
|
Φ16*45
|
Φ16*45
|
Φ20*45
|
Φ20*45
|
|
Arms
|
MM
|
Φ50*150
|
Φ50*150
|
Φ80*220
|
Φ80*220
|
Φ80*220
|
Φ80*220
|
Φ80*220
|
|
Projection Clamping Plate
|
MM
|
125*125
|
125*125
|
200*200
|
200*200
|
200*200
|
200*200
|
200*200
|
|
Max.Welding Capaciry
|
MM
|
2.5+2.5
|
3+3
|
4+4
|
4.5+4.5
|
5+5
|
5+5
|
6+6
|
Why choose our company?
(1). OEM services are welcome.Welcome to visit our factory before your place an order.
(2). High quality control.
(3). 20 years spot welding machine manufacturer.
(4). Cooperate with many foreign customers, about from 35 countries
(5). Committed to the standardization of machinary market. We make great efforts to the production of high quality and durable machine with the technological innovation.
(6). Our products with best price and quality.
(7). Our mission is to help our customers reduce cost and improve efficiency.
