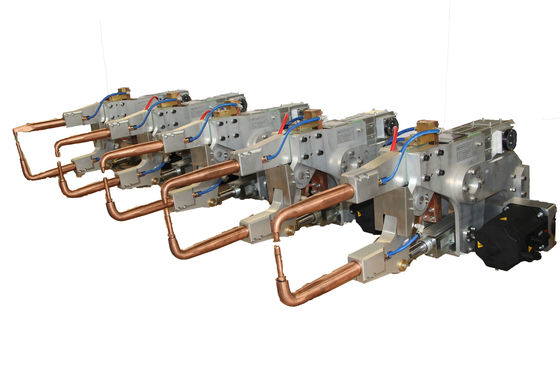

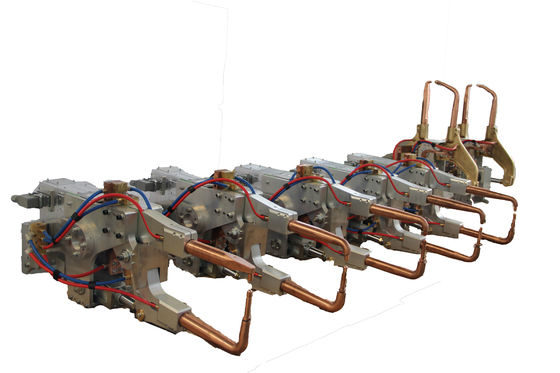

PLC Robotic Spot Welding Gun , 4.5KN Servo Gun Spot Welding

PLC Robotic Spot Welding Gun , 4.5KN Servo Gun Spot Welding

Brand Name:	XWH
Model Number:	DB3
MOQ:	1
Price:	USD、RMB
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Core Components:

PLC, Motor, Pressure Vessel

Function:

Spot Welding

Throat:

Customized

Weight:

60~120Kg

Max. Welding Thickness:

6mm+6mm

Supply Ability:

500 sets/month

Highlight:

PLC Robotic Spot Welding Gun

4.5KN Robotic Spot Welding Gun

4.5KN servo gun spot welding

Product Description

High Quality Spot robotic Welding gun Machine

1. Save labor cost (1 machine = 3-5 people), improve labor productivity, improve labor intensity of workers, can work in
harmful environment for 24h
2. High welding precision, high quality, current can be automatically switched at any time, welding thickness 0.1mm-5mm
3. Welding pressure can be set and driven by servo motor
4. Can match any kind of robot
5. Welding arm: aviation aluminum
6. One robot can control multiple welding guns (3 sets) IF (IF inverter welding machine)
7. Can store 32 welding specifications. The pressure can be adjusted. Reducing impact deformation and noise
8. Can weld high-strength plate, aluminum, galvanized metal and other materials, good welding effect
9. Preheating current, welding current and tempering current can be set. The current rise and fall. Less welding spatter
10. Counting function: count the welding times and the number of workpieces
11. Automatic mold repair and electrode replacement
12. With single/continuous spot welding function
13. Fault diagnosis and automatic protection function, built-in circuit breaker and leakage detection, automatic repair welding
function
14. Easy to install and operate
15. Communication and remote controlling functions
16. The circuit is simple, highly integrated and intelligent, the failure rate is greatly reduced, and it is easier to maintain
and maintain

Model Items	Unit	DB3-100	DB3-160
Tranformer's Rated Capacity	KVA	100	160
Primary Power		500V 1000Hz	500V 1000Hz
Max Shortcut Current	KA	1.6	2.2
Max Gun Mouth Current's Open	mm	150	250
Max Electrode Pressure	N	4000N	4500
Flowrate of Cooling Water	L/min	15	15
Arm Material		CuCrZr	CuCrZr
Connecting Way Robot		Up,Down,Left,Right,Backward	Up,Down,Left,Right,Backward
Servo Motor		KUKA,ABB,	KUKA,ABB,
welding thickness		0.8+0.8,1.2+1.2,1.5+1.8	0.8+0.8,1.2+1.2,2+2,2.5+2.5

Portable Spot Welder are used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, also it can weld stainless steel, coated steel,security doors, cabinets. Meanwhile electrode arm can be custom-made according to your requirement.

Wooden case is non-fumigation, more convenient for transport

Company Information

Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.

Certifications

Exhibition Pictures

Service

Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining  machines and so on.

Transportation Display
