Robotic Spot Welding Gun
Created with Pixso.

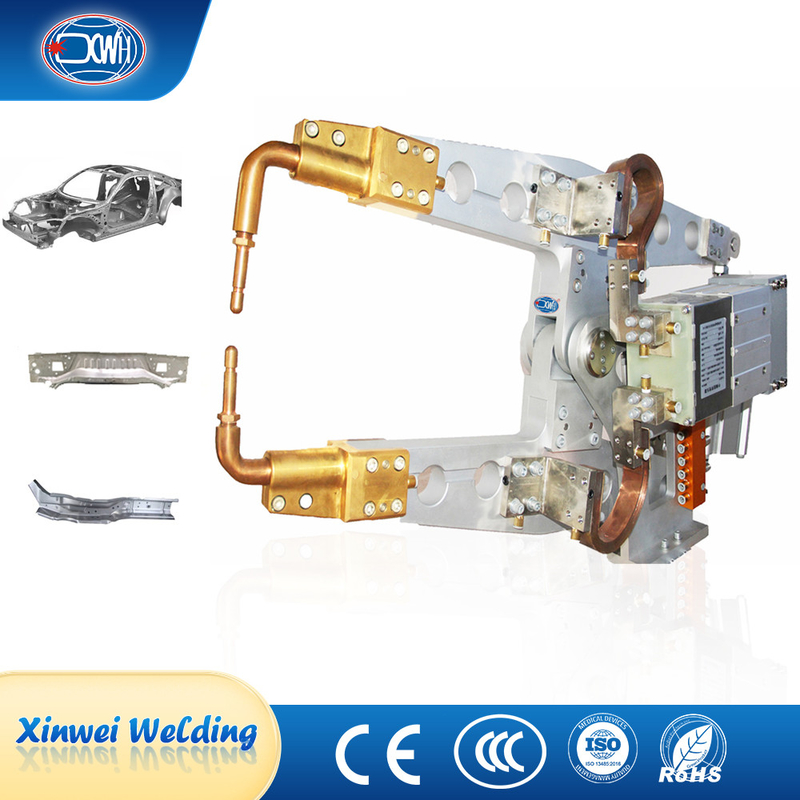

4500N Spot Welder Welding Gun

4500N Spot Welder Welding Gun

Brand Name: XWH
Model Number: DB3
MOQ: 1
Price: USD8000-USD10000
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 500 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Core Components:
4500N Robotic DC Spot Welding Gun
Function:
Metal Spot Welding Machine
Application:
Automotive Industry
Machine Type:
Automatic Spot Welding Machine
Max. Welding Thickness:
6mm+6mm
Welding Material:
Alloy Metal Aluminum Stainless Steel
Keyword:
Resistance Spot Welding Equipment
Feature:
High Production Efficiency
After Warranty Service:
Video Technical Support, Online Support And Spare Parts
After-sales Service Provided:
Free Spare Parts, Field Installation, Commissioning And Training
Supply Ability:
500 sets/month
Highlight:

160KVA spot welder welding gun

,

4500N spot welder welding gun

,

electric DC spot welding guns

Product Description
4500N Robotic Spot Welder Welding Gun



Product Introduction:

The robot welding gun body, which has obtained multiple appearance patents, is processed by aerospace aluminum, which has good rigidity, high strength, and small deformation, which plays a very good role in improving the welding quality.

The communication between the welding host and the robot adopts the DEVICENET protocol, and a personalized communication module can also be configured according to user requirements.




Technical Parameters:

Model
Items
Unit
DB3-100
DB3-160
Tranformer's Rated Capacity
KVA
100
160
Primary Power

500V 1000Hz
500V 1000Hz
Max Shortcut Current
KA
1.6
2.2
Max Gun Mouth Current's Open
mm
150
250
Max Electrode Pressure
N
4000N
4500
Flowrate of Cooling Water
L/min
15
15
Arm Material

CuCrZr
CuCrZr
Connecting Way Robot

Up,Down,Left,Right,Backward
Up,Down,Left,Right,Backward
Servo Motor

KUKA,ABB,
KUKA,ABB,
welding thickness

0.8+0.8,1.2+1.2,1.5+1.8
0.8+0.8,1.2+1.2,2+2,2.5+2.5








Some Drawings Reference:

4500N Spot Welder Welding Gun 0

C Type Welding Gun


4500N Spot Welder Welding Gun 1

X Type Welding Gun




Production Line:


4500N Spot Welder Welding Gun 2

4500N Spot Welder Welding Gun 3




Application:


4500N Spot Welder Welding Gun 4

Company Profile:

4500N Spot Welder Welding Gun 5
4500N Spot Welder Welding Gun 6
4500N Spot Welder Welding Gun 7
4500N Spot Welder Welding Gun 8
4500N Spot Welder Welding Gun 9
