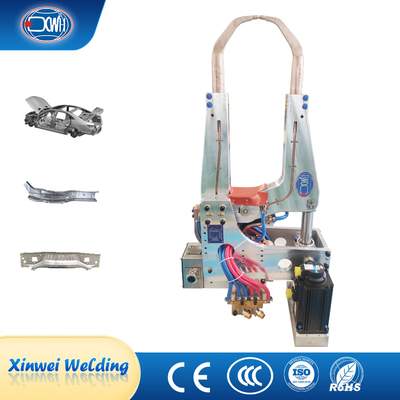

Automobile Soldadura Por Punto Automatic Types Of Robotic Spot Welding Robot Gun

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DB3-100, DB3-160
Minimum Order Quantity: 1
Price: USD8500-USD12000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Robot X Type Of Robotic Spot Welding Machine Gun Application: Automobile Industry
Function: Automatic Spot Welding Machine Keyword: Robotic Spot Welding Gun
Driving Mode: Servo Driving Welding Material: Stainless Steel Carbon Steel Metal
Type: Automatic Control Advantage: Full-automatic
After Warranty Service: Video Technical Support, Online Support And Spare Parts After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training
High Light:

Spot Welder Car Dent Puller Machine

,

Metal Body Repair Car Dent Puller


Product Description

Automobile Soldadura Por Punto Automatic Types Of Robotic Spot Welding Robot Gun







Product Introduction:



Spot welding robot welding tongs are another new type of welding tongs, following manual and automatic welding tongs. They have a significant impact on the effectiveness and potential of robots. By designing four unique floating mechanisms with automatic compensation function for spot welding robot welding tongs, automatic adjustment welding and electrode wear adjustment functions that cannot be achieved by machine and human welding are achieved.







Advantages:



1. Stabilize and improve welding quality, which can be reflected in numerical form;



2. Improve labor productivity;



3. Improve the workers’ labor intensity and available in a harmful environment;



4. Reduce the requirements for the operation of workers;



5. The opening of the welding guns is precisely controlled by the servo robot,the cycle time of welding can be greatly reduced;



6. It can save much time for decreasing the opening since the guns’expanding can be adjusted according to the working conditions as long as no collision or interference occurs;



7. When the welding guns closed and pressurized, not only the pressure can be regulated, but also the electrodes can close softly,which will reduce impact deformation and noise.







Technical Parameters:



Models/Item
unit DB3-100 DB3-160

Transformer’ s Rated Capacity
KVA 100 160

Primary Power
V 500V 1000Hz 500V 1000Hz

Max Shortcut Current
KV 1.6 2.2

Max Gun Mouth Current’s Open
MM 150 250

Max Electrode Pressure
N 4000 4500

Cooling Consumption
L/min 15 15

Arm Material


CuCrZr

CuCrZr

Connecting Way Robot
  Up, down,left,right,backward Up, down,left,right,backward

Servo motor
  KUKA,ABB,Delta
KUKA,ABB,Delta

Welding thickness
MM 0.8+0.8,1.2+1.2,1.5+1.8 0.8+0.8,1.2+1.2,2+2,2.5+2.5







Drawings:

Automobile Soldadura Por Punto Automatic Types Of Robotic Spot Welding Robot Gun 0

X-type robot welding guns: the two welding arms of the X-type welding tongs are on the same parallel level, and the welding shape and the action process are closed and open during welding, that is, the X-type welding guns;







Automobile Soldadura Por Punto Automatic Types Of Robotic Spot Welding Robot Gun 1

C-type robot welding guns: the moving side of the C-type welding guns is coaxial with the motor. During welding, the moving side moves up and down. The rising and stationary side electrode caps are combined, and the jaw shape is C-shaped.

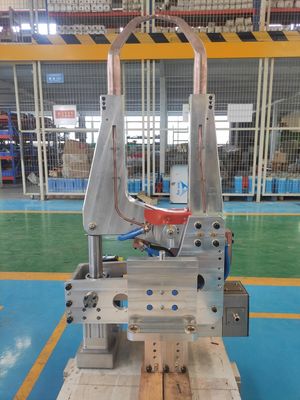

Scene Images:



Automobile Soldadura Por Punto Automatic Types Of Robotic Spot Welding Robot Gun 2

Automobile Soldadura Por Punto Automatic Types Of Robotic Spot Welding Robot Gun 3







Application:



Automobile Soldadura Por Punto Automatic Types Of Robotic Spot Welding Robot Gun 4
