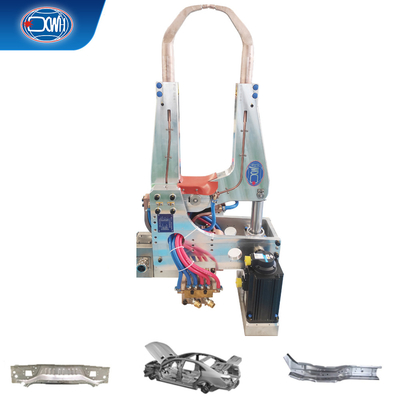

Cnc Resistance Soldadora De Punto Robot X Type Of Robotic Spot Welding Machine Gun

Cnc Resistance Soldadora De Punto Robot X Type Of Robotic Spot Welding Machine Gun

Brand Name:	XWH
Model Number:	DB3-100, DB3-160
MOQ:	1
Price:	USD8500-USD12000
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Robot X Type Of Robotic Spot Welding Machine Gun

Function:

Spot Welding

Application:

Welding Auto Body

Keyword:

Automobile Welding

Driving Mode:

Servo Driving

Feature:

Efficient Flexible

Welding Material:

Alloy Metal Aluminum Stainless Steel

Advantage:

Save Labor High Efficiency

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

500 sets/month

Highlight:

IP21 Dent Remover Kit

55A Welding Current Dent Remover Kit

Stainless Steel Car Dent Puller

Product Description

Cnc Resistance Soldadora De Punto Robot X Type Of Robotic Spot Welding Machine Gun

Product Introduction:

Spot welding robot welding tongs are another new type of welding tongs, following manual and automatic welding tongs. They have a significant impact on the effectiveness and potential of robots. By designing four unique floating mechanisms with automatic compensation function for spot welding robot welding tongs, automatic adjustment welding and electrode wear adjustment functions that cannot be achieved by machine and human welding are achieved.

Advantages:

1. Save labor costs (1 machine=3-5 people), improve labor productivity, improve worker labor intensity, and be able to work 24 hours in hazardous environments.

2. High welding accuracy and quality, with automatic current switching at any time, welding thickness of 0.1mm-5mm.

3. Welding pressure can be set, driven by servo motor.

4. It can match any manufacturer's robot.

5. Welding arm: aviation aluminum.

6. A robot can control multiple welding guns (3) and intermediate frequency (intermediate frequency inverter welding machine).

7. It can store 32 welding specifications for users to call, and the pressure can be adjusted to reduce impact deformation and noise.

Technical Parameters:

Models/Item	unit	DB3-100	DB3-160
Transformer’ s Rated Capacity	KVA	100	160
Primary Power	V	500V 1000Hz	500V 1000Hz
Max Shortcut Current	KV	1.6	2.2
Max Gun Mouth Current’s Open	MM	150	250
Max Electrode Pressure	N	4000	4500
Cooling Consumption	L/min	15	15
Arm Material		CuCrZr	CuCrZr
Connecting Way Robot		Up, down,left,right,backward	Up, down,left,right,backward
Servo motor		KUKA,ABB,Delta	KUKA,ABB,Delta
Welding thickness	MM	0.8+0.8,1.2+1.2,1.5+1.8	0.8+0.8,1.2+1.2,2+2,2.5+2.5

Drawings:

Cnc Resistance Soldadora De Punto Robot X Type Of Robotic Spot Welding Machine Gun 0

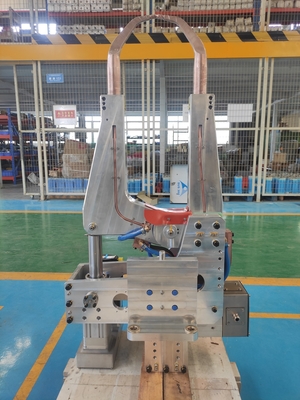

X-type robot welding guns: the two welding arms of the X-type welding tongs are on the same parallel level, and the welding shape and the action process are closed and open during welding, that is, the X-type welding guns;

Cnc Resistance Soldadora De Punto Robot X Type Of Robotic Spot Welding Machine Gun 1

C-type robot welding guns: the moving side of the C-type welding guns is coaxial with the motor. During welding, the moving side moves up and down. The rising and stationary side electrode caps are combined, and the jaw shape is C-shaped.

Scene Images:

Cnc Resistance Soldadora De Punto Robot X Type Of Robotic Spot Welding Machine Gun 2

Application:

Cnc Resistance Soldadora De Punto Robot X Type Of Robotic Spot Welding Machine Gun 3

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
