440V 160KVA Single Side Spot Welding Machine For Auto Body

440V 160KVA Single Side Spot Welding Machine For Auto Body

Brand Name:	XWH
Model Number:	DND3
MOQ:	1
Price:	USD4000-USD5000
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Manual Auto Body Single Side Spot Welding Machine

Application:

Automotive Industry

Machine Type:

Resiatance Welding Machine

Welding Material:

Alloy Metal Aluminum Stainless Steel

Voltage:

220V/380V/415V/440V

Max. Welding Thickness:

1.5+1.5mm

Feature:

Portable

Rated Duty Cycle:

50%

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

500 sets/month

Highlight:

160KVA single side spot welding machine

440V single side spot welding machine

160KVA auto body spot welding machine

Product Description

160KVA Manual Auto Body Single Side Spot Welding Machine

Product Introduction:

Suspension Spot Welding Machine is a resistance welding equipment designed to separate the welding transformer from the welding gun. It is connected by a high-voltage cable to achieve physical separation of energy transmission and welding operation. Its modular structure is suitable for high-frequency and high-intensity continuous welding operations, especially for industries such as automobile manufacturing and home appliance production.

Technical Parameters:

Model Item	DND3-125	DND3-160	DND3-200
Fixed capacity (KVA)	125	160	200
Secondary unload voltage (V)	21	22.3	24.5
Rated duty cycle (%)	50	50	50
Max. short circuit current (KA)	12	14	18
Max. thickness of mild steel sheet(mm)	1.0+Framework	1.5+ Framework	2.0+Framework
Weight (Kg)	145	210	280

Features:

1.Modular design:
The transformer and welding gun are installed independently, which is easy to maintain and has better heat dissipation performance.
Can be paired with various welding guns (X-type, C-type, servo pressure type) to meet different welding needs.

2.Lightweight operation:
The weight of the welding gun is only 1.5-3kg (integrated welding guns usually weigh over 5kg), reducing operational fatigue.
Suitable for long-term continuous welding to improve production efficiency.

3.High power output:
Adopting a dual-mode cooling system of water and air, it can sustain high current welding (for models above 100kVA).
Suitable for high conductivity materials such as aluminum alloys and galvanized steel sheets.

General Structure:

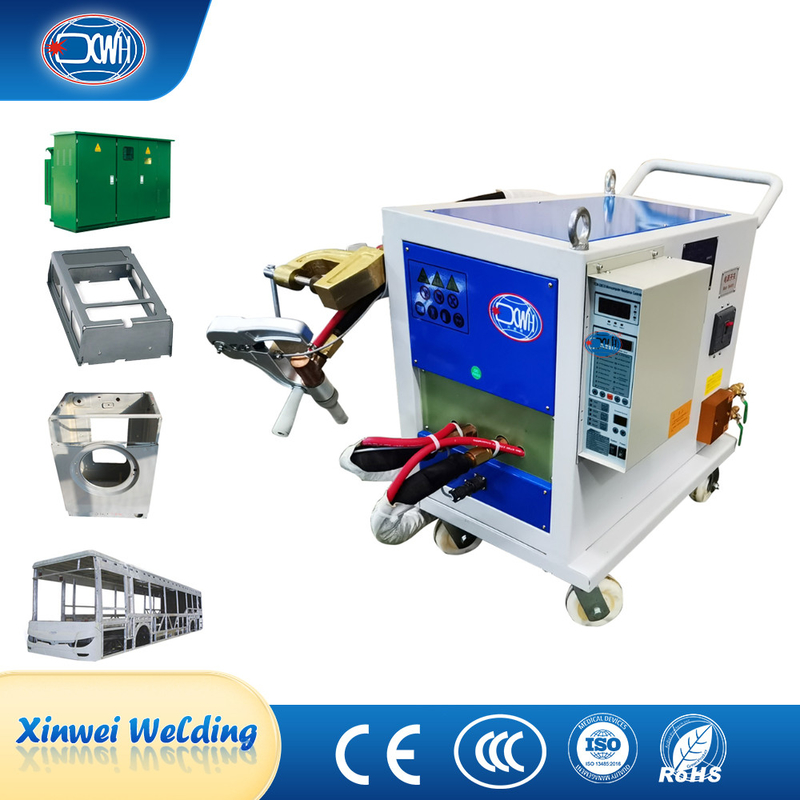

440V 160KVA Single Side Spot Welding Machine For Auto Body 1

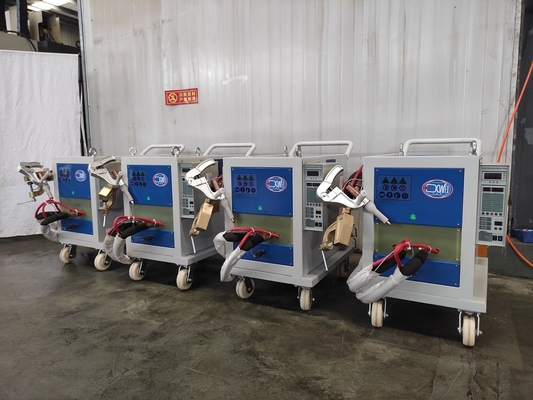

Detail Images:

440V 160KVA Single Side Spot Welding Machine For Auto Body 2

440V 160KVA Single Side Spot Welding Machine For Auto Body 3

Application:

440V 160KVA Single Side Spot Welding Machine For Auto Body 4

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
