| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DND |
| Minimum Order Quantity: | 1 |
| Price: | $4,000.00 - $4,500.00 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 sets/month |
| Product Name: | Professional Mobile Single-Sided Spot Welding Machine Auto Repair Tools | Voltage: | 380V |
|---|---|---|---|
| Weight (KG）: | 200 | Max. Welding Thickn: | 1.5mm+1.5mm |
| Frequency: | 50HZ/60HZ | Type: | Sheet Metal Spot Welder |
| Rated Duty Cycle: | 50% | Power (kW): | 25-200 |
| Highlight: | 25kw single side spot welding machine,CE single side spot welding machine,CE mobile spot welder |
||

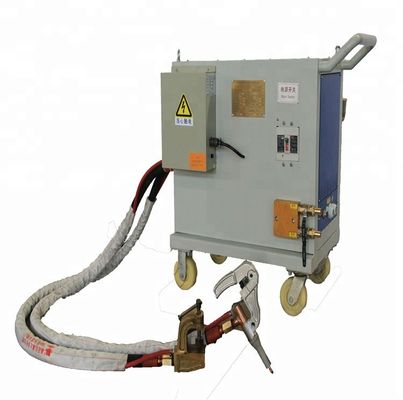

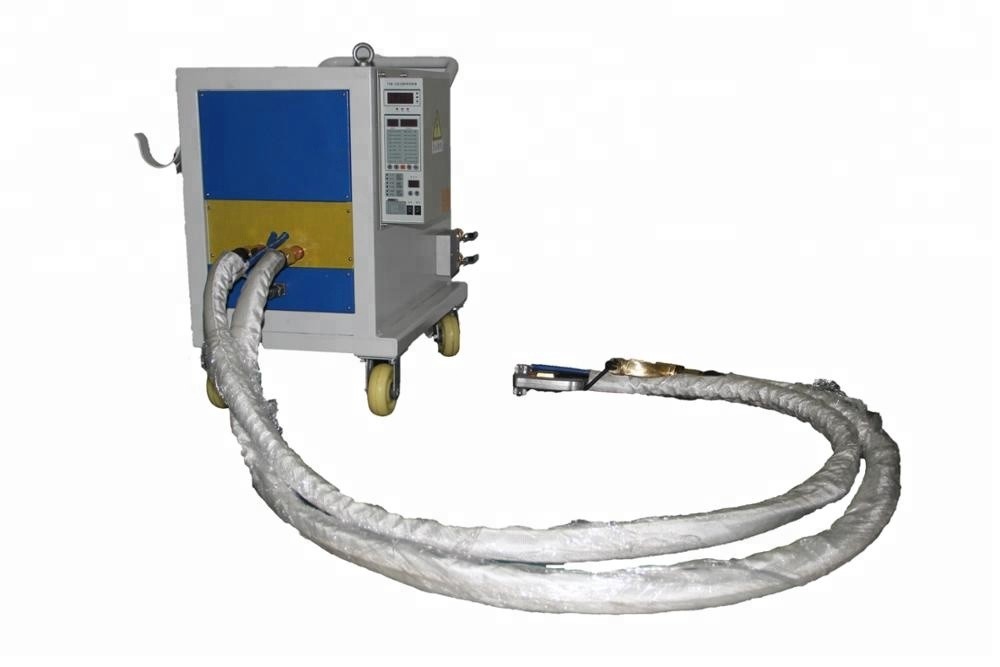

Professional Mobile Single-Sided Spot Welding Machine Auto Repair Tools
1. The welding machines are used to weld the low carbon steel,stainless steel sheet and low carbon steel strcture.
2. It is for single point,manual spot welding,made up of gun and clamp through welding strcture formed by welding circuit ,achieving the purpose of spot welding,Cooperatingwith the micro-computer,it can ensure the stable welding current.
3. The welding machines can be installed on the cart,which could be movable,And it can also hangged like DN3 series welding machine for moving freely.During the welding,the workpieces are static,while the welding gun is movable.It is safe and reliable and flexible ,which can achieve all-round welding requirements completely.
4. The welding machine can be used in the automobile welding,especially for welding the bus skin and the strcture,and the sheet welding such as metal box, door or casement.
Details
|
Model Item |
DND3-160 | DND3-200 | ||||||
| Fixed capacity (KVA) | 160 | 200 | ||||||
| Secondary unload voltage (V) | 22.3 | 24.5 | ||||||
| Rated duty cycle (%) | 50 | 50 | ||||||
| Max. short circuit current (KA) | 14 | 18 | ||||||
| Max. thickness of mild steel sheet(mm) | 1.5+ Framework | 2.0+Framework | ||||||
| Weight (Kg) | 210 | 280 |
