110V 380V MDFC Resistance Multi Head Spot Welding Machine , 160KVA CNC Spot Welder

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: XW
Minimum Order Quantity: 1
Price: USD13000-USD50000
Packaging Details: Wooden Case
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Ventilation Duct Multi Heads Spot Welding Machine Voltage: 110v/220V/380V/415V/440V
Frequency: 50HZ/60HZ Keyword: Automatic Welding Machine
Warranty: 1 Year Rated Capacity: 160KVA,200KVA,250KVA
Welding Material: Alloy Metal Aluminum Stainless Steel Feature: Stationary Welding Machine
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training After Warranty Service: Video Technical Support, Online Support And Spare Parts
Certification: CE
High Light:

110V mfdc spot welding machine

,

160KVA cnc spot welder

,

160KVA mfdc spot welding machine


Product Description





Automatic Machine Manufacture Multi-point Mfdc Spot Welder







Product Introduction:



Automatic Multi-heads spot welder are used in low carbon steel welding, steel bar welding, metal wire welding, metal tube welding, also it can weld stainless steel, coated steel,security doors, cabinets.



Technical Parameters::

Models/Item DN(B)-100 D(N)B--160 D(N)B--200 D(N)B--250
Rated power (KVA) 100 160 200 250
Power input(V) 3φAC 380V 3φAC 380V 3φAC 380V 3φAC 380V
Max. short circuit current(KA) 30 40 40 45
Max. force (N) 6000 6000 10000 15000
Electrode length(MM) 450 450 450 500
Working stroke(MM) 80 80 80 80
Cooling consumption(L/min) 20 20 20 20
Max.welding capacity(MM) 3.0+3.0 4.0+4.0 5.0+5.0

6.0+6.0





Meanwhile ,Automatic Multi-heads spot welder can be custom-made according to your requirement.




Features::


1. Accurate microcomputer control: The microcomputer inside the welding machine scans the input voltage in high numbers for a long time. As soon as the power supply fluctuates, it immediately calculates the compensation data and changes the welding energy, so that welding does not have false welding or explosion due to unstable voltage. It is more suitable for use under unstable voltage, and can ensure even welding effect each time



2. Stable current output: Due to the use of microcomputer microcontroller control, the current regulation is refined to ensure stable output current, and the welding discharge time control is precise and unrestricted



3. Simplified operation settings: All parameters are computerized, using LCD liquid crystal display and keyboard adjustment, accurate, intuitive, and convenient



4. Easy to adjust and use: The spacing between welding needles and the pressure of welding needles are independently adjustable, suitable for the welding of fine components, with accurate alignment and high yield

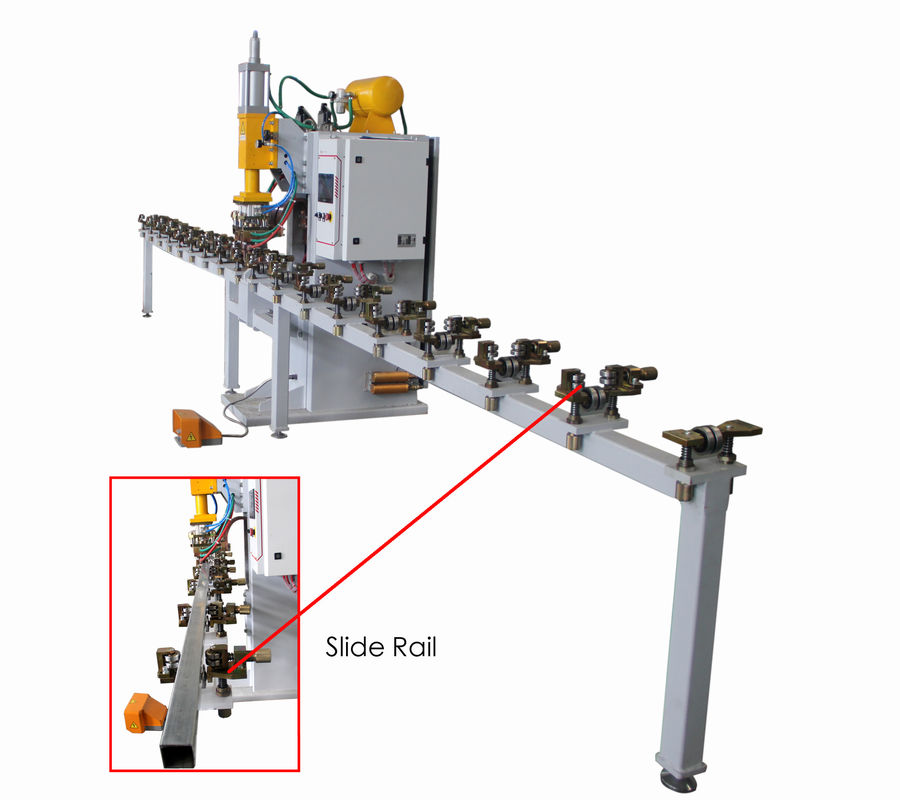

Drawings:





110V 380V MDFC Resistance Multi Head Spot Welding Machine , 160KVA CNC Spot Welder 0

110V 380V MDFC Resistance Multi Head Spot Welding Machine , 160KVA CNC Spot Welder 1

110V 380V MDFC Resistance Multi Head Spot Welding Machine , 160KVA CNC Spot Welder 2







Application:ventilation duct

110V 380V MDFC Resistance Multi Head Spot Welding Machine , 160KVA CNC Spot Welder 3







Scence Images:


110V 380V MDFC Resistance Multi Head Spot Welding Machine , 160KVA CNC Spot Welder 4

110V 380V MDFC Resistance Multi Head Spot Welding Machine , 160KVA CNC Spot Welder 5

Wooden case is non-fumigation, more convenient for transport.



FAQ::



1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.




8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.



Company Profile:

110V 380V MDFC Resistance Multi Head Spot Welding Machine , 160KVA CNC Spot Welder 6110V 380V MDFC Resistance Multi Head Spot Welding Machine , 160KVA CNC Spot Welder 7110V 380V MDFC Resistance Multi Head Spot Welding Machine , 160KVA CNC Spot Welder 8
110V 380V MDFC Resistance Multi Head Spot Welding Machine , 160KVA CNC Spot Welder 9
110V 380V MDFC Resistance Multi Head Spot Welding Machine , 160KVA CNC Spot Welder 10
110V 380V MDFC Resistance Multi Head Spot Welding Machine , 160KVA CNC Spot Welder 11
