380V Multi Point Projection Weld Resistance Welders Point Oil Tank Welding Machine
Product Introduction:

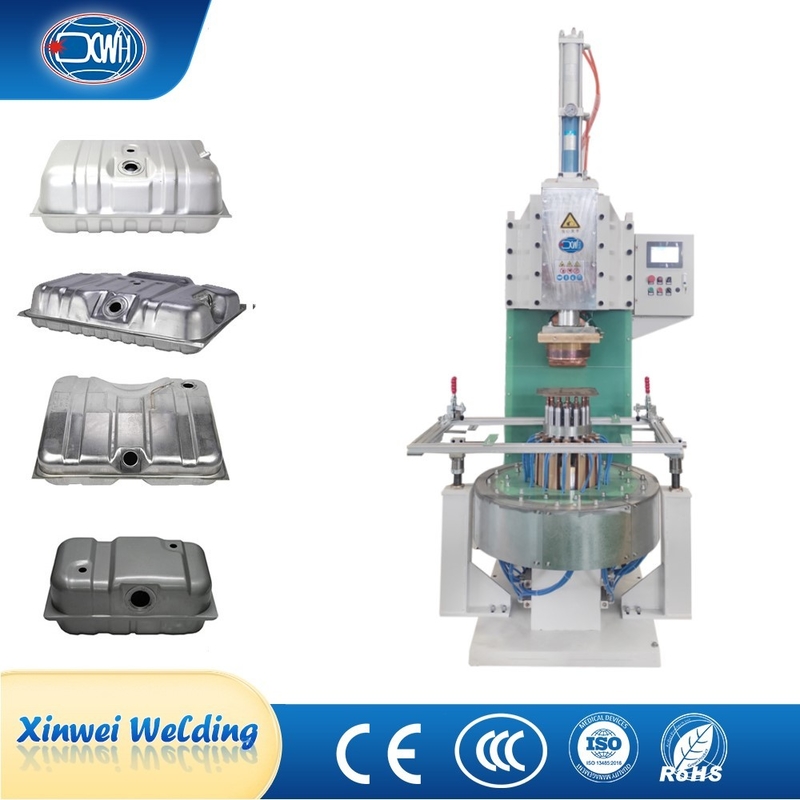

The 14 point welding machine is mainly used for car welding fuel tanks, consisting of welding equipment host, welding power supply system, and electrical control system components. Equipment ruler: length 2360 * width 1390 * height 2785. Equipment weight: approximately 800kg.
Features:
1. The upper electrode is pressurized by an auxiliary cylinder, which makes stroke adjustment convenient and accurate, making the workpiece operation stroke continuously adjustable.
2. The spare dedicated gas storage tank for welding machines is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.
3. The upper electrode moves vertically up and down in the linear guide rail, with high precision in repeated positioning. So as to make the solder joints accurate.
4. The number of welding steps and the number of welding points per step can be adjusted arbitrarily, and the welding parameters for each step can be set separately. It can be flexibly set according to the product current requirements to improve efficiency.
Technical Parameters:
Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
Rated power (KVA) | 100 | 160 | 200 | 250 |
Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
Max. force (N) | 6000 | 6000 | 10000 | 15000 |
Electrode length(MM) | 450 | 450 | 450 | 500 |
Working stroke(MM) | 80 | 80 | 80 | 80 |
Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Welding Precautions:
1. Do not place the newly welded base material near flammable objects;
2. Move flammable and explosive materials at least 10 meters away from the welding spatter, so that the welding spatter does not come into contact with flammable materials. If the object cannot be moved away, please use a flame-retardant cover to reliably cover the flammable object;
3. Pay attention to the sparks and hot slag generated during welding, which will pass through cracks and holes and reach nearby areas;
4. During the welding process, it is necessary to adjust the welding process parameters and try to use process parameters with less spatter for welding;
5. The cable connection should be reliably insulated and connected;
General Structures:
Workpiece:
The material can be galvanized sheet or stainless steel sheet. The thickness of the workpiece is 2.0+1.0mm, and the maximum size of the workpiece is commonly 1.2 meters * 0.6 meters * 0.3 meters, which can be customized. The diameter of the circular electrode layout is commonly 186mm. Customizable.
