| Product Name: | Reinforcing Mesh Welding Machine | Welding Material: | Alloy Metal Aluminum Stainless Steel |
|---|---|---|---|
| Function: | Welding Mesh Machine | Machine Type: | Point Welding Machine |
| Advantage: | Multi Head Spot Welding Machine | Keyword: | Rebar Mesh Welding Machine |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Wire Shelf Automatic Point Welder,CE Mesh Spot Welding Machine,Multihead Automatic Point Welder |
||
Wire Shelf Automatic Welded Point Welder Welding Wire Machines Spot Welded Mesh
Product Introduction
The multi head spot welding machine adopts the advanced structure of foreign equipment and fully combines with a semi-automatic welding equipment developed in the Chinese market that is completely different from the currently used semi-automatic welding equipment by various manufacturers. It completely overcomes the shortcomings of high labor intensity, low production efficiency, complex operation, large spatter, weak welding, high failure rate, and low automation of the original welding machine, and can produce various 6MM series steel bars (electrode replacement is sufficient).
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. The rebar mesh welding machine adopts a pneumatic electrode that automatically adjusts the pre tightening force, with a relatively constant pre pressure. Compared to spring pre pressing, it has the characteristics of less electrode impact, less electrode wear, and more secure welding points. The spatter during the welding process is further reduced, and the electrode life is further extended.
2. The key electrical components of this product are controlled by PLC, and intelligent management is implemented for equipment operation. The touch screen operation makes the operation more convenient and concise.
Major Structure
The multi head spot welding machine is a gantry type frame used to install related components and withstand welding pressure; The welding machine is fixed, and the workpiece moves along the X-axis.
Work Principle
1. The forward drive of the workpiece is driven by a servo motor with precision gear and rack drive, and the step size can be freely controlled. It is relatively convenient to change the specifications of the workpiece.
2. Workpiece 2 (4-6 points per row). On the fixture, use one welding machine to spot weld each row three times, and then automatically advance to the next row of welding points. At the position of the inclined welding points, there is a servo driven positioning welding. The machine will tand by until all solder joints are completed.

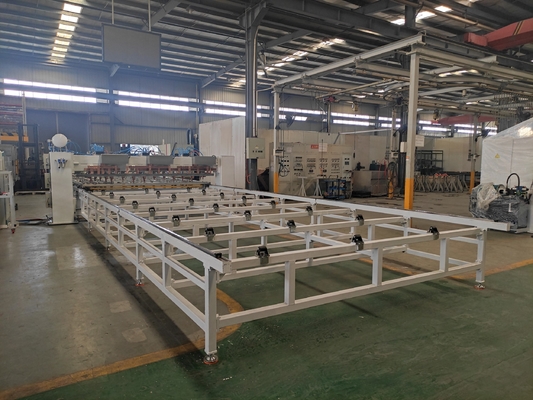

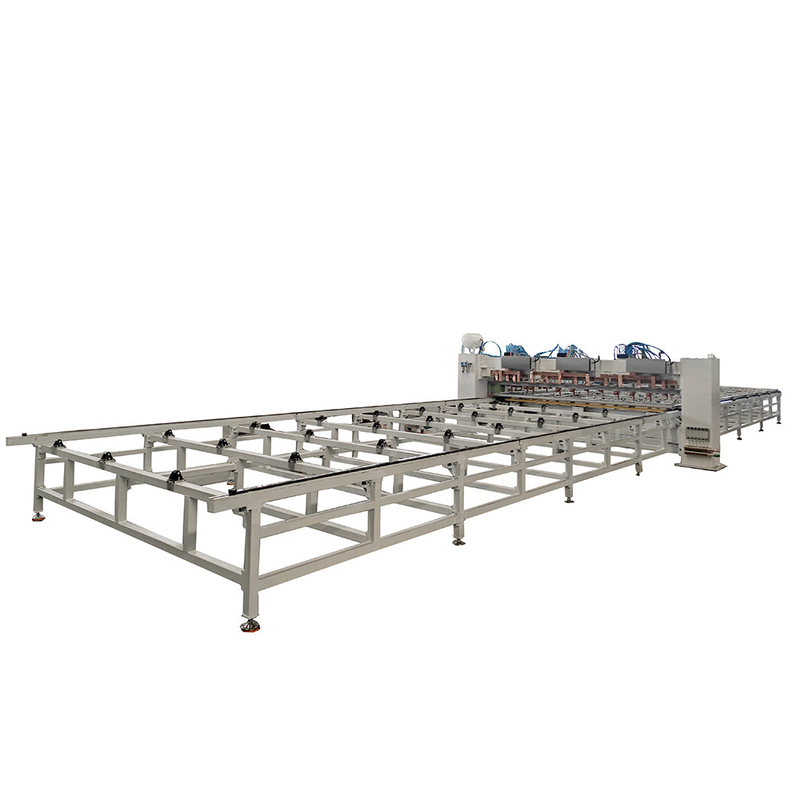

Reference Pictures
