Resistance Leaf Stationary Projection Spot Welding Machine For Galvanized Sheets

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DN-40, DN-63, D(T)N-80, D(T)N-100, D(T)N-125, D(T)N-125, D(T)N-200
Minimum Order Quantity: 1
Price: USD4500-USD6000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Product Name: Projection Spot Welding Machine Application: Welding Galvanized Sheet
Function: Projection Welding Machine Type: Projection Welding Machine
Keyword: AC Welding Machine Welding Material: Aluminum, Stainless Steel, Metal Steel
Max. Welding Capacity: 6+6mm After Warranty Service: Video Technical Support, Online Support And Spare Parts
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training Certification: CE
High Light:

Galvanized Sheets Spot Welding Machine

,

Leaf Projection Spot Welding Machine

,

Resistance Leaf Projection Welding Machine


Product Description



Resistance Leaf Stationary Projection Spot Welding Machine For Galvanized Sheets



Product Description



The metal leaf projection welding machine is composed of components such as a frame, conductive sheet, welding head moving mechanism, electrode components, welding transformer (power frequency), welding machine controller, air circuit system, cooling water system, etc.




Technical Parameters



Item/Model   DN-40 DN-63 D(T)N-80 D(T)N-100 D(T)N-125 D(T)N-160 D(T)N-200
Rated power At 50% KVA 40 63 80 100 125 160 200
Rated primary power V 380 380 380 380 380 380 380
Secondary Voltage V 5.2 6.7 7.9 8.3 8.6 9.1 10.6
Rated frequency HZ 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Max.Short Circuit Current KA 14 15 16 18 20 28 34
Max. weld power KVA 62 86 170 280 300 330 410
Throat MM 500 500 630 630 630 630 630
Max.Froce at electrodes N 6000 6000 10000 10000 10000 12000 12000
Working stroke MM 20 20 30 40 40 50 50
Cooling Water Consumpion 2.5bar L/min 6 6 8 8 8 10 10
Electrodes tlp MM Φ13*45 Φ13*45 Φ16*45 Φ16*45 Φ16*45 Φ20*45 Φ20*45
Arms MM Φ50*150 Φ50*150 Φ80*220 Φ80*220 Φ80*220 Φ80*220 Φ80*220
Projection Clamping Plate MM 125*125 125*125 200*200 200*200 200*200 200*200 200*200

Max.Welding Capaciry A3 steel

MM 2.5+2.5 3+3 4+4 4.5+4.5 5+5 5+5 6+6





Advantages



1. The body is designed for shock resistance, seismic resistance, and high rigidity, and is finely machined to meet the installation and load strength of each component. Multiple reinforcing ribs have been welded inside the frame to ensure the rigidity of the equipment and minimal deformation during the welding process, ensuring the stability of welding and the safety of manual use.



2. The upper electrode is pressurized by a gas-liquid pressure cylinder, making pressure adjustment convenient and accurate.



3. The backup dedicated air storage tank for welding machines is beneficial for reducing the fluctuation of welding pressure and ensuring the stability of welding force;



4. The upper electrode moves horizontally forward and backward, and the welding stroke and workpiece operation stroke are independent, while the lower electrode is fixed; Easy to operate.





Product Structure

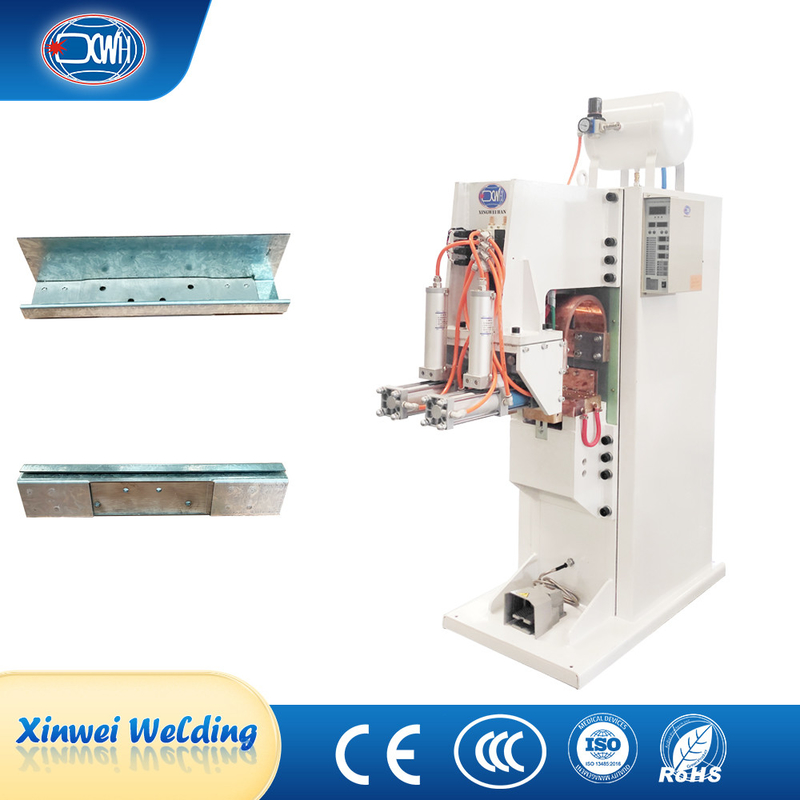

Resistance Leaf Stationary Projection Spot Welding Machine For Galvanized Sheets 0

Resistance Leaf Stationary Projection Spot Welding Machine For Galvanized Sheets 1



Images



Resistance Leaf Stationary Projection Spot Welding Machine For Galvanized Sheets 2




Application

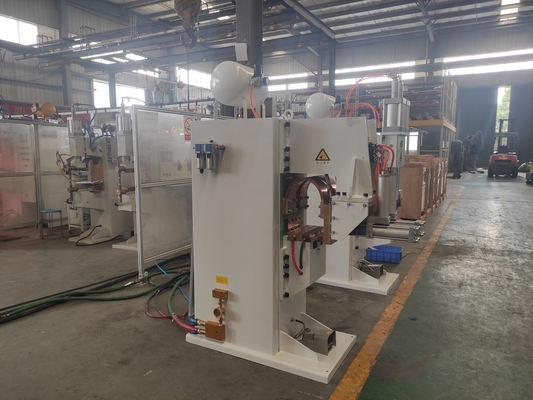

Resistance Leaf Stationary Projection Spot Welding Machine For Galvanized Sheets 3
Resistance Leaf Stationary Projection Spot Welding Machine For Galvanized Sheets 4
