| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity: | 1 |
| Price: | USD44000-USD50000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Wire Mesh Welding Machine | Welding Material: | Steel Copper Aluminum Etc |
|---|---|---|---|
| Function: | Welded Wire Mesh Machine | Machine Type: | Resistance Welding Machine |
| Advantage: | Automatic Welder | Keyword: | Multi Head Spot Welding Machine |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Wire Mesh Point Welding Machine,380V Multi Spot Welded Machine,CE Point Welding Machine |
||
Point Multi Spot Welded Automatic Welder Point Welding Wire Mesh Welding Machine
Product Introduction
The 17 head steel bar welding machine is equipped with a semi-automatic welding equipment suitable for 6MM series steel bars, with simple operation and high productivity.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. The cnc rebar wire mech welding machine with 17 welding heads adopts 3 welding steps with 6 welding points each time, and then automatically advances to the next row of welding points until all welding points are completed. The entire process is fully automatic controlled by PLC, equipped with monitoring and alarm.
2. The multi head spot welding machine uses direct power supply from a welding transformer to the workpiece, and regularly replaces the welding head, while also having energy-saving effects.
Major Structure
The multi head spot welding machine is a gantry type frame used to install related components and withstand welding pressure; The welding machine is fixed, and the workpiece moves along the X-axis.

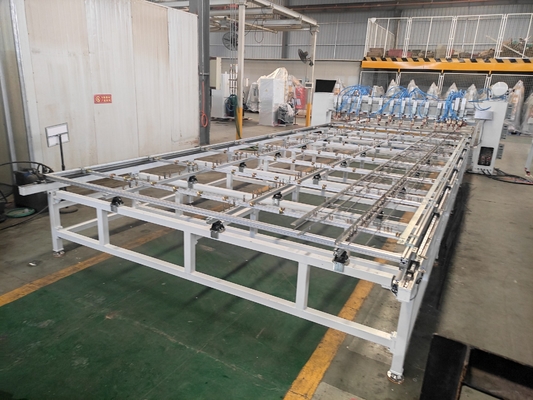

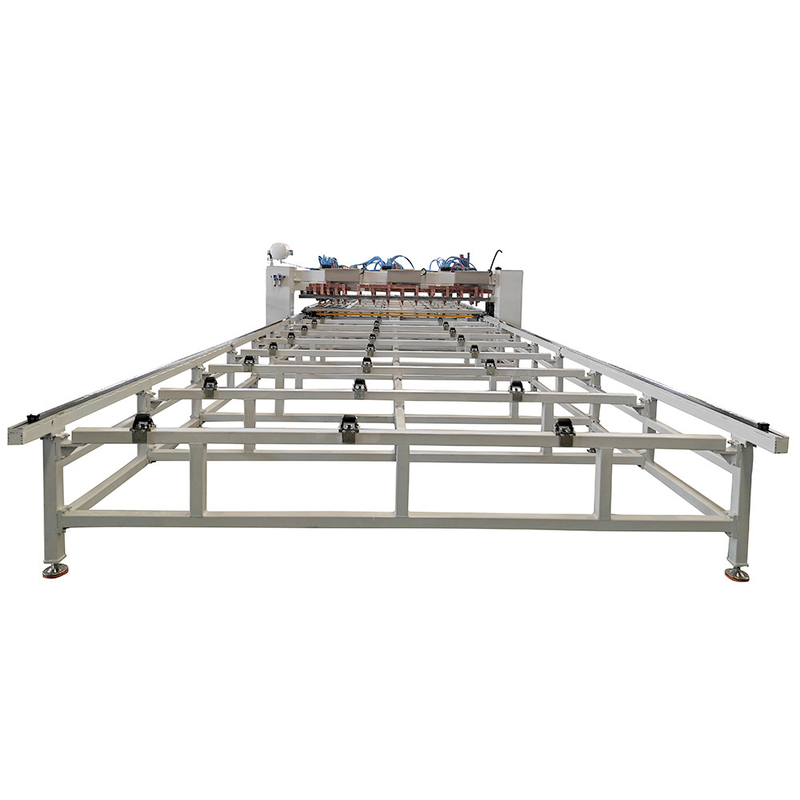

Reference Pictures
