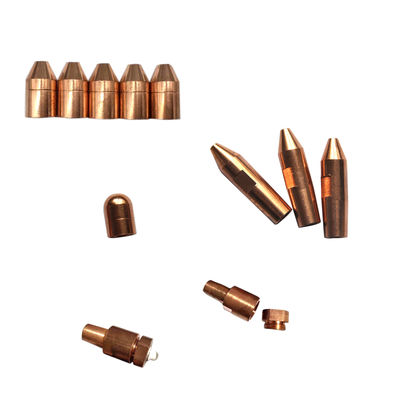

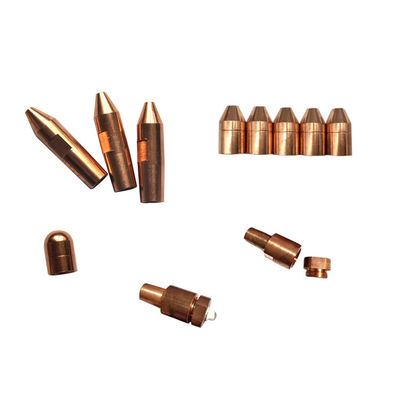

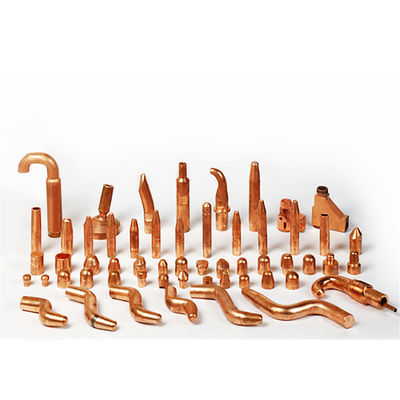

28mm Spot Welding Copper Electrodes , High Hardness Spot Weld Nozzle

Welding Electrode Cap

CuCrZr, CuBe2, or According to requirements

C18150, C17200, or According to requirements

Age hardenable Cu alloy with high electrical and thermal conductivity under a high degree of hardness and strength.

According to customer's requirements

Spot Welding

Pointed

Tapered from the full-diameter electrode shank to required size and with a flat surface, holds its shape well, but is difficult to dress in the machine unless a dressing tool of the exact taper is provided

Flat

Employs the full shank or stock size at the welding surface

Dome

Used for less precise work where easy dressing is of advantage. the dome shape provides a greater approach to the flat surface of the work

Offset

Used to make a spot weld closer to a vertical wall that is possible with a straight tip. the offset of the tip should be as slight as possible, as the electrode force or the compression load at the center line of the electrode axis will tend to cause bending of the tip. since the tendency of the electrode is to skid or deflect as the offset distance from the center of the electrode axis
increases, offset tips should not be used except when required.

Radius

Used for the welding of aluminum and for many other precise applications because of the superior results to be obtained. the spherical surface is easier to clean without removing from the machine, will withstand higher pressures with less deformation and is more readily aligned in the holders.
