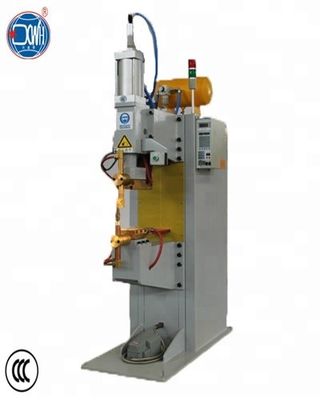

Portable 6000N Foot Operated Spot Welder , 200KVA Auto Body Spot Welder
Brand Name:
XWH
Model Number:
DN10
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
3 Set
Price:
$600.00 - $1,000.00
Supply Ability:
45 Set/Sets per Month
Delivery Time:
15 Working days
Inquiry Now
Get A Quote
Specifications
Highlight Features
20mm auto body spot welder
,200KVA foot operated spot welder
,6000N foot operated spot welder
Product Name:
Portable Foot Press Spot Welding Machine
Machine Type:
Auto Repair Tools
Rated Capacity:
40-200KVA
After Warranty Service::
Video Technical Support, Online Support, Spare Parts, Field Maint
Weight (KG):
200 KG
Rated Duty Cycle:
50%
Voltage:
380V
Product Description

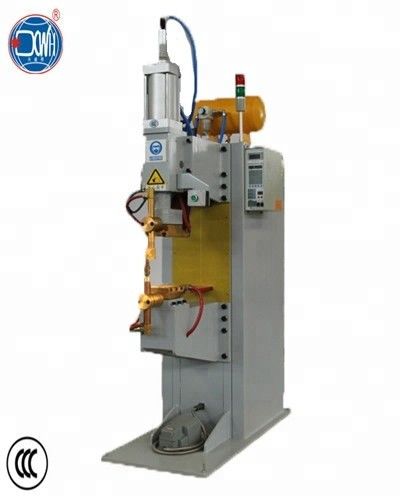

Portable Foot Press Spot Welding Machine
| MODEL | DN-40 | DN-63 | DN-80 | DN-100 | DN-125 | DN-160 | DN-200 | |||
| Rated power At 50% | KVA | 40 | 63 | 80 | 100 | 125 | 160 | 200 | ||
| Rated primary power | V | 380 | 380 | 380 | 380 | 380 | 380 | 380 | ||
| Secondary Voltage | V | 5.2 | 6.7 | 7.9 | 8.3 | 8.6 | 9.1 | 10.6 | ||
| Rated frequency | HZ | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | ||
| Max.Short Circuit Current | KA | 14 | 15 | 16 | 18 | 20 | 28 | 34 | ||
| Max. weld power | KVA | 62 | 86 | 170 | 280 | 300 | 330 | 410 | ||
| Throat | MM | 400 | 400 | 400 | 450 | 450 | 450 | 450 | ||
| Max.Froce at electrodes | N | 6000 | 6000 | 10000 | 10000 | 10000 | 12000 | 12000 | ||
| Working stroke | MM | 20 | 20 | 30 | 40 | 40 | 50 | 50 | ||
| Cooling Water Consumpion 2.5bar | L/min | 6 | 6 | 8 | 8 | 8 | 10 | 10 | ||
|
Electrodes Dimensions |
Electrodes tlp | MM | Φ13*45 | Φ13*45 | Φ16*45 | Φ16*45 | Φ16*45 | Φ20*45 | Φ20*45 | |
| Arms | MM | Φ50*150 | Φ50*150 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | Φ80*220 | ||
| Projection Clamping Plate | MM | 125*125 | 125*125 | 200*200 | 200*200 | 200*200 | 200*200 | 200*200 | ||
| Max.Welding Capaciry |
A3 steel | MM | 2.5+2.5 | 3+3 | 4+4 | 4.5+4.5 | 5+5 | 5+5 | 6+6 | |
DTN Series
Company Information
ChengDu XinWei Welding Technoloy Co.Ltd is a high tech-corporation of resistance welding machine and relative products integrated with researching , developing, manufacturing, marketing and service.We have 15 years experience in welding technology.In 2008,our output of single product is more than 1000 units.
This is one of our overseas customers' factories.
Our company is a manufacturer of welding equipment and has the right to run the import/export business.
We are engaging in this field for over fifteen years. We have exported our products to India, Pakistan, Mexico, Russia and so on.Total number of export countries reached 53 including online and offline services.
