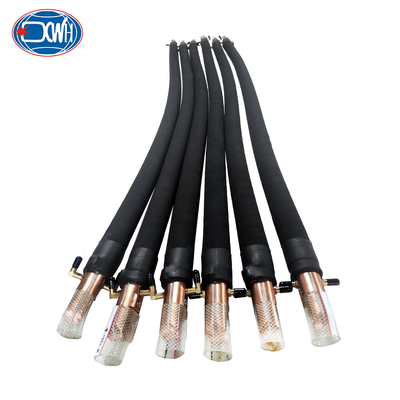

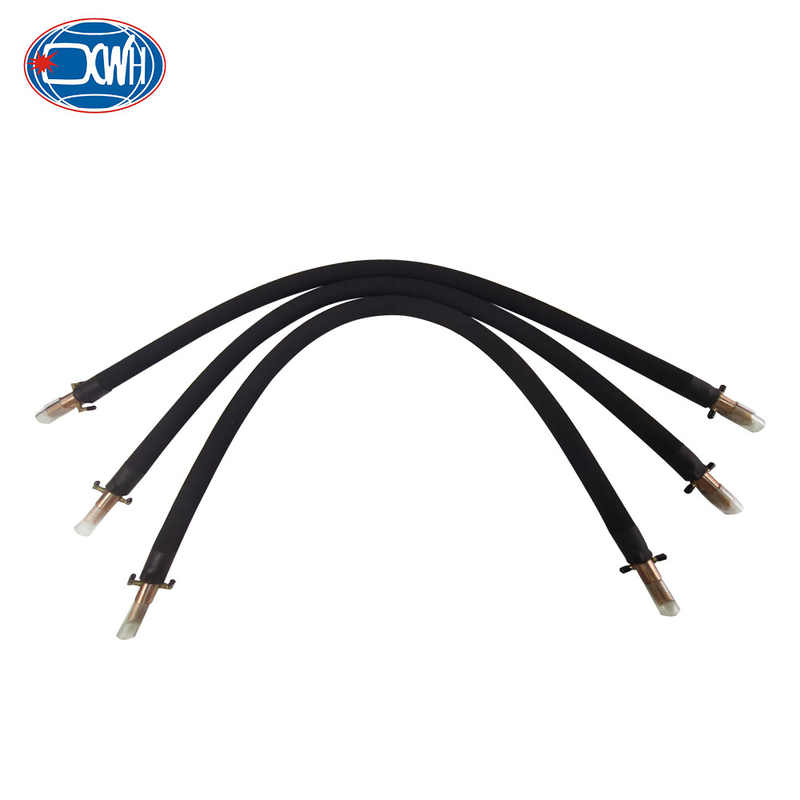

Copper Water Cooled Kickless Cables For Industrial Portable Spot Welding Machine

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: XW
Minimum Order Quantity: 5
Price: USD300-USD350
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Kickless Cables Application: For Suspension Spot Welding Machine
Insulation: Rubber Insulation Conductor Material: Red Copper
Standard Diameter: 300mm²/400mm² Standard Length: 2m-3.5m
Feature: High Duty After Warranty Service: Video Technical Support, Online Support And Spare Parts
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training Certification: CE, ISO
High Light:

Industrial Water Cooled Kickless Cables

,

Copper Kickless Cables

,

Spot Welding Water Cooled Cable


Product Description

Copper Water Cooled Kickless Cables For Industrial Portable Spot Welding Machine





Product Description

We paid special attention to the material quality, size, twisting and twisting of the cable strands, as well as the cooling scheme during the design. The cable was covered with oil resistant, fire-resistant, and pressure resistant high pole rubber tubes. At the same time, we also studied the connection scheme between the cable and the terminal to improve the service life of the wire and ensure the flow rate.



Parameter



Item Specifiction 300mm² 400mm² Note
Impedance 2.0M 480±15μΩ 358±15μΩ
2.4M 593±15μΩ 445±15μΩ
Dc impedance value 2.0M 475μΩ 355μΩ
2.4M 587μΩ 440μΩ
Resistance 2.0M 78μΩ 74μΩ Calculated Value
2.4M 82μΩ 88μΩ
Power   =0.99 =0.99
Cooling water capacity   7.0L/MIN 7.0L/MIN Pressure Loss of 0.7KG/cm
Temperature rise characteristic 2.0M 45℃/5900A 45℃/6800A
2.4M 45℃/5400A 45℃/6200A
Weight 2.0M 10.4KG 13.2KG Average Value
2.4M 12.2KG 15.3KG




Features



1. High-purity red copper hinge cables, having higher conductivity and lowering impedance between the transformer output and the welding gun



2. Excellent rubber sleeves and plum blossom rubber cores, having good pressure resistance, heat resistance, wear resistance, and bending performance



3. High resistance to repeating kicks and bending caused by electro-magnetic force induced by welding current and welding operation, and accordingly long life and good economy.



4. Minimal water pressure drop for excellent cooling effect



5. Convenient cable replacement and minimal downtime





Standard Drawing

Cross Section 300mm²

Copper Water Cooled Kickless Cables For Industrial Portable Spot Welding Machine 0







Cross Section 400mm²

Copper Water Cooled Kickless Cables For Industrial Portable Spot Welding Machine 1

Besides standard models, we can customized according to your requirements. More details, please contact!



Scene images

Raw Materials: Pure Red Copper

Copper Water Cooled Kickless Cables For Industrial Portable Spot Welding Machine 2

Careful Protection :Additional Rubber Sleeve

Copper Water Cooled Kickless Cables For Industrial Portable Spot Welding Machine 3



Finished Product

Copper Water Cooled Kickless Cables For Industrial Portable Spot Welding Machine 4




Application



Copper Water Cooled Kickless Cables For Industrial Portable Spot Welding Machine 5





Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.

Copper Water Cooled Kickless Cables For Industrial Portable Spot Welding Machine 6
Copper Water Cooled Kickless Cables For Industrial Portable Spot Welding Machine 7
Copper Water Cooled Kickless Cables For Industrial Portable Spot Welding Machine 8
Copper Water Cooled Kickless Cables For Industrial Portable Spot Welding Machine 9
Copper Water Cooled Kickless Cables For Industrial Portable Spot Welding Machine 10Copper Water Cooled Kickless Cables For Industrial Portable Spot Welding Machine 11
Copper Water Cooled Kickless Cables For Industrial Portable Spot Welding Machine 12
