| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | XW |
| Minimum Order Quantity: | 5 |
| Price: | USD300-USD350 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Kickless Cables | Application: | For Suspension Spot Welder |
|---|---|---|---|
| Usage: | Welding Consumables | Conductor Material: | Red Copper |
| Standard Diameter: | 300mm²/400mm² | Feature: | Long Life |
| Customization: | Yes | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | Certification: | CE, ISO |
| High Light: | Spot Welder Kickless Cables,Welding Kickless Cables,Spot Welder Cables |
||

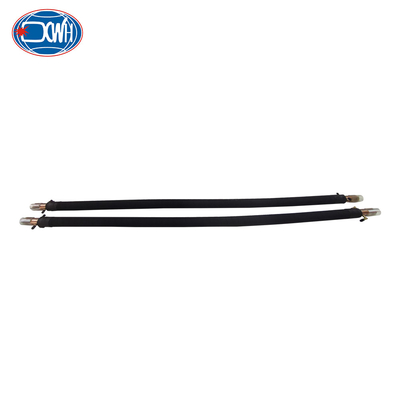

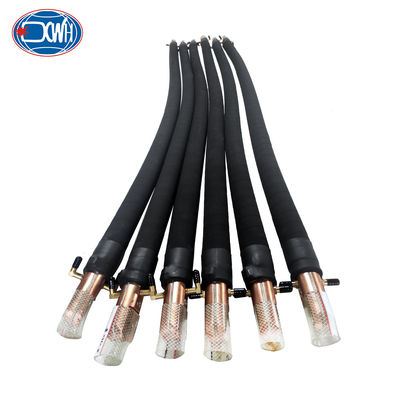

High Duty Different Types Of Kickless Cables For Suspension Spot Welder
Parameter
| Item Specifiction | 300mm² | 400mm² | Note | |
| Impedance | 2.0M | 480±15μΩ | 358±15μΩ | |
| 2.4M | 593±15μΩ | 445±15μΩ | ||
| Dc impedance value | 2.0M | 475μΩ | 355μΩ | |
| 2.4M | 587μΩ | 440μΩ | ||
| Resistance | 2.0M | 78μΩ | 74μΩ | Calculated Value |
| 2.4M | 82μΩ | 88μΩ | ||
| Power | =0.99 | =0.99 | ||
| Cooling water capacity | 7.0L/MIN | 7.0L/MIN | Pressure Loss of 0.7KG/cm | |
| Temperature rise characteristic | 2.0M | 45℃/5900A | 45℃/6800A | |
| 2.4M | 45℃/5400A | 45℃/6200A | ||
| Weight | 2.0M | 10.4KG | 13.2KG | Average Value |
| 2.4M | 12.2KG | 15.3KG | ||
Features
1. The inner core is made of pure purple copper core, which has low resistance, good conductivity, and is not easy to generate heat.
2. High quality rubber hose is used, which is resistant to high temperature, high pressure, aging and durable.
3. Manufacturing standards: 2 meters, 2.5 meters, 3 meters, 3.5 meters. If it needs to be extended, it can be customized.
Cross Section 300mm²
Cross Section 400mm²
Besides standard models, we can customized according to your requirements. More details, please contact!
Raw Materials: Pure Red Copper
The wire core is made of high-purity copper rods, which overcomes the shortcomings of traditional cable conductors such as fuzzing, breakage, and strand breakage, and achieves low impedance and high power.
Application
