Stationary Spot Welding Machine
Created with Pixso.

Pneumatic AC380V Stationary Spot Welding Machine , 10000N Manual Spot Welder

Pneumatic AC380V Stationary Spot Welding Machine , 10000N Manual Spot Welder

Brand Name: XWH
Model Number: DN-40, DN-63, D(T)N-80, D(T)N-100, D(T)N-125, D(T)N-125, D(T)N-200
MOQ: 1
Price: USD3000-USD5000
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Pneumatic AC Manul Spot Welder Long Arm Welding Machine
Welding Material:
Stainless Steel , Galvanized Steel , Iron
Throat:
Customized
Frequency:
50HZ/60HZ
Rated Capacity:
40KVA-100KVA
Control System:
Microcomputer
Warranty:
One Year
Usage:
Sheet Metal Welding
After-sales Service Provided:
Free Spare Parts, Field Installation, Commissioning And Training
After Warranty Service:
Video Technical Support, Online Support And Spare Parts
Packaging Details:
Wooden Case
Supply Ability:
500 sets/month
Highlight:

10000N manual spot welder

,

10000N stationary spot welding machine

,

AC380V stationary spot welding machine

Product Description
Pneumatic AC Manul Spot Welder Long Arm Welding Machine




Product Introduction:



Stationary type carbon steel resistance ac spot welding machine utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of workpiece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.



We are a professional carbon steel resistance ac spot welding machine manufacturer, the power of the stationary type carbon steel resistance AC spot welding machine and carbon steel ac spot welding machine that we produce is from 25KVA to 800KVA. It can be used to weld 10mm of iron and metals like stainless steel. Low cost ac spot welding machine applicable to all kinds of hardware.







Technical Parameters:



Model Item
DN-40
DN-63
D(T)N-80
D(T)N-100
D(T)N-125
D(T)N-160
D(T)N-200
Rated power At 50%(KVA)
40
63
80
100
125
160
200
Rated primary power(V)
380
380
380
380
380
380
380
Secondary Voltage(V)
5.2
6.7
7.9
8.3
8.6
9.1
10.6
Rated frequency(HZ)
50/60
50/60
50/60
50/60
50/60
50/60
50/60
Max.Short Circuit Current(KA)
14
15
16
18
20
28
34
Max. weld power(KVA)
62
86
170
280
300
330
410
Throat(mm)
500
500
630
630
630
630
630
Max.Froce at electrodes(N)
6000
6000
10000
10000
10000
12000
12000
Working stroke(mm)
20
20
30
40
40
50
50
Cooling Water Consumpion 2.5bar(L/min)
6
6
8
8
8
10
10
Electrodes tlp(mm)
Φ13*45
Φ13*45
Φ16*45
Φ16*45
Φ16*45
Φ20*45
Φ20*45
Arms(mm)
Φ50*150
Φ50*150
Φ80*220
Φ80*220
Φ80*220
Φ80*220
Φ80*220
Projection Clamping Plate(mm)
125*125
125*125
200*200
200*200
200*200
200*200
200*200
Max.Welding Capaciry(mm)
2.5+2.5
3+3
4+4
4.5+4.5
5+5
5+5
6+6







Advantages:



1. The body of the stationary spot welding machine is cast by the thickened steel plate, and the body is stable.



2. The upper and lower electrodes are made of highly conductive materials with auxiliary pressure, which has good welding effect and high efficiency. The internal water cooling system can reduce the welding temperature.



3. Spot welder can store up to 15 groups of welding modes, which can meet the requirements of different workpieces.



4. D(T)N series fixed spot welder can weld plate, nut, steel bar, metal wire, etc.







General Structures:

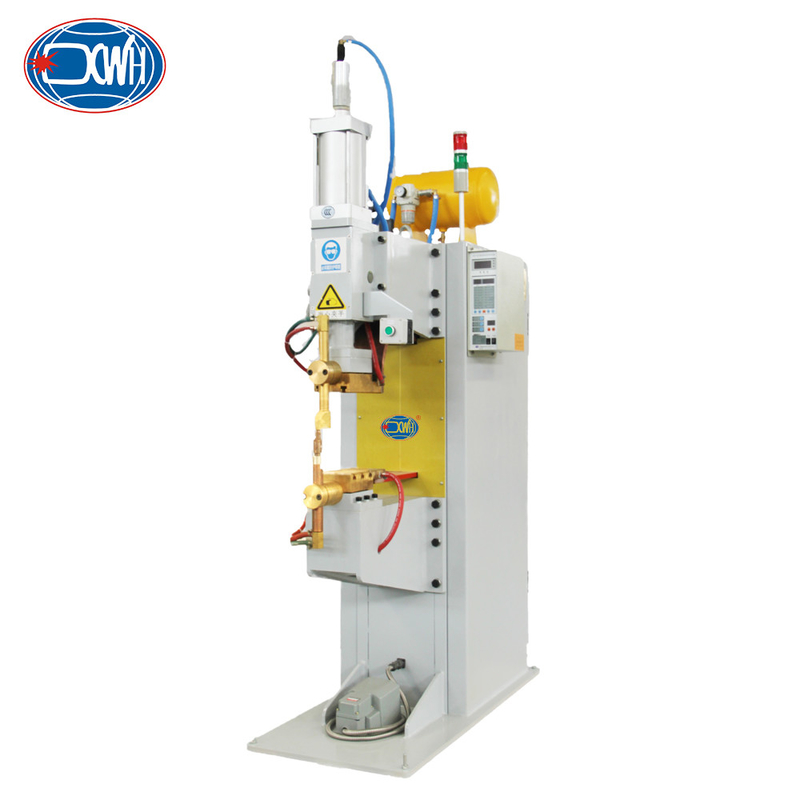

Pneumatic AC380V Stationary Spot Welding Machine , 10000N Manual Spot Welder 0

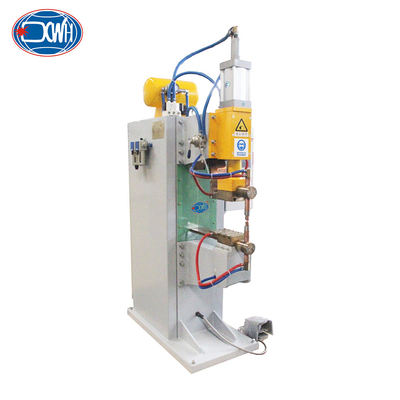

Pneumatic AC380V Stationary Spot Welding Machine , 10000N Manual Spot Welder 1


Scence Images:

Pneumatic AC380V Stationary Spot Welding Machine , 10000N Manual Spot Welder 2

Pneumatic AC380V Stationary Spot Welding Machine , 10000N Manual Spot Welder 3

Pneumatic AC Manul Spot Welder Long Arm Welding Machine can widely used in nut, studs, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.
