| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DTN |
| Minimum Order Quantity: | 1 |
| Price: | USD3000-USD5000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |

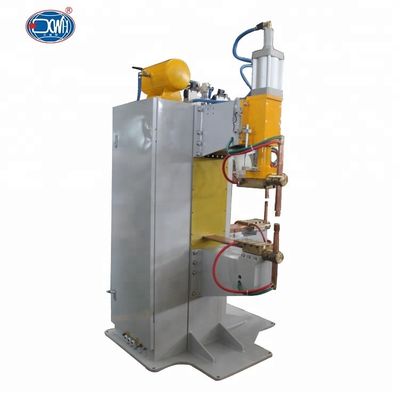

| Product Name: | Resistance Water Refrigerated Spot Welders | Welding Material: | Stainless Steel , Galvanized Steel , Iron |
|---|---|---|---|
| Rated Duty Cycle: | 50% | Frequency: | 50HZ/60HZ |
| Rated Capacity: | 25KVA-400KVA | Welding Head: | Single Head |
| Production Time: | 25-35 Days | Usage: | Spot Welding |
| High Light: | 60kva ss spot welding machine,2500N ss spot welding machine,60kva automobile spot welder |
||
Product
FEATURE
. High quality and high efficiency welding power,power factor up to 98%,3 phase input load balancing
. The fuselage is designed with high quality steel plate and optimized mechanical structure,ensuring stable welding quality
. International famous brand components make the overall quality of the welder reach the first-class level
. Can store 60 sets of welding specifications, Large LCD screen interface,with chinese and english switch disply
Parameter List
|
Item
Model |
DN-25
|
DN-35
|
DN-50
|
DN-75
|
DN-100
|
DN-150
|
DN-200
|
|
Rated capacity KVA
|
25
|
35
|
50
|
75
|
100
|
150
|
200
|
|
Rated Primary voltage
V |
380
|
380
|
380
|
380
|
380
|
380
|
380
|
|
Rated frequency
Hz |
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
|
Maximum welding input
KVA |
38
|
54
|
70
|
146
|
216
|
340
|
450
|
|
Rated duty cycle
% |
50
|
50
|
50
|
50
|
50
|
50
|
50
|
|
Arm length
mm |
340
|
380
|
380
|
380
|
380
|
450
|
450
|
|
Maximun compression
N |
2500
|
4700
|
4700
|
7300
|
7300
|
12000
|
12000
|
|
Electrode stroke
mm |
60
|
80
|
80
|
80
|
80
|
100
|
100
|
|
Welding capability
Low carbon steel mm |
2.0+2.0
|
2.5+2.5
|
3.0+3.0
|
4.0+4.0
|
4.5+4.5
|
5.0+5.0
|
6.0+6.0
|
