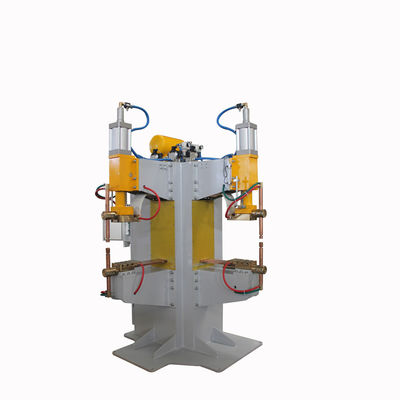

Air Cylinders 12KN Stationary Spot Welding Machine SMC Frequency Inverter
Brand Name:
XWH
Model Number:
DTN
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
1
Price:
USD3000-USD5000
Supply Ability:
500 sets/month
Delivery Time:
15 working days
Inquiry Now
Get A Quote
Specifications
Highlight Features
12KN stationary spot welding machine
,air cylinders stationary spot welding machine
,smc frequency inverter spot welder
Product Name:
Resistance Water Refrigerated Spot Welders
Welding Material:
Stainless Steel , Galvanized Steel , Iron
Rated Duty Cycle:
50%
Frequency:
50HZ/60HZ
Rated Capacity:
25KVA-400KVA
Welding Head:
Single Head
Production Time:
25-35 Days
Usage:
Spot Welding
Product Description
DN stationary frequency inverter smc air cylinders resistance spot stud welder
Product
FEATURE
This type of AC spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the workpieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.
Parameter List
|
Item
Model |
DN-25
|
DN-35
|
DN-50
|
DN-75
|
DN-100
|
DN-150
|
DN-200
|
|
Rated capacity KVA
|
25
|
35
|
50
|
75
|
100
|
150
|
200
|
|
Rated Primary voltage
V |
380
|
380
|
380
|
380
|
380
|
380
|
380
|
|
Rated frequency
Hz |
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
|
Maximum welding input
KVA |
38
|
54
|
70
|
146
|
216
|
340
|
450
|
|
Rated duty cycle
% |
50
|
50
|
50
|
50
|
50
|
50
|
50
|
|
Arm length
mm |
340
|
380
|
380
|
380
|
380
|
450
|
450
|
|
Maximun compression
N |
2500
|
4700
|
4700
|
7300
|
7300
|
12000
|
12000
|
|
Electrode stroke
mm |
60
|
80
|
80
|
80
|
80
|
100
|
100
|
|
Welding capability
Low carbon steel mm |
2.0+2.0
|
2.5+2.5
|
3.0+3.0
|
4.0+4.0
|
4.5+4.5
|
5.0+5.0
|
6.0+6.0
|
Why choose this our product?
With this welding product, you can experience many advatages. Pneumatic AC Manul Spot Welder Long Arm Welding Machine can widely used in nut, studs, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.
