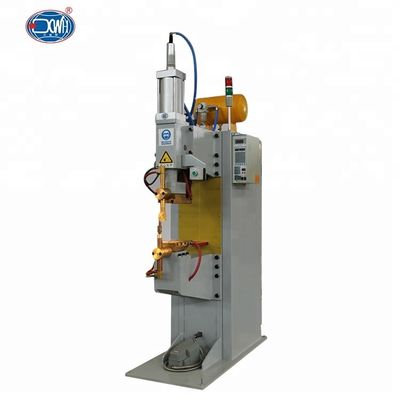

Galvanized Steel Projection Welding Machine , 100KVA Stud Spot Welder

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DTN
Minimum Order Quantity: 1
Price: USD3000-USD5000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Product Name: Resistance Water Refrigerated Spot Welders Welding Material: Stainless Steel , Galvanized Steel , Iron
Rated Duty Cycle: 50% Frequency: 50HZ/60HZ
Rated Capacity: 25KVA-400KVA Welding Head: Single Head
Production Time: 25-35 Days Usage: Spot Welding
High Light:

100KVA projection welding machine

,

100KVA projection welding machine

,

galvanized steel 220V spot welder


Product Description

Resistance Water Refrigerated Spot Welders


Product



FEATURE



This type of AC spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the workpieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.



Parameter List

Item
Model
DN-25
DN-35
DN-50
DN-75
DN-100
DN-150
DN-200
Rated capacity KVA

25

35

50

75

100

150

200
Rated Primary voltage
V

380

380

380

380

380

380

380
Rated frequency
Hz

50/60

50/60

50/60

50/60

50/60

50/60

50/60
Maximum welding input
KVA

38

54

70

146

216

340

450
Rated duty cycle
%

50

50

50

50

50

50

50
Arm length
mm
340
380
380
380
380
450
450
Maximun compression
N

2500

4700

4700

7300

7300

12000

12000
Electrode stroke
mm

60

80

80

80

80

100

100
Welding capability
Low carbon steel
mm


2.0+2.0


2.5+2.5


3.0+3.0


4.0+4.0


4.5+4.5


5.0+5.0


6.0+6.0


Galvanized Steel Projection Welding Machine , 100KVA Stud Spot Welder 0

Galvanized Steel Projection Welding Machine , 100KVA Stud Spot Welder 1
Why choose this our product?

With this welding product, you can experience many advatages. Pneumatic AC Manul Spot Welder Long Arm Welding Machine can widely used in nut, studs, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.
