| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DTN |
| Minimum Order Quantity: | 1 |
| Price: | USD3000-USD5000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |

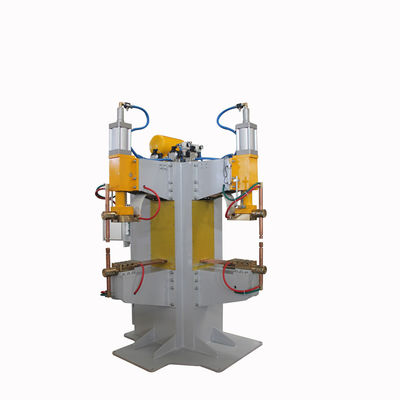

| Product Name: | Resistance Water Refrigerated Spot Welders | Welding Material: | Stainless Steel , Galvanized Steel , Iron |
|---|---|---|---|
| Rated Duty Cycle: | 50% | Frequency: | 50HZ/60HZ |
| Rated Capacity: | 25KVA-400KVA | Welding Head: | Single Head |
| Production Time: | 25-35 Days | Usage: | Spot Welding |
| High Light: | 15KVA stationary spot welding machine,4700N stationary spot welding machine,15KVA 110V spot welder |
||
Product
FEATURE
This type of AC spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the workpieces in molten condition. Thus, the purpose of welding the two work pieces is achieved.
Parameter List
|
Item
Model |
DN-25
|
DN-35
|
DN-50
|
DN-75
|
DN-100
|
DN-150
|
DN-200
|
|
Rated capacity KVA
|
25
|
35
|
50
|
75
|
100
|
150
|
200
|
|
Rated Primary voltage
V |
380
|
380
|
380
|
380
|
380
|
380
|
380
|
|
Rated frequency
Hz |
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
50/60
|
|
Maximum welding input
KVA |
38
|
54
|
70
|
146
|
216
|
340
|
450
|
|
Rated duty cycle
% |
50
|
50
|
50
|
50
|
50
|
50
|
50
|
|
Arm length
mm |
340
|
380
|
380
|
380
|
380
|
450
|
450
|
|
Maximun compression
N |
2500
|
4700
|
4700
|
7300
|
7300
|
12000
|
12000
|
|
Electrode stroke
mm |
60
|
80
|
80
|
80
|
80
|
100
|
100
|
|
Welding capability
Low carbon steel mm |
2.0+2.0
|
2.5+2.5
|
3.0+3.0
|
4.0+4.0
|
4.5+4.5
|
5.0+5.0
|
6.0+6.0
|
