ISO Resistance Welding Electrode Material , C17200 Wire Welding Tips

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: XW
Minimum Order Quantity: 1
Price: USD1-USD10
Packaging Details: Wooden Case
Delivery Time: 7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 sets/month
Detail Information
Product Name: Resistance Spot Welding Electrode Welding Wire Tips For Sale Packing: 50pcs//box
Usage: Spot Welding Customized Support: OEM
Material: CuCrZr, CuBe2, Or According To Requirements Package: Customers' Requirement
Place Of Origin: Sichuan Of China Color: Copper
High Light:

C17200 wire welding tips

,

C17200 resistance welding electrode material

,

ISO resistance welding electrode material


Product Description

Resistance Spot Welding Electrode Welding Wire Tips for Sale

Product Display

Samples
Provided, please contact us.
OEM
Accept Customized
Product Name
Welding Electrode Cap
Material
CuCrZr, CuBe2, or According to requirements
Material no. UNS (ASTM)
C18150, C17200, or According to requirements
Material description
Age hardenable Cu alloy with high electrical and thermal conductivity under a high degree of hardness and strength.
Size
According to customer's requirements
Application
Spot Welding

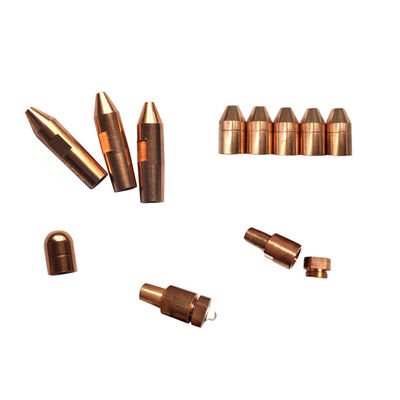

ISO Resistance Welding Electrode Material , C17200 Wire Welding Tips 0

Types of Welding Electrode Cap
Pointed
Tapered from the full-diameter electrode shank to required size and with a flat surface, holds its shape well, but is difficult to dress in the machine unless a dressing tool of the exact taper is provided
Flat
Employs the full shank or stock size at the welding surface
Dome
Used for less precise work where easy dressing is of advantage. the dome shape provides a greater approach to the flat surface of the work
Offset
Used to make a spot weld closer to a vertical wall that is possible with a straight tip. the offset of the tip should be as slight as possible, as the electrode force or the compression load at the center line of the electrode axis will tend to cause bending of the tip. since the tendency of the electrode is to skid or deflect as the offset distance from the center of the electrode axis
increases, offset tips should not be used except when required.
Radius
Used for the welding of aluminum and for many other precise applications because of the superior results to be obtained. the spherical surface is easier to clean without removing from the machine, will withstand higher pressures with less deformation and is more readily aligned in the holders.

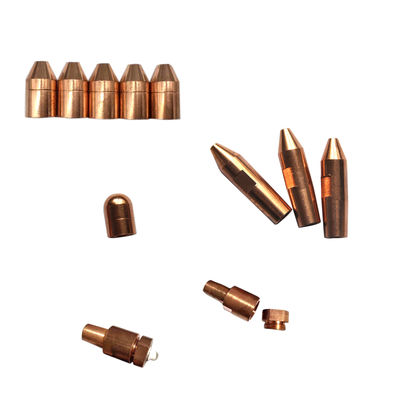

ISO Resistance Welding Electrode Material , C17200 Wire Welding Tips 1

Company Information

ISO Resistance Welding Electrode Material , C17200 Wire Welding Tips 2


Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
