| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | XW |
| Minimum Order Quantity: | 1 |
| Price: | USD1-USD10 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 sets/month |
| Product Name: | Resistance Spot Welding Electrode Welding Wire Tips For Sale | Packing: | 50pcs//box |
|---|---|---|---|
| Usage: | Spot Welding | Customized Support: | OEM |
| Material: | CuCrZr, CuBe2, Or According To Requirements | Package: | Customers' Requirement |
| Place Of Origin: | Sichuan Of China | Color: | Copper |
| High Light: | thermal conductive resistance welding electrodes,spot welding copper electrodes C18150,thermal conductive spot welding copper electrodes |
||
|
Samples
|
Provided, please contact us.
|
|
OEM
|
Accept Customization
|
|

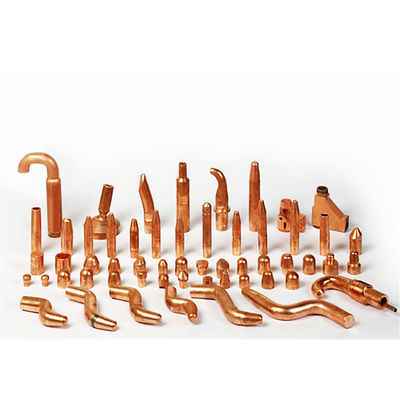

Product Name
|
Welding Electrode Cap
|
|
Material
|
CuCrZr, CuBe2, or according to requirements
|
|
Material no. UNS (ASTM)
|
C18150, C17200, or According to requirements
|
|
Material description
|
Age hardenable Cu alloy with high electrical and thermal conductivity under a high degree of hardness and strength.
|
|
Size
|
According to customer's requirements
|
|
Application
|
Spot Welding
|
|
Pointed
|
Tapered from the full-diameter electrode shank to required size and with a flat surface, holds its shape well, but it is difficult to dress in the machine unless a dressing tool of the exact taper is provided
|
|
Flat
|
Employs the full shank or stock size at the welding surface
|
|
Dome
|
Used for less precise work where easy dressing is of advantage. The dome shape provides a greater approach to the flat surface of the work
|
|
Offset
|
Used to make a spot weld closer to a vertical wall that is possible with a straight tip. The offset of the tip should be as slight as possible, as the electrode force or the compression load at the center line of the electrode axis will tend to cause bending of the tip. since the tendency of the electrode is to skid or deflect as the offset distance from the center of the electrode axis
increases, offset tips should not be used except when required. |
|
Radius
|
Used for the welding of aluminum and for many other precise applications because of the superior results to be obtained. The spherical surface is easier to clean without removing from the machine and will withstand higher pressures with less deformation and is more readily aligned in the holders.
|
