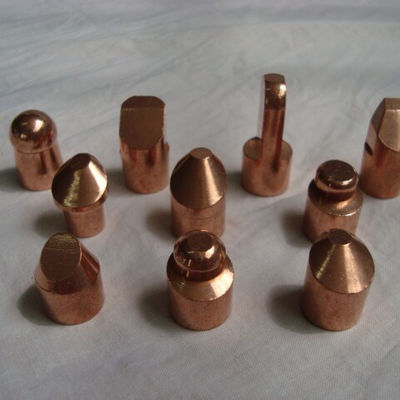

CuBe2 170HB Spot Welding Copper Electrodes Tips R.W.M.A Class 3
Brand Name:
XWH
Model Number:
XW
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
1
Price:
USD1-USD10
Supply Ability:
10000 sets/month
Delivery Time:
7 working days
Inquiry Now
Get A Quote
Specifications
Highlight Features
CuBe2 spot welding copper electrodes
,170HB spot welding copper electrodes
,170HB spot welding tips
Product Name:
CuBe2 Material Copper Alloy Electrodes Cap Tips For Spot Welding
Packing:
50pcs//box
Standard:
R.W.M.A Class 2, 3, 4
Shape:
OEM
Material:
CuCrZr
Certification:
CCC
Product Description
CuBe2 Material Copper Alloy Electrodes Cap Tips For Spot Welding
Product Introduction
|
Product Name
|
CuBe2 Material Copper Alloy Electrodes Cap Tips For Spot Welding |
|
Material
|
CuCrZr CuBe2 etc.
|
|
Material no. UNS (ASTM)
|
C18150 C17200 C17500
|
|
Material description
|
Age hardenable Cu alloy with high electrical and thermal conductivity under a very high degree of hardness and strength.
|
|
Standard
|
R.W.M.A Class 2, 3
|
|
Hardness
|
135-170 HB 10/2,5
|
|
Electrical conductivity
|
min. 80% IACS MS/m
|
|
Softening temperature
|
min 480℃
|
|
Size
|
According to customer's requirements
|
|
Application
|
Spot welding
|
We can also produce CUSTOM MADE WELDING ELECTRODE CAPs according to your requirements.
