Hanging 80kg Industrial Spring Balancer , CE Spring Load Balancer

Hanging 80kg Industrial Spring Balancer , CE Spring Load Balancer

Brand Name: XWH
Model Number: XW
MOQ: 1
Price: USD30-USD150
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
30kg 40kg 50kg 60kg 80kg 100kg 120kg Spring Load Balancer Hanging Balancer 1.5M Stroke
Usage:
Production
Warranty:
1 Year
Size:
600mm
Keyword:
Spring Balancer
Advantage:
Easy Operate Low Investment
Length:
1.5m
MOQ:
50 Sets
Packaging Details:
Wooden Case
Supply Ability:
1000 sets/month
Highlight:

CE spring load balancer

,

80kg industrial spring balancer

,

CE industrial spring balancer

Product Description
30kg 40kg 50kg 60kg 80kg 100kg 120kg spring load balancer hanging balancer 1.5M stroke

Product Display


Spring Balancer is a kind of accessorial tool special for suspending electrical machine, which can balance with weight of tools, and achieve modern and civilized production. It has been widely used for welding product lines of vehicle body, rivet lines, and assembly line of engine, motorcycles and home appliances where the tools must be hung. It'll be the ideal choice to reduce the labour intensity and increase the productivity.

capacity range:1,3,5,9,15,22,30,40,50,60,70,80,100,120,140,160,180,200kgs


Models
Loading Capcity(Kg)
Stroke(m)
Rope Dia.(mm)
Weight(kg)
XW-0.5
0.5-1.5
1.0
3.0
0.5
XW1-3
1.5-3.0
1.3
3.0
1.9
XW3-5
3.0-5.0
1.3
3.0
2.1
XW5-9
5.0-9.0
1.5
3.0
3.5
XW9-15
9.0-15.0
1.5
4.0
3.8
XW15-22
15.0-22.0
1.5
4.76
7.3
XW22-30
22.0-30.0
1.5
4.76
7.7
XW30-40
30.0-40.0
1.5
4.76
9.7
XW40-50
40.0-50.0
1.5
4.76
10.1
XW50-60
50.0-60.0
1.5
4.76
11.1
XW60-70
60.0-70.0
1.5
4.76
11.4
XW70-80
70.0-80.0
1.5
4.76
22.0
XW80-100
80.0-100.0
1.5
4.76
24.0
XW100-120
100.0-120.0
1.5
4.76
28.0
XW120-140
120.0-140.0
1.5
6.0
24.1
XW140-160
140.0-160.0
1.5
6.0
28.7

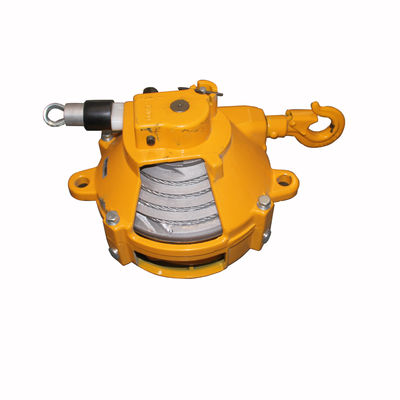

Hanging 80kg Industrial Spring Balancer , CE Spring Load Balancer 0

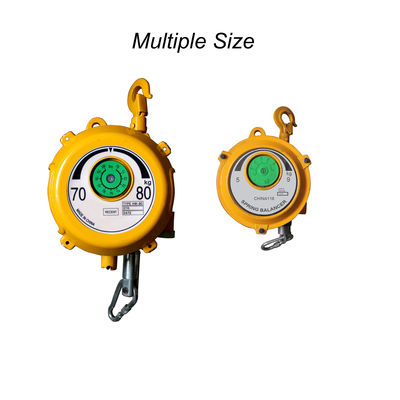

Hanging 80kg Industrial Spring Balancer , CE Spring Load Balancer 1
XW series spring balancer is widely used in automobiles, tractors, appliances and machinery manufacturing and other fields. When the tool is heavy, requiring frequent work up and down, the spring balancer can greatly reduce labor intensity.
Hanging 80kg Industrial Spring Balancer , CE Spring Load Balancer 2
