Stationary Spot Welding Machine
Created with Pixso.

Inverter DC 50HZ Stationary Spot Welding Machine For Stainless Steel

Inverter DC 50HZ Stationary Spot Welding Machine For Stainless Steel

Brand Name: XWH
Model Number: XW
MOQ: 1
Price: $4800.00 - $11000.00
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Month
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Assembly Line Automatic Tube Spot Welding Machine Stationary Spot Welding Machine
Frequency:
50HZ/60HZ
Rated Capacity::
160/200/250
Welding Time:
0.1-1S
Related Industry::
Stainless Steel Product
Welding Mode::
Inverter DC
Machinery Test Repo:
Provided
Size:
450mm
Packaging Details:
Wooden Case
Supply Ability:
500 Set/Sets per Month
Highlight:

Inverter DC stationary spot welding machine

,

50HZ stationary spot welding machine

,

50HZ stainless steel spot welding machine

Product Description




 Assembly Line Automatic Tube Spot Welding Machine Stationary Spot Welding Machine





FEATURE



This type of AC spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces.



Parameter List



Item
Model
DN-25 DN-35 DN-50 DN-75 DN-100 DN-150 DN-200
Rated capacity KVA

25

35

50

75

100

150

200
Rated Primary voltage
V

380

380

380

380

380

380

380
Rated frequency
Hz

50/60

50/60

50/60

50/60

50/60

50/60

50/60
Maximum welding input
KVA

38

54

70

146

216

340

450
Rated duty cycle
%

50

50

50

50

50

50

50
Arm length
mm
340 380 380 380 380 450 450
Maximun compression
N

2500

4700

4700

7300

7300

12000

12000
Electrode stroke
mm

60

80

80

80

80

100

100
Welding capability
Low carbon steel
mm


2.0+2.0


2.5+2.5


3.0+3.0


4.0+4.0


4.5+4.5


5.0+5.0


6.0+6.0

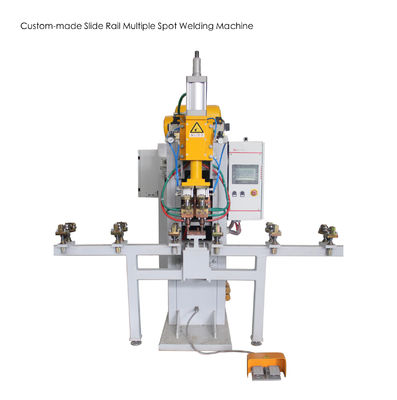

Inverter DC 50HZ Stationary Spot Welding Machine For Stainless Steel 0

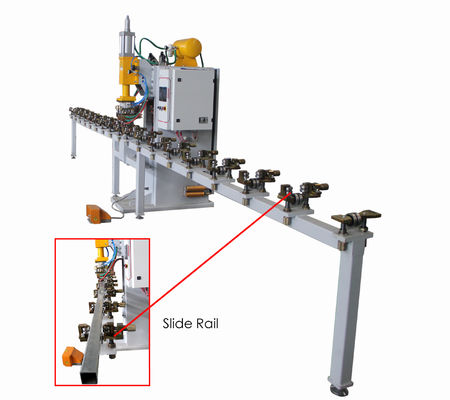

Inverter DC 50HZ Stationary Spot Welding Machine For Stainless Steel 1
Inverter DC 50HZ Stationary Spot Welding Machine For Stainless Steel 2
Inverter DC 50HZ Stationary Spot Welding Machine For Stainless Steel 3
Inverter DC 50HZ Stationary Spot Welding Machine For Stainless Steel 4
Inverter DC 50HZ Stationary Spot Welding Machine For Stainless Steel 5
