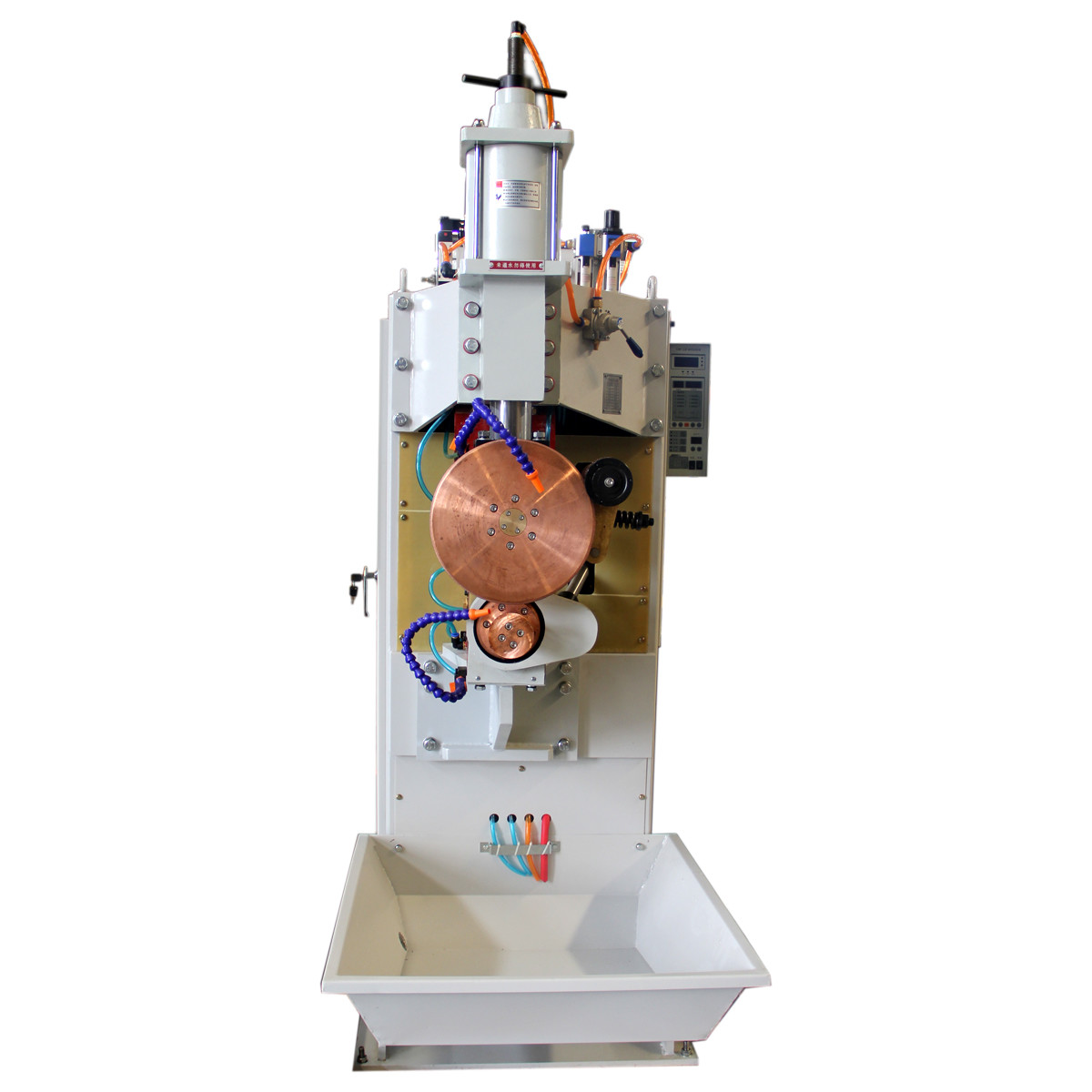

160KVA Stainless Steel Seam Welding Machine Automatic Rolling

Seam welding machine refers to a resistance welding machine in which the weldment is assembled into a lap or butt joint and placed between two roller electrodes. The roller electrode presses the weldment and rotates, continuously or intermittently pulses power to form a continuous weld. . It can also be said that the seam welding machine is an evolution of spot welding. Seam welding is widely used in the manufacture of joints that require tightness, and is sometimes used to weld ordinary non-sealed sheet metal parts. The thickness of the welded metal material is usually 0.1~2.5mm



models Item	额定容量Rated power	输入电压Voltage input	额定频率Frequency	最大短路电流Max short circuit current	电极行程Working stroke	焊接速度Welding efficiency	电极压力Max force	焊接能力Max welding capacity	电动机功率Motor power
Unit	KVA	V	Hz	KA	MM	0.7-3.9	N	MM	W
FN-80-H	80	380	50	26	100	0.7-3.9	6000	1.2+1.2	550
FN-100-H	100	380	50	30	100	0.7-3.9	6000	1.5+1.5	750
FN-160-H	160	380	50	40	100	0.7-3.9	7800	2.0+2.0	750
FN-100-E	100	380	50	30	100	0.7-3.9	6000	1.5+1.5	750
FN-160-E	160	380	50	40	100	0.7-3.9	7800	2.0+2.0	400











Company Profie

Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in 2003 and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
