| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | XW |
| Minimum Order Quantity: | 5 |
| Price: | USD50-USD80 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Secondary Cables | Application: | Industrial Welding Accessory |
|---|---|---|---|
| Insulation: | Rubber Insulation | Material: | Red Copper |
| Standard Diameter: | 150mm²/200mm² | Type: | Water-cooled |
| Feature: | Low Impedance | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | Certification: | CE, |
| Highlight: | 1M Water Cooled Kickless Cable,Suspension Spot Welder Aid Cables,Aid Cables 1M |
||

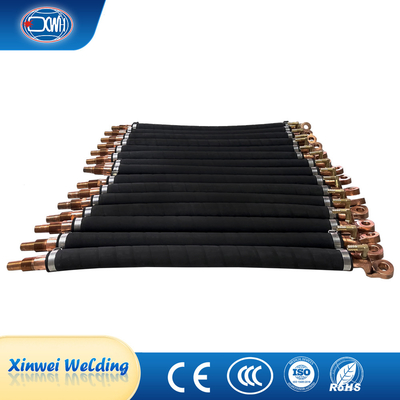

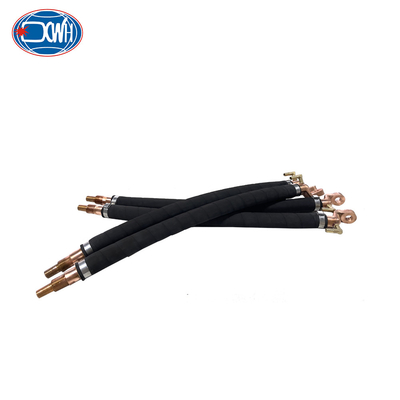

Long Life Aid Cables 1M Water Cooled Secondary Cable For Suspension Spot Welder
Aid cables, is a hollow specialized cable used for high current heating equipment, can be divided into kickless cables and secondary cables. Mainly used for hanging type spot welding machines or suspension spot welding machines. Mainly used for hanging type spot welding machines or suspension spot welding machines.
Parameter
|
Item/Cross Section
|
150 mm²
|
200mm²
|
|
Length
|
0.6m-1.2m
|
|
|
Materials
|
Red Copper+Rubber
|
|
|
Customization
|
Yes
|
|
Features
1.High-quality copper wire, making the least electrical impedance between the transformer output and welding gun.
2.Great flexibility during the work.
3.Smallest water pressure drop and good cooling effect.
4.The pouches and plum plastic core against the pressure, heat and abrasive, with maximum torsion flexion performance.
5. lowest magnetic induction impact.
6. Long life span and economic.
Cross Section 150mm²
Cross Section 200mm²
Besides standard models, we can customized according to your requirements. More details, please contact!
Raw Materials: Pure Red Copper
Compare with Brass
Higher conductivity and thermal; conductivity,high ductility and plasticity.
Application
