| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DTN |
| Minimum Order Quantity: | 1 |
| Price: | USD8000-USD9000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Projection Stationary Spot Welding Machine | Welding Material: | Stainless Steel , Galvanized Steel , Iron |
|---|---|---|---|
| Function: | Spot Weldinng | Keyword: | Resistance Spot Welding Equipment |
| Rated Capacity: | 100KVA, 160KVA, 200KVA, 250KVA | MOQ: | 1 Set |
| Max. Welding Thickness: | 6mm+6mm | Advantage: | High Effecient |
| Highlight: | Dc Mfdc Stationary Dot Welding Machine,Auto Body Stationary Dot Welding Machine,Automotive Stationary Spot Welding Machine |
||

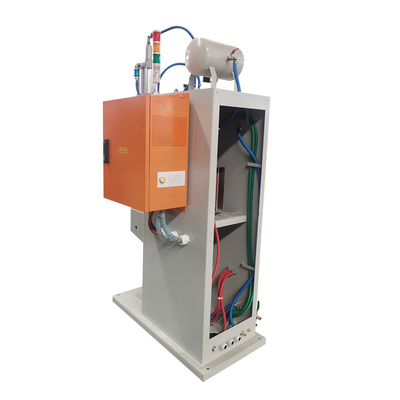

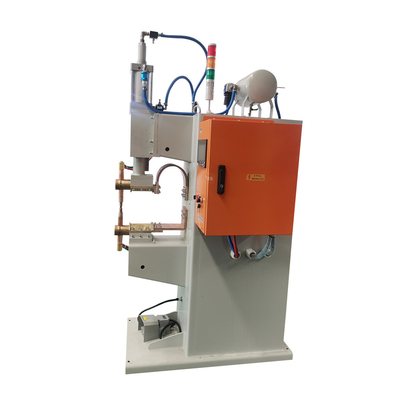

Stationary Spot Welding Machine is working on the 380V/50Hz three-phase AC power supply.By the three-phase rectifier, inverter technology
and the feedback control system, to control the welding heat, pre-press time, the maintenance time and cease time, achieving the welding requirements.
Feature:
1. The body is solid as the stationary spot welding machine is cast by the thickened steel plate, .
2. The upper electrode adopts an adjustable auxiliary stroke to improve the operability and applicability during welding. The upper electrode
guide adopts a linear guide rail with high precision and long service life
3. In order to meet the requirement of kinds of workpiece, the stationary spot welding machine is designed to be able to sore up to 15 welding modes.
Parameter List
| Items Models |
DN(B)-100 |
DN(B)-160 |
DN(B)-200 |
DN(B)-250 |
| Rated power (KVA) |
100 |
160 |
200 |
250 |
| Power input(V) |
3φAC 380V |
3φAC 380V |
3φAC 380V |
3φAC 380V |
| Max. short circuit current (KA) |
30 |
35 |
40 |
45 |
| Duty cycle (%) |
50 |
50 |
50 |
50 |
| Max. force(N) |
6000 |
6000 |
10000 |
15000 |
| Electrode length (mm) |
450 |
450 |
450 |
500 |
| Working stroke (mm) |
80 |
80 |
80 |
80 |
| Cooling consumption (L/min) |
20 |
20 |
20 |
20 |
| Max. welding capacity (mm) |
3.0+3.0 |
4.0+4.0 |
5.0+5.0 |
6.0+6.0 |
