| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DTN |
| Minimum Order Quantity: | 1 |
| Price: | USD8000-USD9000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Resistance Projection Stationary Spot Welding Machine | Welding Material: | Stainless Steel , Galvanized Steel , Iron |
|---|---|---|---|
| Application: | Resistance Spot Welding | Function: | Sheet Metal Spot Welding |
| Rated Capacity: | 100KVA, 160KVA, 200KVA, 250KVA | MOQ: | 1 Set |
| Max. Welding Thickness: | 6mm+6mm | Weight: | 200kg-500kg |
| High Light: | Pneumatic Stationary Spot Welding Machine,Inverter Stationary Spot Welding Machine,160KVA Stainless Steel Spot Welding Machine |
||

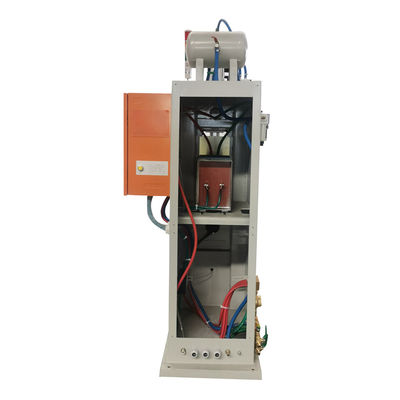

Stationary Spot Welding Machine is working on the 380V/50Hz three-phase AC power supply.By the three-phase rectifier, inverter technology
and the feedback control system, to control the welding heat, pre-press time, the maintenance time and cease time, achieving the welding requirements.
Feature:
1. The electrodes adopts highly conductive materials, which brings good welding effect and high efficiency.
2. The operation interface adopts digital tube or liquid crystal display, which is clear, clear and intuitive.
3. It is widely used in welding metal wires, meal plates, steel bar, metal pipe, nut, etc.
Parameter List
| Items Models |
DN(B)-100 |
DN(B)-160 |
DN(B)-200 |
DN(B)-250 |
| Rated power (KVA) |
100 |
160 |
200 |
250 |
| Power input(V) |
3φAC 380V |
3φAC 380V |
3φAC 380V |
3φAC 380V |
| Max. short circuit current (KA) |
30 |
35 |
40 |
45 |
| Duty cycle (%) |
50 |
50 |
50 |
50 |
| Max. force(N) |
6000 |
6000 |
10000 |
15000 |
| Electrode length (mm) |
450 |
450 |
450 |
500 |
| Working stroke (mm) |
80 |
80 |
80 |
80 |
| Cooling consumption (L/min) |
20 |
20 |
20 |
20 |
| Max. welding capacity (mm) |
3.0+3.0 |
4.0+4.0 |
5.0+5.0 |
6.0+6.0 |
