Product Name: | Resistance Projection Stationary Spot Welding Machine | Welding Material: | Stainless Steel , Galvanized Steel , Iron |
---|---|---|---|
Advantage: | Cost Effective | Function: | Wire Welding |
Rated Capacity: | 100KVA, 160KVA, 200KVA, 250KVA | MOQ: | 1 Set |
Max. Welding Thickness: | 6mm+6mm | Weight: | 200kg-500kg |
High Light: | Ss Stationary Spot Welding Machine,Water Cooled Stationary Spot Welding Machine,100KVA Nut Spot Welding Machine |

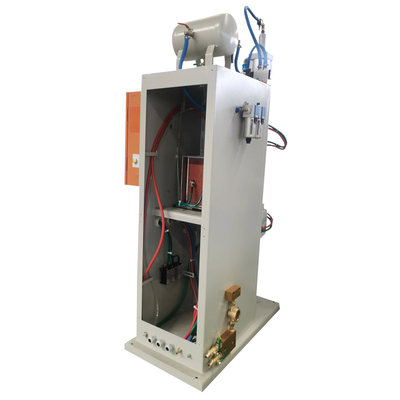

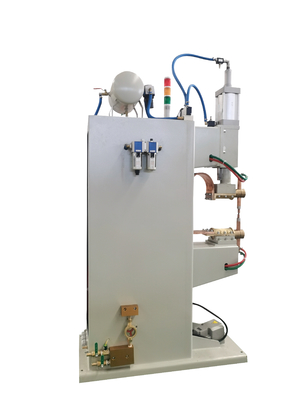

Stationary Spot Welding Machine is working on the 380V/50Hz three-phase AC power supply.By the three-phase rectifier, inverter technology
and the feedback control system, to control the welding heat, pre-press time, the maintenance time and cease time, achieving the welding requirements.
Feature:
1. Designed with thickened steel plate and optimized mechanical structure, ensuring stable welding quality and high efficiency.
2. The operation interface adopts digital tube or liquid crystal display, which is clear, clear and intuitive.
3. Controlled by microcomputer, each welding time and welding current can be easy to operate and accurately adjusted.
Parameter List
Items Models |
DN(B)-100 |
DN(B)-160 |
DN(B)-200 |
DN(B)-250 |
Rated power (KVA) |
100 |
160 |
200 |
250 |
Power input(V) |
3φAC 380V |
3φAC 380V |
3φAC 380V |
3φAC 380V |
Max. short circuit current (KA) |
30 |
35 |
40 |
45 |
Duty cycle (%) |
50 |
50 |
50 |
50 |
Max. force(N) |
6000 |
6000 |
10000 |
15000 |
Electrode length (mm) |
450 |
450 |
450 |
500 |
Working stroke (mm) |
80 |
80 |
80 |
80 |
Cooling consumption (L/min) |
20 |
20 |
20 |
20 |
Max. welding capacity (mm) |
3.0+3.0 |
4.0+4.0 |
5.0+5.0 |
6.0+6.0 |
