Precision Sheet Metal Resistance Pipe Welding Seam Welder Automatic Industrial
Brand Name:
XWH
Model Number:
FN
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
1
Price:
USD6000-USD10000
Supply Ability:
500 sets/month
Delivery Time:
15 working days
Inquiry Now
Get A Quote
Specifications
Highlight Features
Resistance Pipe Welding Seam Welder
,Sheet Metal Seam Welder
,Precision Resistance Seam Welding Machine
Product Name:
Resistance Seam Welding Machine
Key Word:
Fuel Tank Spot Welding Machine
Application:
Solar Water Heater Tank
Warranty:
1 Year
Packaging Type:
Cartons
Function:
Automatic Welding
Welding Mode:
Resistance Welding
Working Mode:
Auto Seam Welder
Product Description

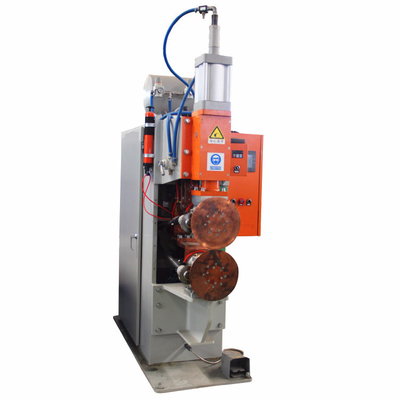

Automatic Precision Industrial Sheet Metal Resistance Pipe Welding Seam Welder

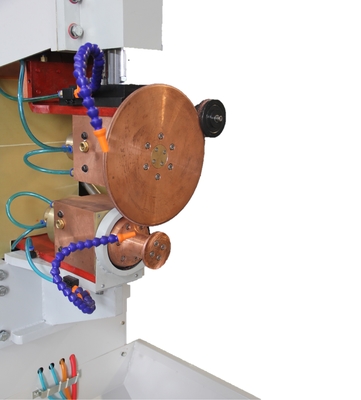

Seam welding machine is a resistance welding machine in which the workpiece is placed between the roller electrode
or between the roller electrode and the strip electrode, continuously or intermittently rolling and intermittent or continuous
application of current, forming a linear weld.
Product Description
|
Model Item
|
Unit
|
FN-80-H
|
FN-100-H
|
FN-160-H
|
FN-100-E
|
FN-160-E
|
|
Rated power |
KVA
|
80
|
100
|
160
|
100
|
160
|
|
Voltage input
|
V
|
380
|
380
|
380
|
380
|
380
|
|
Frequency
|
Hz
|
50
|
50
|
50
|
50
|
50
|
|
Max. short circuit current
|
KA
|
26
|
30
|
40
|
30
|
40
|
|
Working stroke |
mm |
100 |
100
|
100 |
100 |
100
|
|
Welding efficiency
|
m/min
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
0.7-3.9
|
|
Max. force
|
N
|
6000
|
6000
|
7800
|
6000
|
7800
|
|
Max. welding capacity
|
mm
|
1.2+1.2
|
1.5+1.5
|
2.0+2.0
|
1.5+1.5
|
2.0+2.0
|
|
Motor Power |
W
|
550
|
750
|
750
|
750
|
400
|
|
Cooling consumption
|
L/min
|
8
|
8
|
10
|
8
|
10
|
|
Weight
|
Kg
|
380
|
510
|
630
|
530
|
700
|
Features:
1. The welding perfomance is stable and the welding process is very easy to adjust.
2. The seam welder uses the internal cooling while the welding wheel adopts the extenal colling.
3. Two welding modes: horizontal and vertical
Company Information
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
Certifications
Exhibition Pictures
Service
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on.
Transportation Display
